Schneider Electric Frequency inverter ATV12H037M3 0.37 kW 3-phase 200 V, 240 V
EAN:
Part number:
Item no:
Technical specifications
- Communication protocol: Modbus
- Nominal auxiliary voltage [UH,nom]: 200-240 V -15 - +10 %
- Number of digital inputs: 4
- Number of analogue inputs: 1
- Number of analogue outputs: 1
- Number of logic outputs: 2
- Rated clock frequency 4 kHz
- Operating ambient temperature: -10…40 °C upper cover removed on drive; 40…60 °C with current derating at 2.2% per degree
- Engine power (HP): 0.55 HP
- Output rated current: 2.4 A at 4 kHz
- Noise level 0 dB
- Design: With heat sink
- Integrated fan: None
- Starting torque 0.8 Nm
- Input voltage
200 V
240 V
- Product type
Frequency inverter
- Output rating (max.)
0.37 kW
- Max. frequency
400 Hz
- Min. frequency
0.5 Hz
- Network
3-phase
- Frequency range
0.5 Hz - 400 Hz
- Nominal current
3.6 A
- Depth
121.2 mm
- Height
143 mm
- Width
72 mm
IP20
- Type
ATV12H037M3
- Dim
(W x H x D) 72 x 143 x 121.2 mm
- Manufacturer part #
ATV12H037M3
- Weight
0.8 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2374178 Schneider Electric Frequency inverter ATV12H037M3 0.37 kW 3-phase 200 V, 240 V
What kind of Frequency Inverters are you looking for?

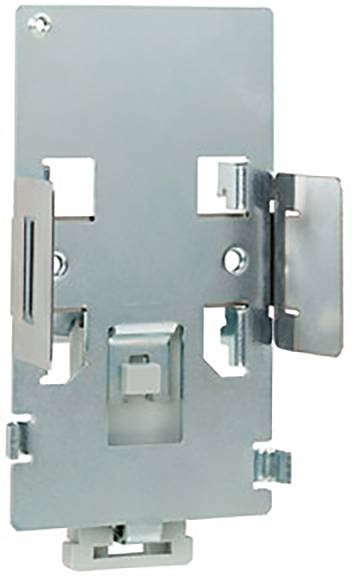

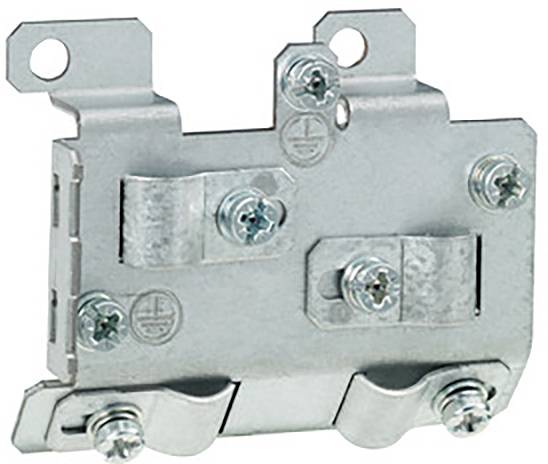

Accessories
