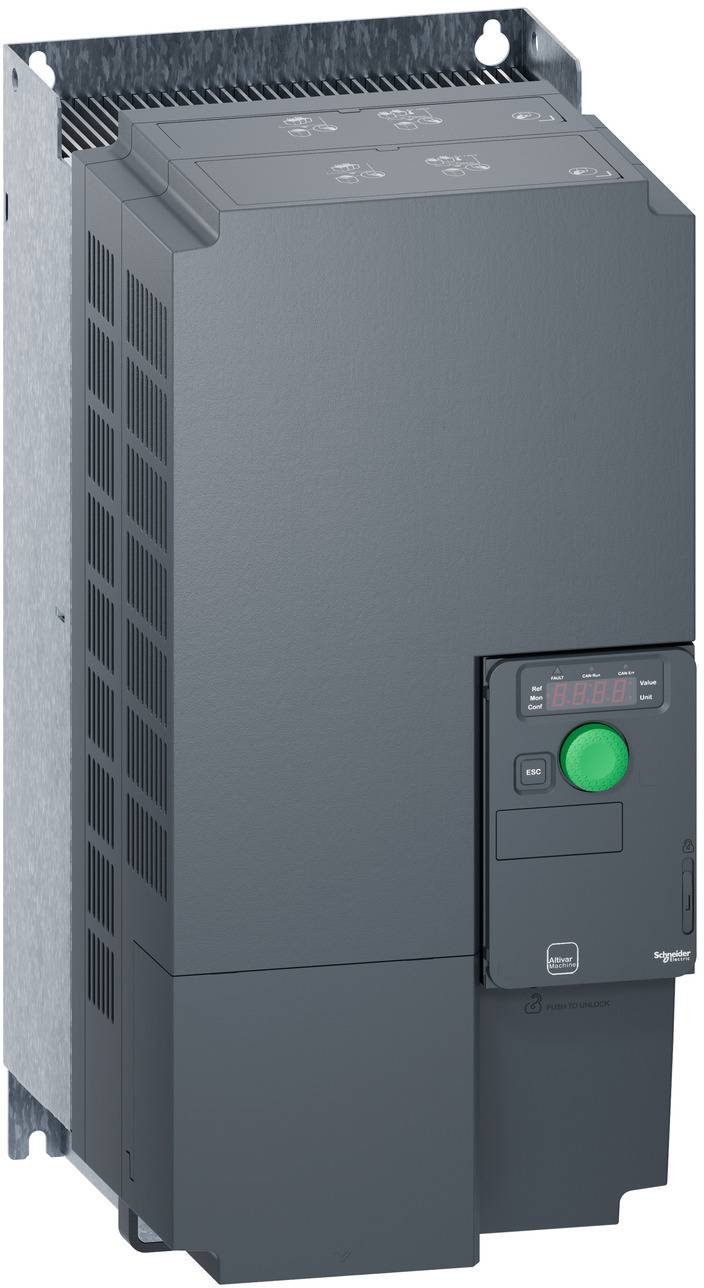

Schneider Electric Frequency inverter ATV320D22N4C 22 kW 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,375.00 / piece)
€ 2,375.00
incl. VAT
14-day return policy included
Technical specifications
- 4-quadrant operation possible: Yes
- Number of analog outputs: 1
- Number of analog inputs: 3
- Number of digital outputs: 3
- Number of digital inputs: 6
- Number of HW interfaces Industrial Ethernet: 0
- Number of HW interfaces in parallel: 0
- Number of HW interfaces serial RS-232: 0
- Number of HW interfaces serial RS-422: 0
- Number of HW interfaces serial RS-485: 1
- Number of HW interfaces serial TTY: 0
- Number of HW interfaces Other: 1
- Number of HW interfaces USB: 0
- Number of PROFINET interfaces: 0
- Type of converter: U-converter
- Output phase number: 3
- Integrated braking chopper: Yes
- Input phase number: 3
- For industrial use: Yes
- Use in the home or commercial sector permitted: No.
- Max. Output output at linear load at rated output voltage: 22 kW
- Max. Power output at square. Load at rated output voltage: 22 kW
- Maximum output frequency: 599 Hz
- Maximum output voltage 550 V
- With control element: Yes
- With optical interface: No.
- With PC connection: Yes
- Rated output current I2N 46 A
- Network frequency: 50~60 Hz
- Mains voltage 380-500 V
- Relative balanced line frequency tolerance: 5%
- Relative symmetrical line voltage tolerance: 10%
- Protection class (NEMA): 1
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for ASI: No.
- Supports protocol for BACnet: No.
- Supports protocol for CAN: Yes
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: Yes
- Supports protocol for DeviceNet Safety: No.
- Supports Ethernet/IP protocol: Yes
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for KNX: No.
- Supports protocol for LON: No.
- Supports protocol for Modbus: Yes
- Supports protocol for PROFIBUS: Yes
- Supports protocol for PROFINET CBA: No.
- Supports protocol for PROFINET IO: Yes
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for SERCOS: No.
- Supports protocol for other bus systems: Yes
- Supports protocol for SUCONET: No.
- Supports protocol for TCP/IP: Yes
- Product type
Frequency inverter
- Output rating (max.)
22 kW
- Network
3-phase
- Depth
229 mm
- Height
390 mm
- Width
180 mm
IP20
- Type
ATV320D22N4C
- Dim
(W x H x D) 180 x 390 x 229 mm
- Manufacturer part #
ATV320D22N4C
- Weight
7.2450 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3754706 Schneider Electric Frequency inverter ATV320D22N4C 22 kW 3-phase
User & Safety Instructions
User & Safety Instructions 3754706 Schneider Electric Frequency inverter ATV320D22N4C 22 kW 3-phase
Description
The Altivar Machine ATV320 range is a range of variable-speed drives developed for original equipment manufacturers (OEMs). Its compact form factor allows the vertical alignment of several drives in machines. It works with a nominal power of up to 22 kW and a nominal voltage of 380 V up to 500 V AC. Its rugged design with class 3C3 coated circuit boards according to IEC 60721-3-3 allows for higher machine availability under harsh environmental conditions. As for example, in ambient temperatures of up to 60°C without the need for additional cooling. It has features suitable for the most common applications, including torque and speed accuracy at very low speeds and high dynamic power with no-sensor flux vector control. It also enables the parallel connection of motors and special drives using the voltage/frequency ratio. Altivar Machine ATV320 meets simple and advanced application requirements in the areas of packaging, material handling, textile, material processing, pumps, fans and lifting operations. Complies with IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line reactors, motor reactors, additional EMC filters) are available for Altivar Machine ATV320 converters. The available accessories and options depend on the converter power. ATV320 is intended for vertical mounting on a panel. It is fully integrated into the Schneider Electric EcoStruxure machine via DTM. ATV320 drives can be configured, controlled and diagnosed directly in the SoMachine and SoMove software using the same software block (DTM). It is environmentally friendly and meets, inter alia, guidelines such as RoHS, REACH, WEEE on environmental protection.
This text is machine translated.
