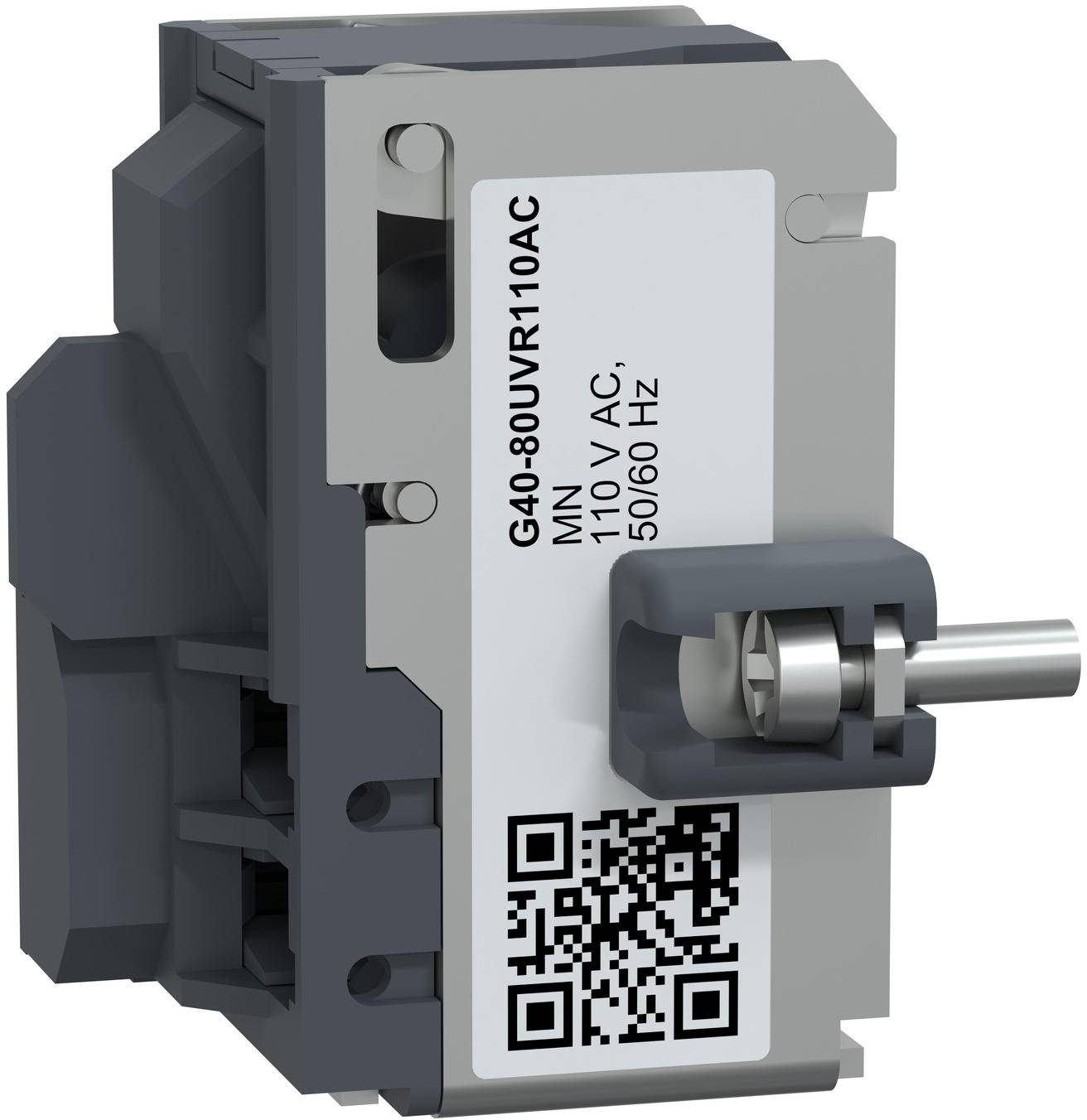

Schneider Electric G40-80UVR110AC G40-80UVR110AC Undervoltage release 1 pc(s)

This electrical aid is an undervoltage release (MN) for the new EasyPact Solar MCCB 400 and 800. EasyCompact Solar MCCB offers good value for money for simple applications and provides reliable electrical protection for your applications. The rated operating voltage Un is 110VAC 50/60Hz. The MN trip unit switches off the circuit breaker when its supply voltage drops below 35% of its rated operating voltage Un. If the supply voltage is between 0.35 and 0.7xUn, an opening is possible, but not guaranteed, there is no opening above 0.7xUn. Activation of the circuit breaker is guaranteed if the actuator supply voltage is above 0.85xUn; switching is not guaranteed below this value. The maximum response time is 18 ms. The power consumption is 3VA at 110VAC 50/60Hz. The EasyCompact Solar MCCB 400 and EasyCompact Solar MCCB 800 are certified according to IEC 60947-1 and IEC 60947-2. The EasyPact Solar MCCB range benefits from the quality assurance of Schneider Electric.
