Name: Schneider Electric KSB400SE4 KS junction box,400A, 3L+N+PE, for NH2 fuses Distribution board accessories 1 pc(s)
Brand: Schneider Electric
SKU: 2928928
Availability: BackOrder

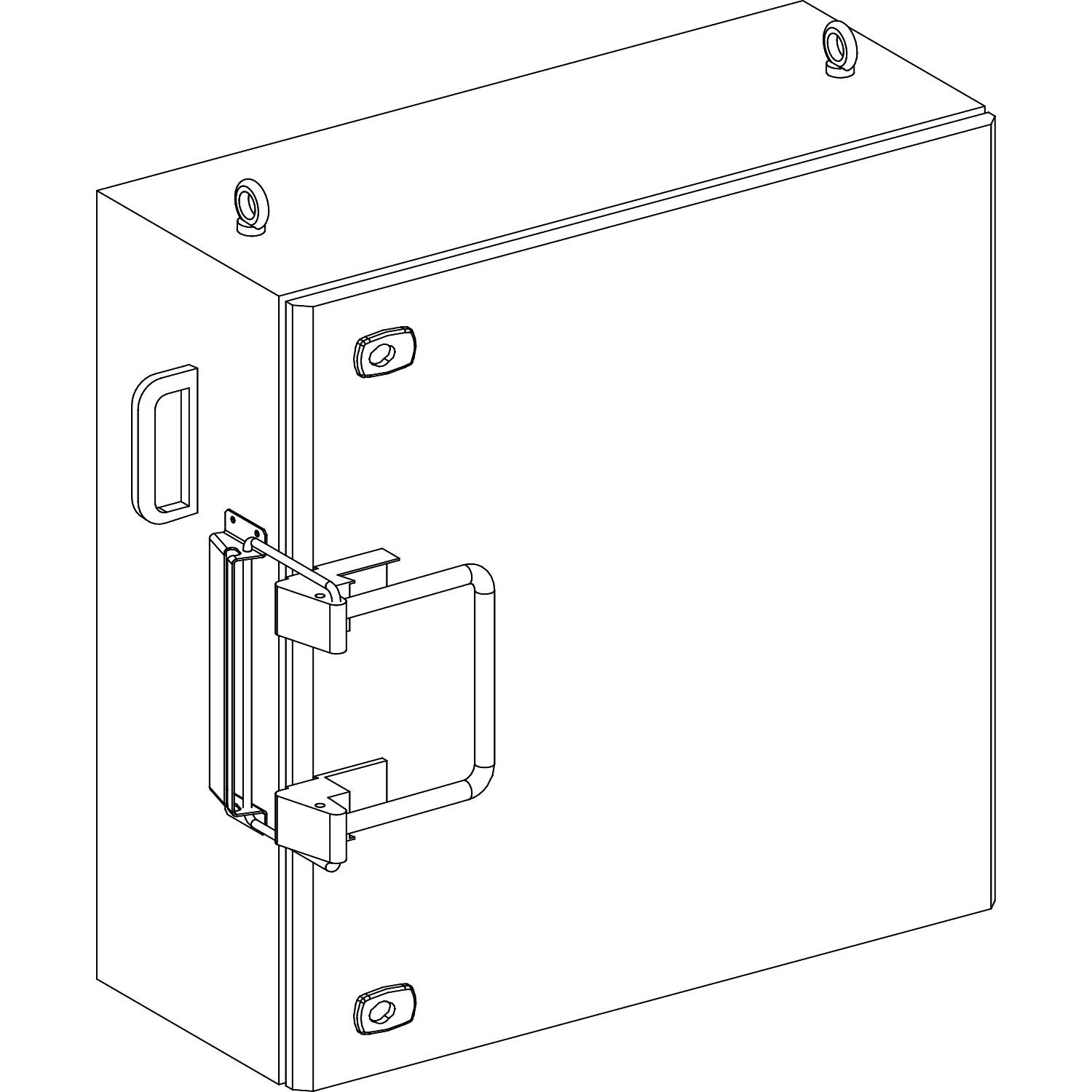

An isometric drawing of a square metal cabinet with hinges and a handle, showing its closed position.

Product type

Distribution board accessories

Content

1 pc(s)

Colour

White

Width

316

Height

600 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed, 13 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,529.00 / piece)

€ 1,529.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Distribution board accessories

Content: 1 pc(s)

: White

: 316

: 600 mm

: 9001

: FALSE

: None

: 4

: FALSE

: 5

: 600 m

: IP55

: 0

: 0

: Pipe in-lead

: Other

: 400 A

: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2928928 Schneider Electric KSB400SE4 KS junction box,400A, 3L+N+PE, for NH2 fuses Distribution board accessories 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2928928 Schneider Electric KSB400SE4 KS junction box,400A, 3L+N+PE, for NH2 fuses Distribution board accessories 1 pc(s)

Information

Information 2928928 Schneider Electric KSB400SE4 KS junction box,400A, 3L+N+PE, for NH2 fuses Distribution board accessories 1 pc(s)

Description

Canalis pickup unit for KT and KS. It is used for medium power distribution and the grounding systems TT, IT and TN-S. The operating voltage ranges from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operating current is 400A at 35 ?. Mounting by plug-in with fixed polarity with white RAL 9001 surface treatment and its busbar polarity is 3L+N+PE. It provides protection for fuses of the size 2 (fuse must be ordered separately). The device can be switched off by opening the door to the right. Canalis KS busbar distributors are compatible with sockets; Canalis KT busbar distributors are compatible with KS type sockets. It offers IP55 protection, which conforms to the standard IEC 60529-2. IK08 is compliant with IEC 62262. It complies with IEC 61439-1 and IEC 61439-6. It also complies with Green Premium (RoHS/REACH).

This text is machine translated.
