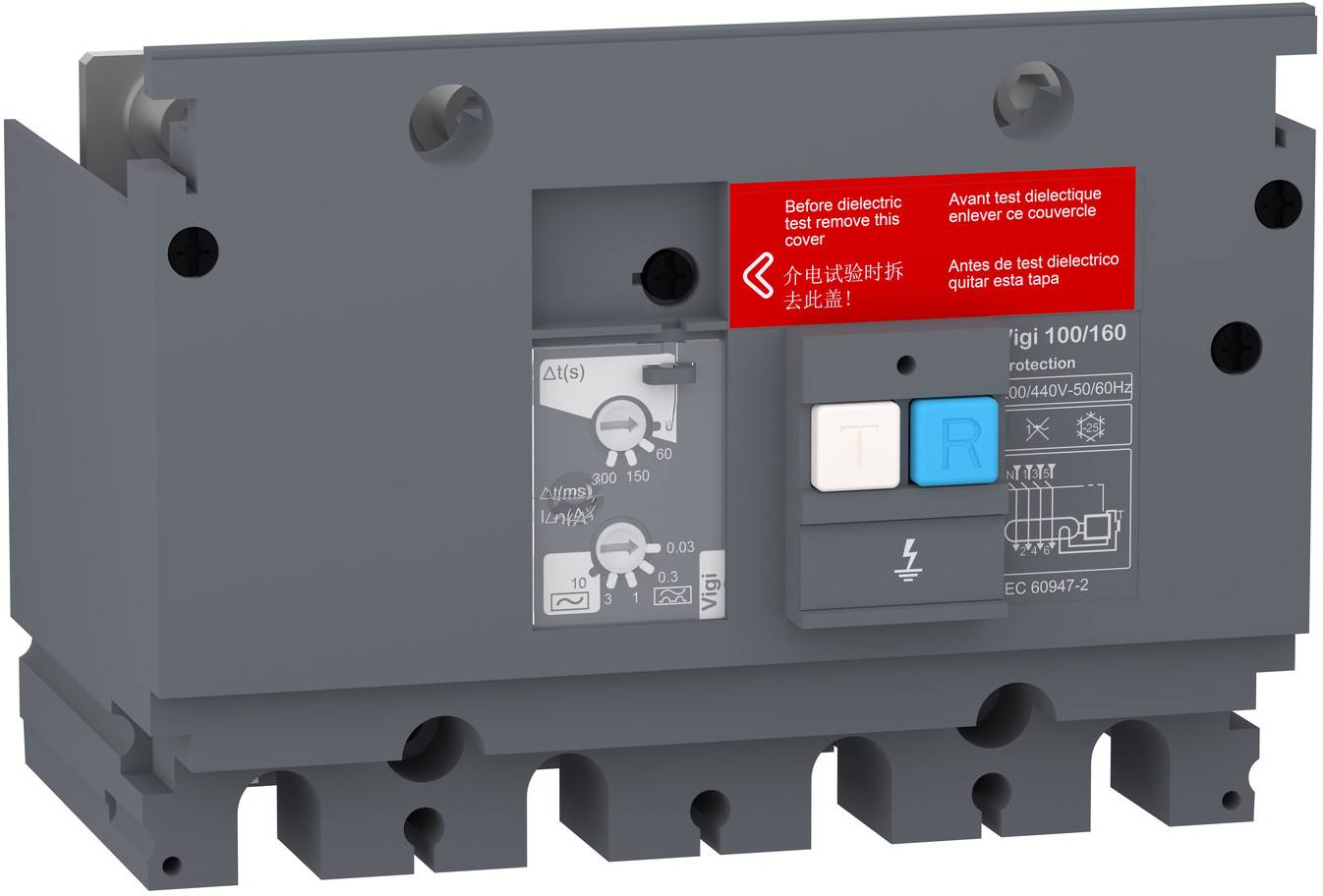

Schneider Electric LV529489 Fault current protection-additional module VigiPACT for EasyPact CVS 100/160, 200VAC to 440V

This is a Vigi add-on module for EasyPact CVS 100/160, which provides ground fault protection. It is used for 4-pole circuit breakers. The rated operating voltage is between 200 and 440 VAC 50/60 Hz. The ground fault sensitivity can be adjusted from 30 mA to 10 A. It is installed directly at the device terminals and triggers the trigger directly in the event of a ground fault. This Vigi add-on module is internally fed by the power supply of the distribution system, even if it is supplied only by 2 phases. It complies with the standard IEC 60947-2, Appendix B.

This text is machine translated.
