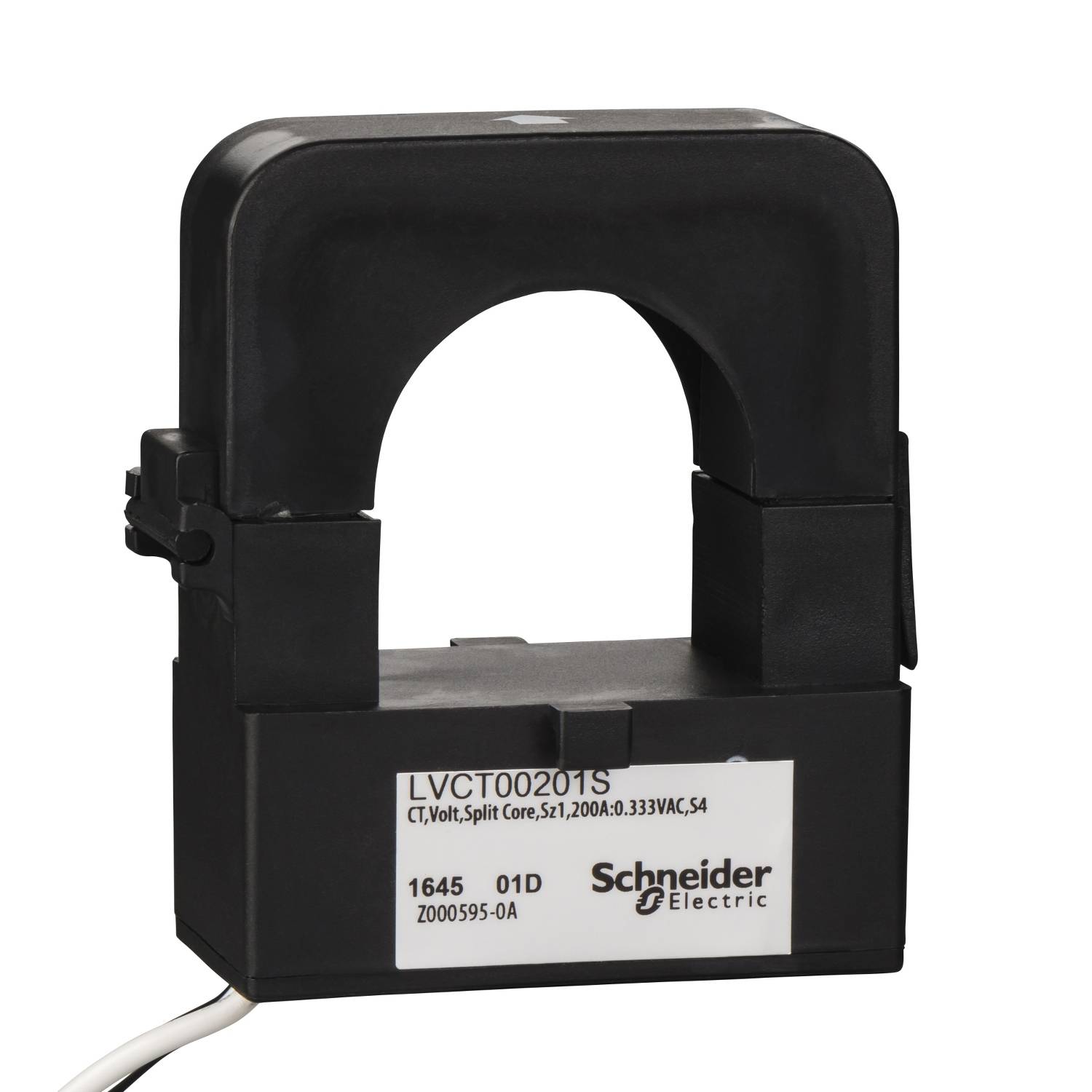

Schneider Electric LVCT00201S Current transformer Primary current 200 A Line feed-through (H x W):32 x 32 mm 1 pc(s)

LVCT cable converter - only for BCPM(-SC) input measurement, PowerLogic EM4235, Acti 9 iEM3455 and iEM3465. Dimensions 71 x 64 x 39 / 64 mm, internal dimensions 32 x 32 mm, rated current_IPN 200 A. cable converter of the type LVCT (low-voltage current transformer with 0.333 V) for primary currents IPN of 50 to 2400 A and secondary signal 0.333 V. Suitable for BCPM and BCPM-SC feed measurement (A/B), Retrofit energy meter iEM3455, iEM3465, retrofit Enercept EM4235. Note for a 3-phase measurement 3 pieces are required (or 4 pieces for N-conductor measurement with EM4235). Accuracy 1% from 10% to 100% IPN. Frequency range 50/60 Hz. Rated insulation voltage 300 V AC (LVCT0xxx0S) or for insulated cables 600 V AC (LVCT0xxx1S/2S/3S/4S). Operating temperature 0ºC to 70ºC (LVCT0xxx0S/1S), 60ºC to 15ºC (LVCT0xxx2S/3S/4S). Length of feed line 1.8 m (extendable to 10 m with 1.0 mm²). Pollution level 2, Measurement category III, Cable length 1.8 m.
