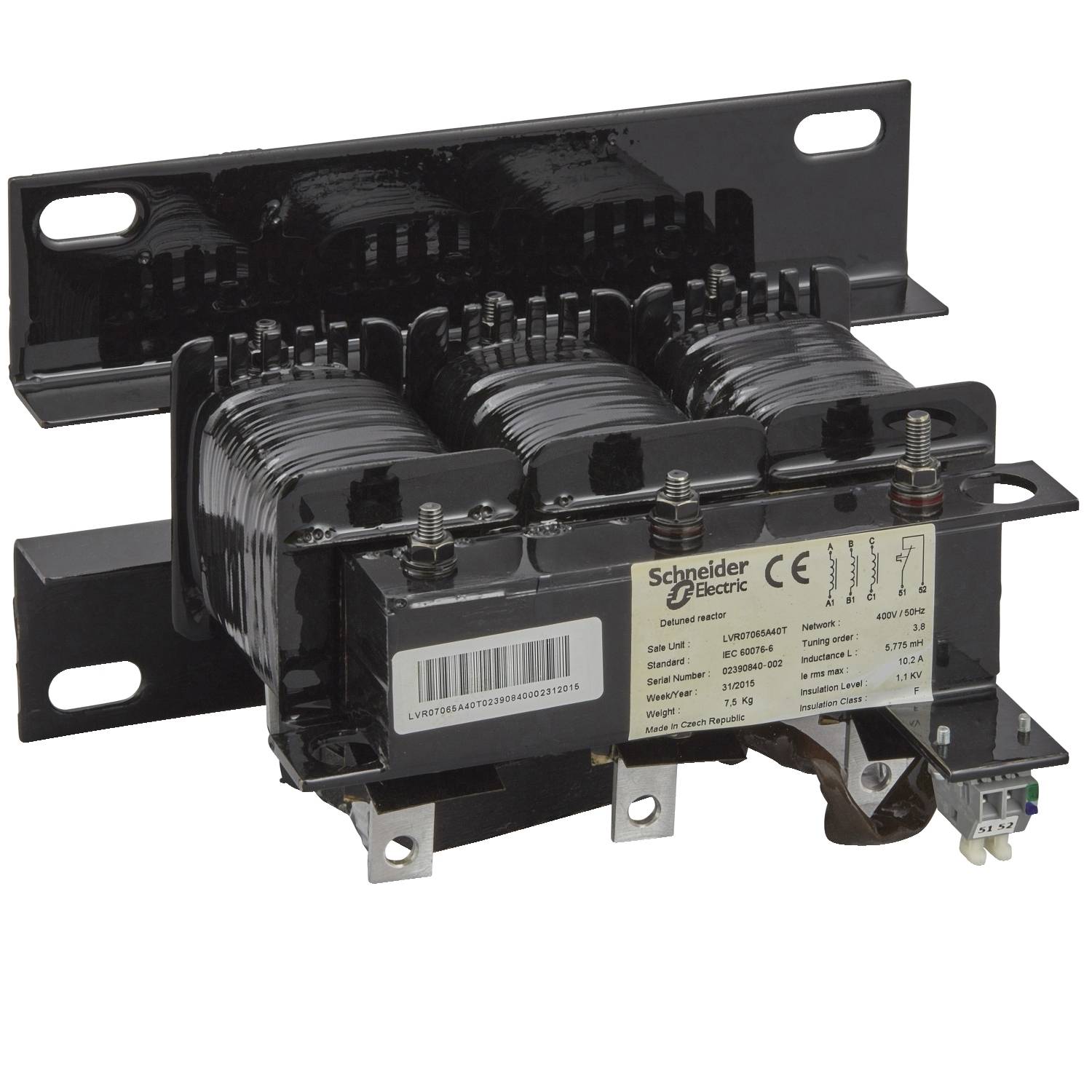

Schneider Electric LVR07065A40T LVR07065A40T Line choke 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line choke
Length
160 mm
Width
240 mm
Height
220 mm
Datasheet (PDF)
Number
Total (€ 836.13 / piece)
€ 836.13
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Line choke
- Length
160 mm
- Width
240 mm
- Height
220 mm
- Weight
7.5 kg
- Content
1 pc(s)
- Dim
(L x W x H) 160 x 240 x 220 mm
- Type
LVR07065A40T
IP00
6.5
400 V
11
3
7
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2927414 Schneider Electric LVR07065A40T LVR07065A40T Line choke 1 pc(s) Piece
Datasheet 2927414 Schneider Electric LVR07065A40T LVR07065A40T Line choke 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2927414 Schneider Electric LVR07065A40T LVR07065A40T Line choke 1 pc(s) Piece
Information
Information 2927414 Schneider Electric LVR07065A40T LVR07065A40T Line choke 1 pc(s) Piece
Information 2927414 Schneider Electric LVR07065A40T LVR07065A40T Line choke 1 pc(s) Piece
Description
The VarPlus throttle coils are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and reactors are configured in the series oscillating circuit. Adjusted so that the serial resonance frequency is below the lowest harmonic frequency in the system. This choke is designed for an output power of 6.5 kVar with a tuning order of 3,8/190 Hz at 400 V alternating voltage and 50 Hz. Relative impedance, 7%. This component complies with the IEC 60068 standards. This component requires forced convection, a fan must be added. The dimensions of the case are 220 mm in height, 240 mm in width and 160 mm in depth. For a product weight of 7.5 kg.
