Name: Schneider Electric NSYDLCR48 Modular frame DLCR type for PanelSet WM steel housing, 48 modules, H500xW400 Frame 1 pc(s)
Brand: Schneider Electric
SKU: 3755679
Availability: BackOrder

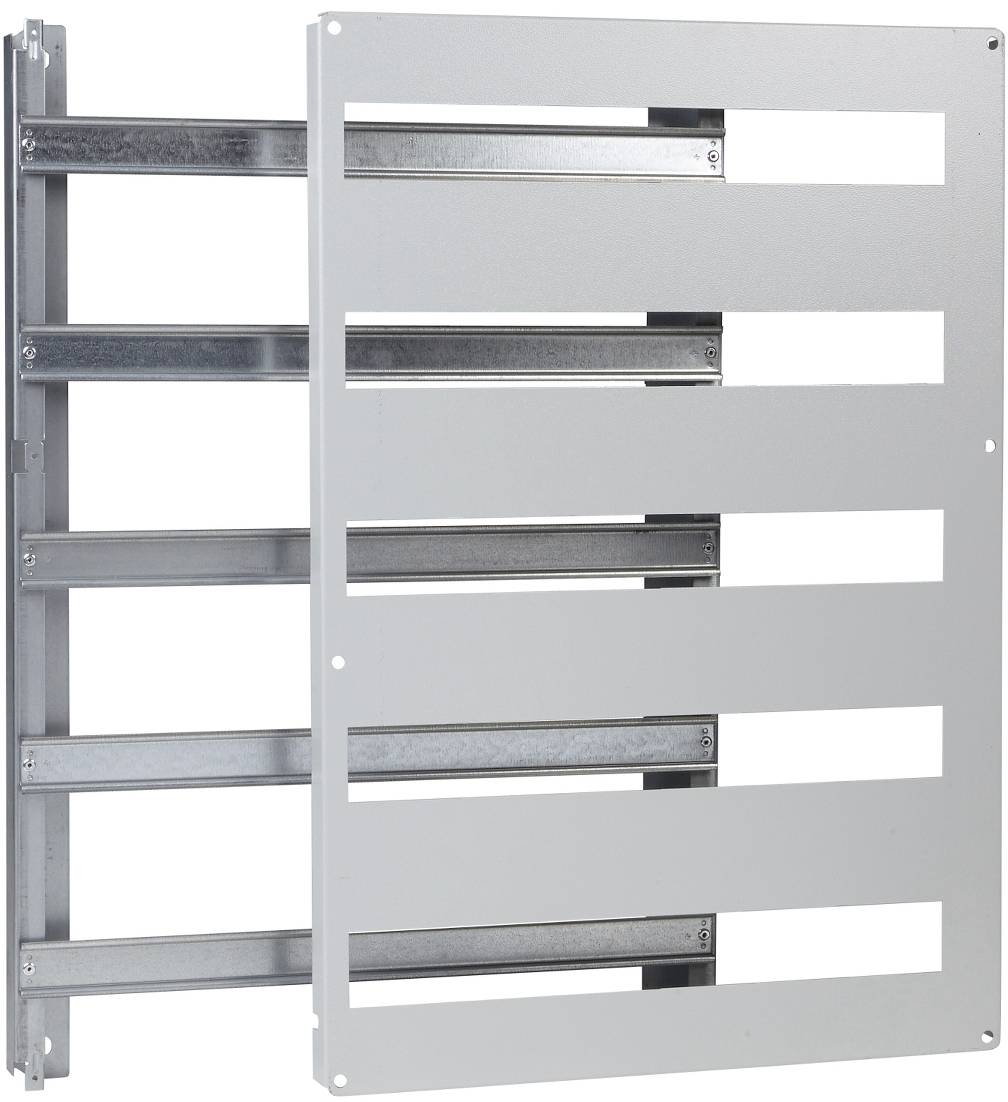

Metal sliding rack panel with five horizontal slots mounted on a steel frame, shown front and side views on a white background.

Product type

Frame

Dim

(W x H x D) 355 x 455 x 110 mm

Content

1 pc(s)

Width

355 mm

Height

455 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of DIN rails: 3
Number of units per DIN rail: 16
Type of cover: With cut-out
With cover: No.
With mounting plate: No.
With N-PE terminals: Yes

Product type: Frame

Dim: (W x H x D) 355 x 455 x 110 mm

Content: 1 pc(s)

Width: 355 mm

Height: 455 mm

Depth: 110 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3755679 Schneider Electric NSYDLCR48 Modular frame DLCR type for PanelSet WM steel housing, 48 modules, H500xW400 Frame 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3755679 Schneider Electric NSYDLCR48 Modular frame DLCR type for PanelSet WM steel housing, 48 modules, H500xW400 Frame 1 pc(s)

Description

DL case for PanelSet S3X and PanelSet CRN case. The frame is to be fixed to the front of the housing with fixing elements - to be fixed to the rear with brackets. The width is 355mm. The height is 455mm. The depth is 110 mm. The number of 18 mm modules is 48 (1 module equal to 2 steps equal to 18 mm). Number of horizontal rows is 3. The depth of the frame can be adjusted at a height of 40 to 85 mm for DIN-rails. The product is made of gray steel (RAL 7035). The front side is gray (RAL 7035). Number of cuttings is 3. The kit consists of 1 frames, 1 neutral/earth bar 2 x 16 mm² 5 x 6 mm², 1 front plate and 3 35 mm DIN rails. Corrosion protection is ensured through a polyester powder coating. This product is classified as environmentally friendly as it contains only a few dangerous substances.

This text is machine translated.
