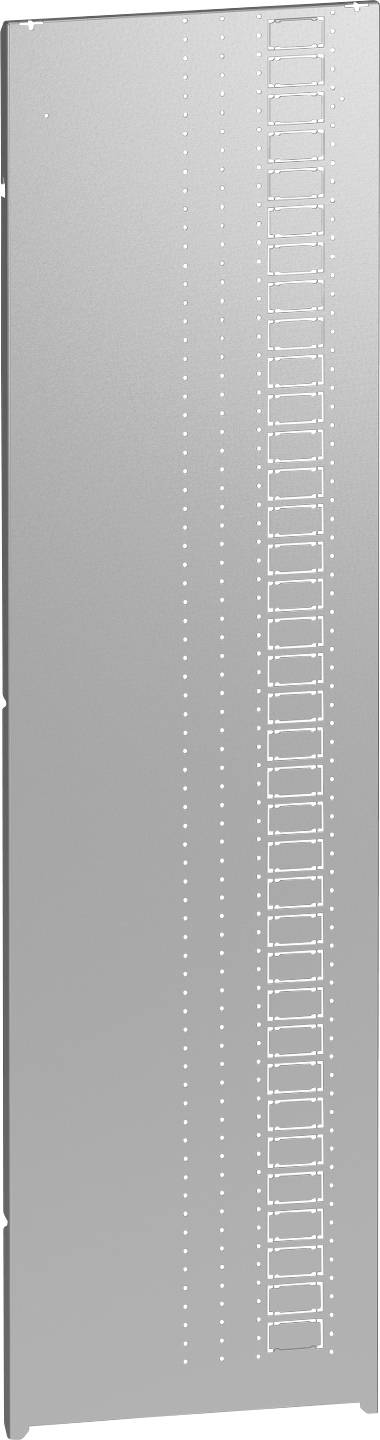

Schneider Electric NSYMBC206 Panel set SFM rear wall - segmented application - 600 mm Rear panel Steel Grey 1 pc(s)
Product type
Rear panel
Factory colour
Grey
Dim
(W x H) 505 mm x 1980 mm
Content
1 pc(s)
Material
Steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Surface finish: Galvanised
- Suitable as rear wall: Yes
- Suitable as a side wall: No.
- Suitable for housing width 600 mm
- Suitable for housing depth 600 mm
- With cable entry: Yes
- With lock: No.
- RAL number: 7035
- Product type
Rear panel
- Factory colour
Grey
- Dim
(W x H) 505 mm x 1980 mm
- Content
1 pc(s)
- Material
Steel
- Width
505 mm
- Height
1980 mm
- Rack unit
40 U
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763469 Schneider Electric NSYMBC206 Panel set SFM rear wall - segmented application - 600 mm Rear panel Steel Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763469 Schneider Electric NSYMBC206 Panel set SFM rear wall - segmented application - 600 mm Rear panel Steel Grey 1 pc(s)
Description

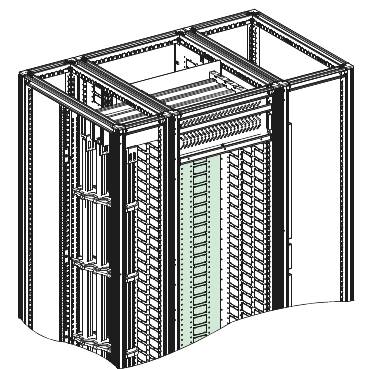

Rear partition walls form 2 for the separation of the busbars from the functional units for compartment use in the PanelSet SFM housing. Attaches directly to the structure of the cabinet. The nominal width is 600 mm. The nominal height is 2000 mm. This product is classified as environmentally friendly as it contains only a few dangerous substances.
