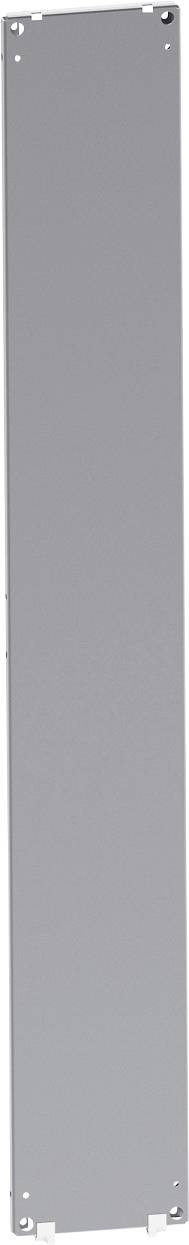

Schneider Electric NSYMP224 Simple mounting plate, PanelSet SFN, PanelSet SF, for electrical housing H2200 W400mm, zinc-
Product type
Mounting plate
Dim
(W x H) 400 mm x 2200 mm
Content
1 pc(s)
Material
Steel
Width
400 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Punching: No.
- Surface protection: Galvanised
- Product type
Mounting plate
- Dim
(W x H) 400 mm x 2200 mm
- Content
1 pc(s)
- Material
Steel
- Width
400 mm
- Height
2200 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763470 Schneider Electric NSYMP224 Simple mounting plate, PanelSet SFN, PanelSet SF, for electrical housing H2200 W400mm, zinc-
User & Safety Instructions
User & Safety Instructions 3763470 Schneider Electric NSYMP224 Simple mounting plate, PanelSet SFN, PanelSet SF, for electrical housing H2200 W400mm, zinc-
Description
This mounting plate is suitable for PanelSet SFN and PanelSet standing cabinets. It can be installed in cabinets with a nominal height of 2200 mm and a nominal depth of 400 mm. It consists of galvanized steel. The depth can be adjusted in steps of 25 mm. The mounting plate is coated with plastic shoes, in order to simplify the installation.
This text is machine translated.
This text is machine translated.
