Name: Schneider Electric TeSys-island TPRBCPFB Bus connector 24 V DC
Brand: Schneider Electric
SKU: 2362635
Availability: InStock

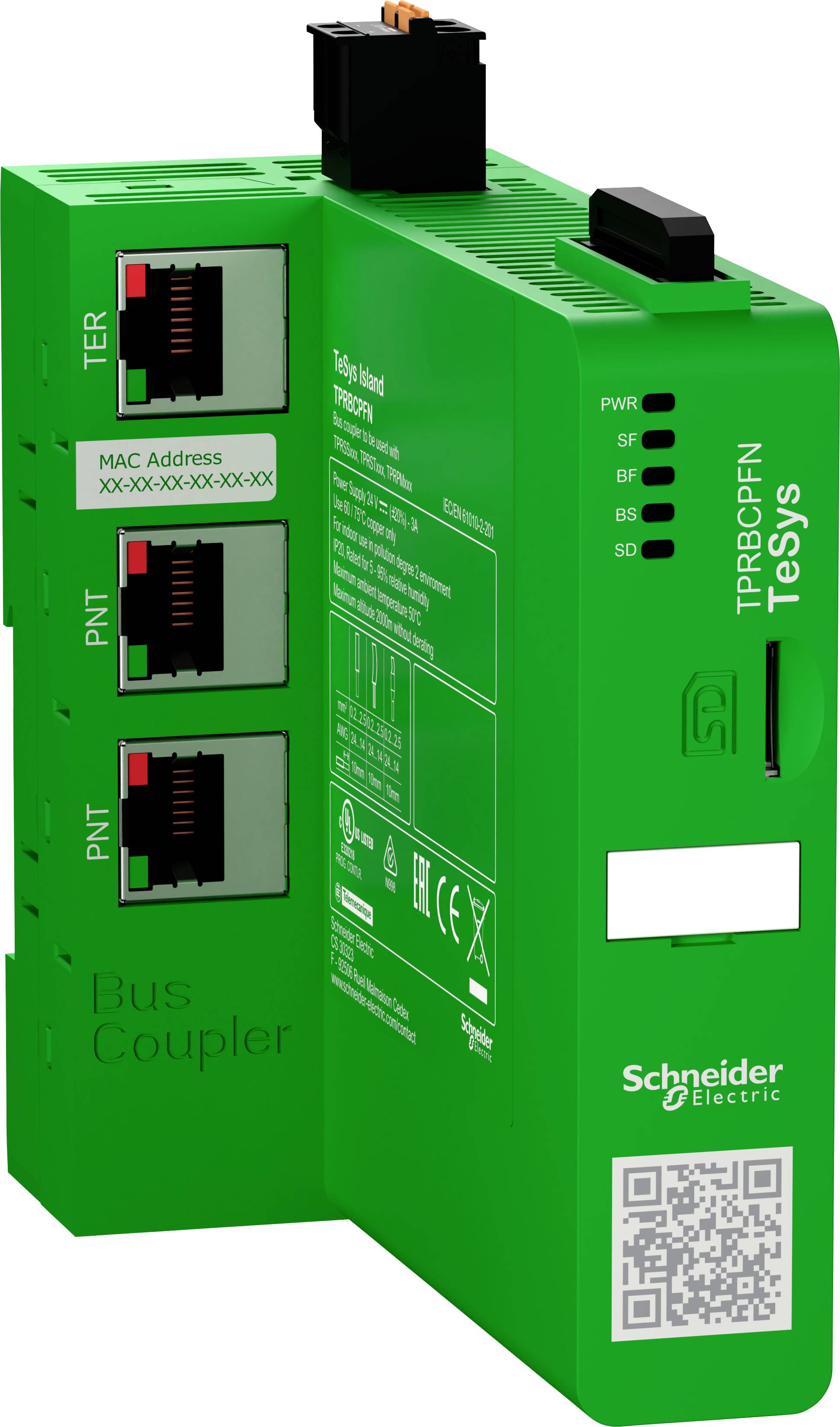

Green module with connections and interfaces, marked as 'Schneider Electric TeSys'. Contains network and bus system connections.

A row of electrical devices, possibly switching modules, black-green in colour with switches and QR codes, stacked in a line.

1/2

Fast track dispatch on Thu 15 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 369.00 / piece)

€ 369.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TeSys island Profibus Bus Coupler

Digital multifunctional load management solution up to 80A

Technical specifications

Communication protocol: PROFIBUS DP
Integrated interfaces: 1 SUB-D 9, female connector for Profibus DP protocol, fieldbus port
1 RJ45, female connector for Ethernet TCP/IP protocol, service port
1 microSD card port
Communication service: Type 3 data-link layer service for Profibus
DHCP client for Ethernet TCP/IP
SNTP client for Ethernet TCP/IP
Product certifications: UL; CSA; EAC; Achilles: Level 2
Connections - terminals: Power supply: Removable spring-loaded terminal block

Product type: Bus connector

Operating voltage: 24 V DC

Type: TeSys-island

Display: No

Manufacturer part #: TPRBCPFB

Dim: (W x D) 50 mm x 114 mm

Operating voltage: 20.4 - 28.8 V DC

Max. operating voltage: 28.8 V DC

Min. operating voltage: 20.4 V

Max. permanent current: 3 A

Extensible: Yes

Fitting type (details): Top-hat rail

Width: 50 mm

Depth: 114 mm

: IP20

Max. ambient temperature: +60 °C

Min. ambient temperature: -10 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362635 Schneider Electric TeSys-island TPRBCPFB Bus connector 24 V DC

Description

TeSys island is an innovative load management solution that makes machines smarter and more reliable while reducing time-to-market so OEMs can move forward in their Industry 4.0 journey. TeSys island is designed to switch, protect and manage motors and other electrical consumers up to 80 Ampere (AC3) in an electrical cabinet. TeSys island's digital approach was designed to simplify application selection and system configuration, and reduce engineering overhead, enabling faster machine installation. TeSys island provides the user with access to device-related data for system diagnostics. In addition, TeSys island can be easily integrated into third-party automation systems and supports all major field buses.

· The system manages motors and other electrical consumers up to 80A/37kW/50PS.
· Up to 20 modules / 1 meter on one bus coupler
· One-click mounting on DIN rail and no control wiring required
· No additional cabling required, thanks to internal AUX bus
· No mechanical settings / settings required
· Digital & Analogue I/OS available
· International standard compliant
· Only 21 commercial references for the entire system, including 5 standard motor starters and 5 functional safety motor starters.
· Power monitoring at load level
· Integrated Cybersecurity in the system (Achilles Level 2 & Safety to cat 4)Safety Stop TUV certified (Stop 0 and 1 with wiring categories 1 to 3, suitable for PLE (Performance Level) and SIL Level 3) open connectivity through Ethernet IP and Modbus TCP field buses

Uses:

Optimized and powerful machines installed in:
· Packaging
· Material transport
· Food & enjoyment
· Material processing
· Optimized and powerful machines installed in:
· Small pumps: Especially in the food & pleasure, manufacturing and logistics segments
