Schneider Electric XB5AA315 Pressure button, harmony XB5, plastic, 22mm, green, Blank, momentary, 1S, push-in Push butto

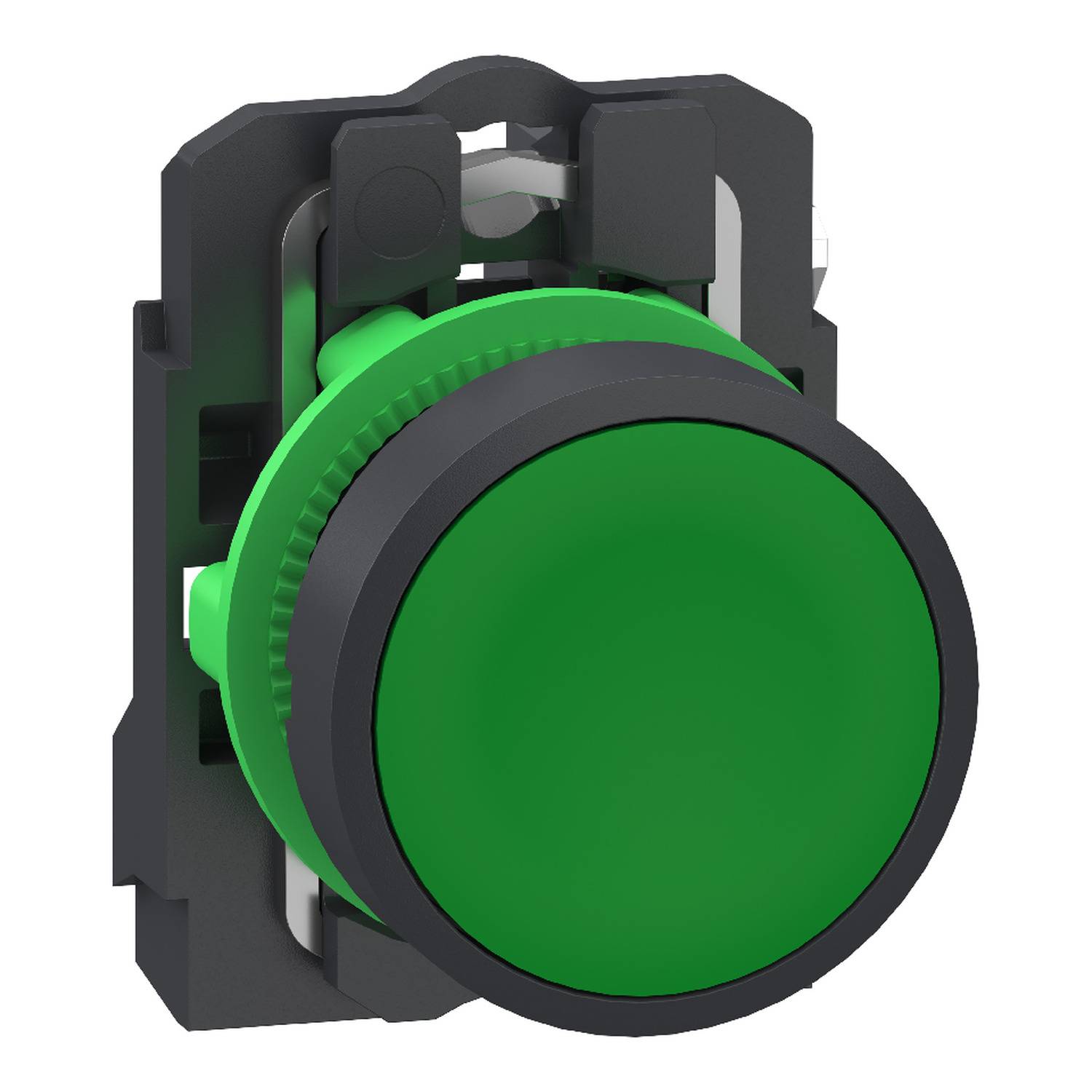

Green round industrial push button in a black mounting frame, shown in close-up on a white background.

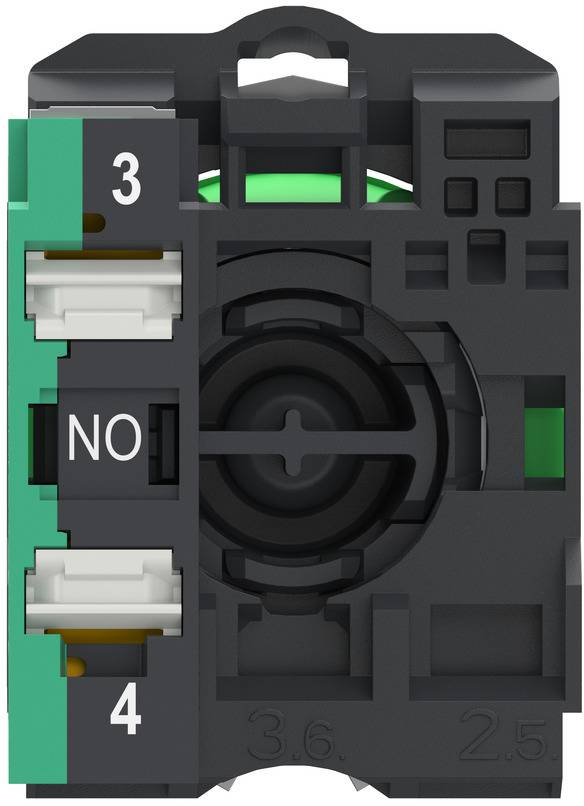

Black electrical connector with numbered terminals 3, 4, and 'NO', featuring a central circular locking mechanism.

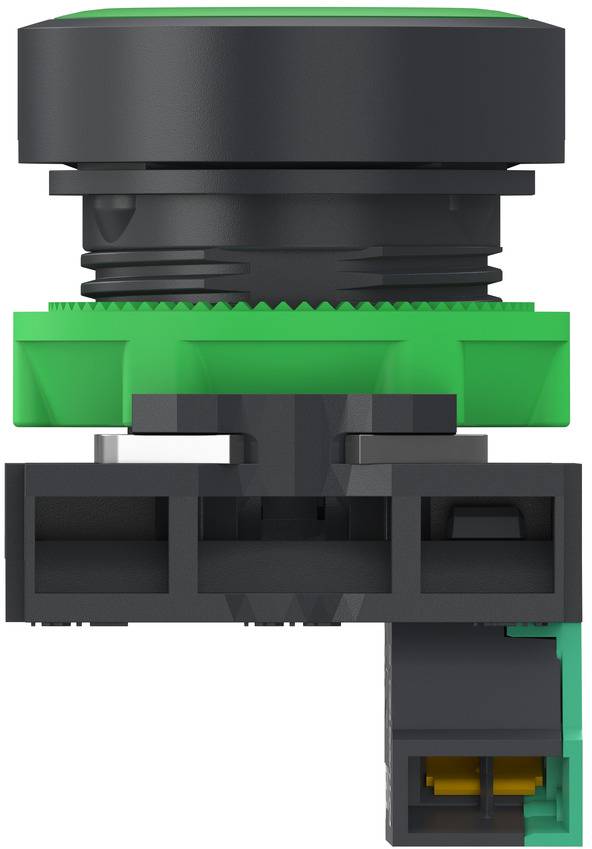

Close-up of a black and green electrical connector or switch component with multiple terminal slots.
Side view of an industrial push button switch assembly, showing the black actuator, green mounting ring, and green contact block.<br>

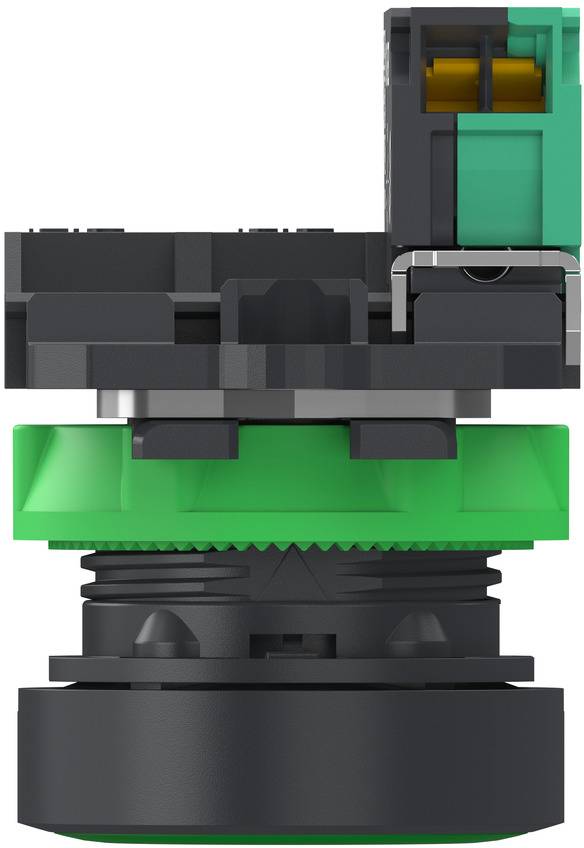

Close-up of a black and green mechanical rotary switch or sensor component, shown isolated on a white background.
Side view of a black and green push button switch labeled 'ZBE1015' with 'NO' and '3A 300-0300' markings.

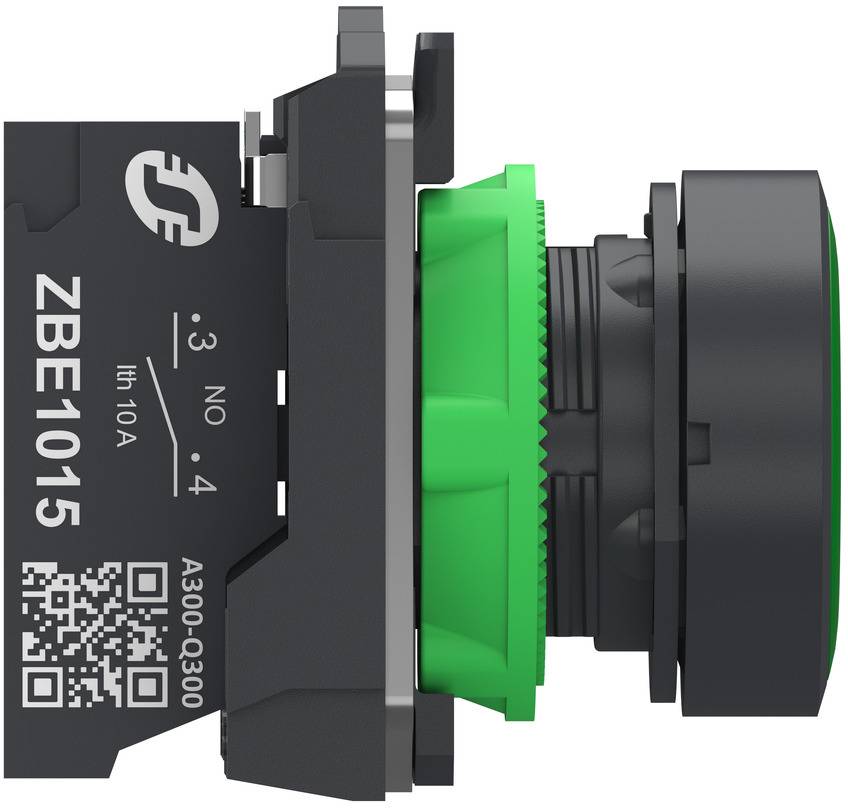

Side view of a black and green industrial push-button switch labeled 'ZBE1015' and 'NO', with a QR code.

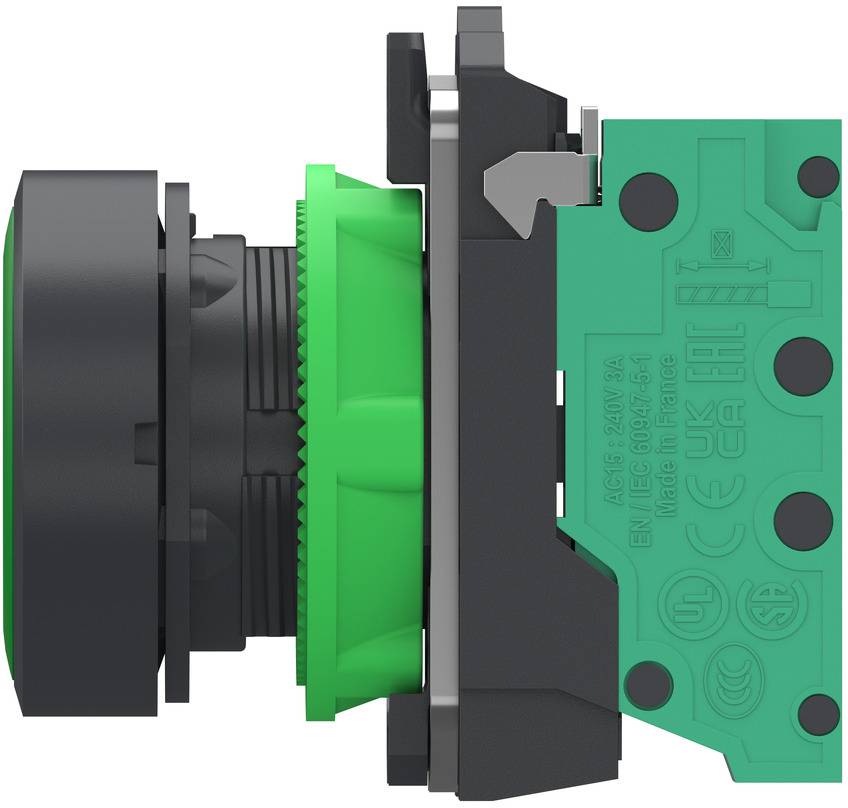

Side view of a green-and-black industrial push button or switch assembly with a cylindrical actuator and mounting body.
1/8
Product type
Push buttons
Content
1 pc(s)
IP rating
IP66
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 13.99 / piece)
€ 13.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Number of command points: 1
  • Number of contacts as N/O contacts: 1
  • Number of contacts as changer: 0
  • Number of contacts as NC contacts: 0
  • Design of the electrical connection: Other
  • Design of the lens: Round
  • Button design: Flat
  • Button color: Green
  • Colour front ring: Grey
  • Suitable for lighting: No.
  • Hole diameter 22.5 mm
  • With front ring: Yes
  • Switching function latching: No
  • Protection class (NEMA): 4X, 13
  • Momentary: Yes
  • Transparent: No.
  • Material of the front ring: Plastic
Product type

Push buttons

Content

1 pc(s)

IP66

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3757281 Schneider Electric XB5AA315 Pressure button, harmony XB5, plastic, 22mm, green, Blank, momentary, 1S, push-in Push butto

User & Safety Instructions

User & Safety Instructions 3757281 Schneider Electric XB5AA315 Pressure button, harmony XB5, plastic, 22mm, green, Blank, momentary, 1S, push-in Push butto

Description

The Harmony XB5 series of plastic offers a range of 22mm complete devices such as push buttons, indicator lights and selector switches right up to the emergency stop switch. The modular design of the devices also allows all components to be purchased as individual elements and, optionally, also for a 30mm installation. Due to the quality, flexibility and extreme robustness (protection classes up to IP69K) the devices Ideal are suitable for most applications in industry and in buildings. This pushbutton in green color has 1 NO contact and is unlabeled. Mounted in a 22 mm hole the device is connected by push-in terminals at the rear side of the product. Due to the large number of available product standards and certifications, suitable for the international application For this product, you can get detailed information on material content, environmental impact and recycling management to support your sustainability goals.

This text is machine translated.
