Schuch 107 06L12 XR LED light tube LED (monochrome) 10 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 10 W
- Total luminous flux= 1300 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED light tube
- Type
Tube
- Bulb type
LED (monochrome)

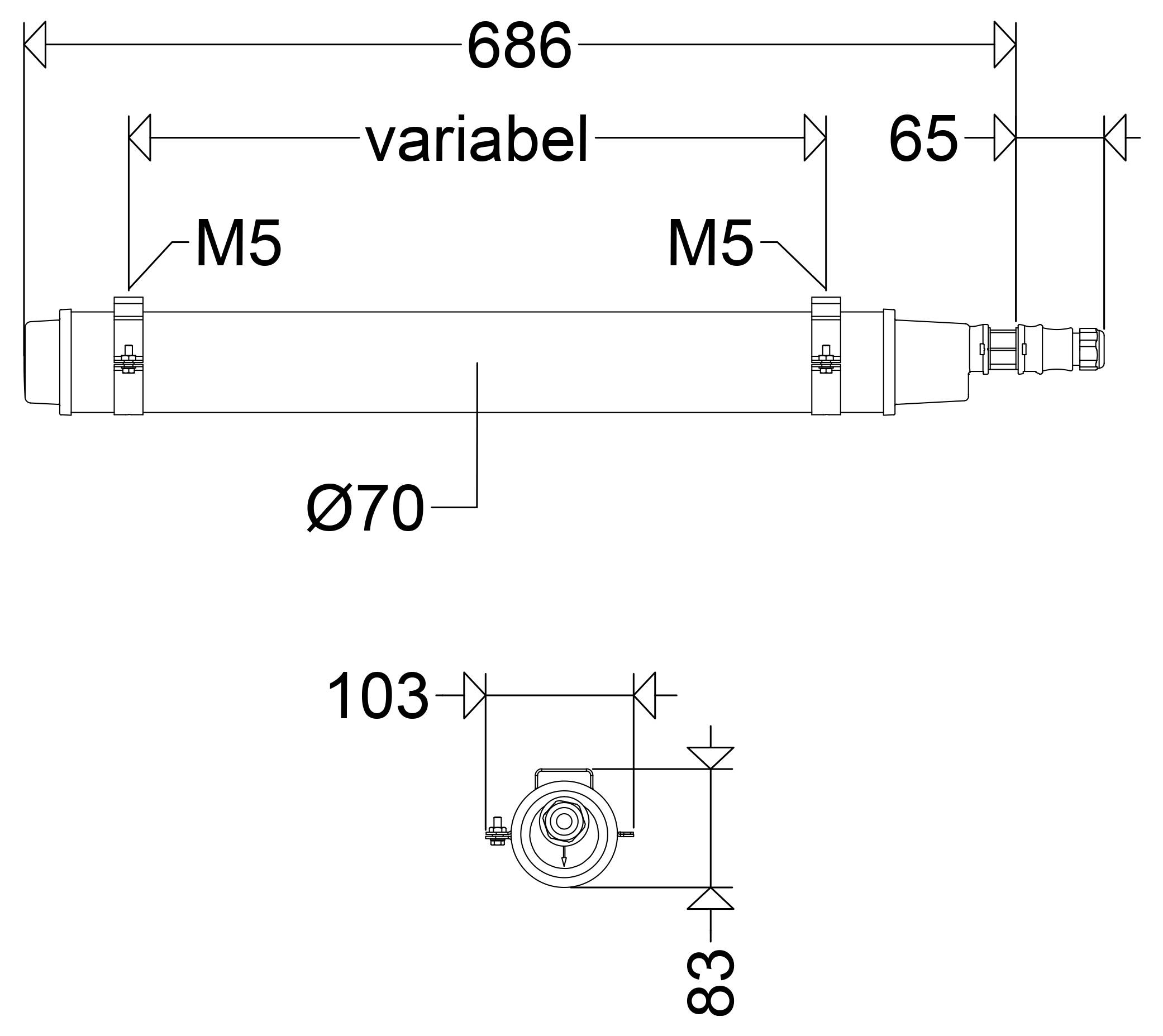

- Length
686 mm
10 W
- Height
83 mm
- Width
103 mm
4000 K
- Colour
White
- Total luminous flux
1300 lm
- Light features
Incl. ballast
Direct light emission
Suitable for wall mounting
Ceiling mount option
Usable as a pendant light
IP69K
IK06
- Factory colour
White
- Material
Plastic
- Dim
(Ø x H) 70 mm x 83 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- (Ø)
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769549 Schuch 107 06L12 XR LED light tube LED (monochrome) 10 W White White
User & Safety Instructions
User & Safety Instructions 3769549 Schuch 107 06L12 XR LED light tube LED (monochrome) 10 W White White
Description
LED tubular lamp, PRIMO XR, 10 W, 1300 lm, SKI, IP68 (3M), IPX9K, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h (@ Ta 25°C), L80>70000 h (@ Ta max), L70>100000 h (@ Ta max), satin pipe, FastConnect (FC), extreme resistance (XR), for hazardous areas (XR), for unprotected outdoor areas (OFF), for swimming pools (SBL), stainless steel pipe clamps included in the delivery, EAN/GTIN:4041254395708. Extremely harmful LED tubular lamp for gas-polluted areas. Satin finish, impact resistant PMMA pipes with end/connection caps welded. Aluminium reflector with highly efficient LED modules and electronic ballast with overload and short-circuit protection. Electrical connection via quick plug connection (FastConnect), plug part integrated in connection cap, socket part enclosed. Mounting with two stainless steel pipe clamps, included in the delivery.
