Schuch 107 12L42 XR DIMD LED light tube LED (monochrome) 29 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 29 W
- Total luminous flux= 4370 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED light tube
- Type
Tube
- Bulb type
LED (monochrome)

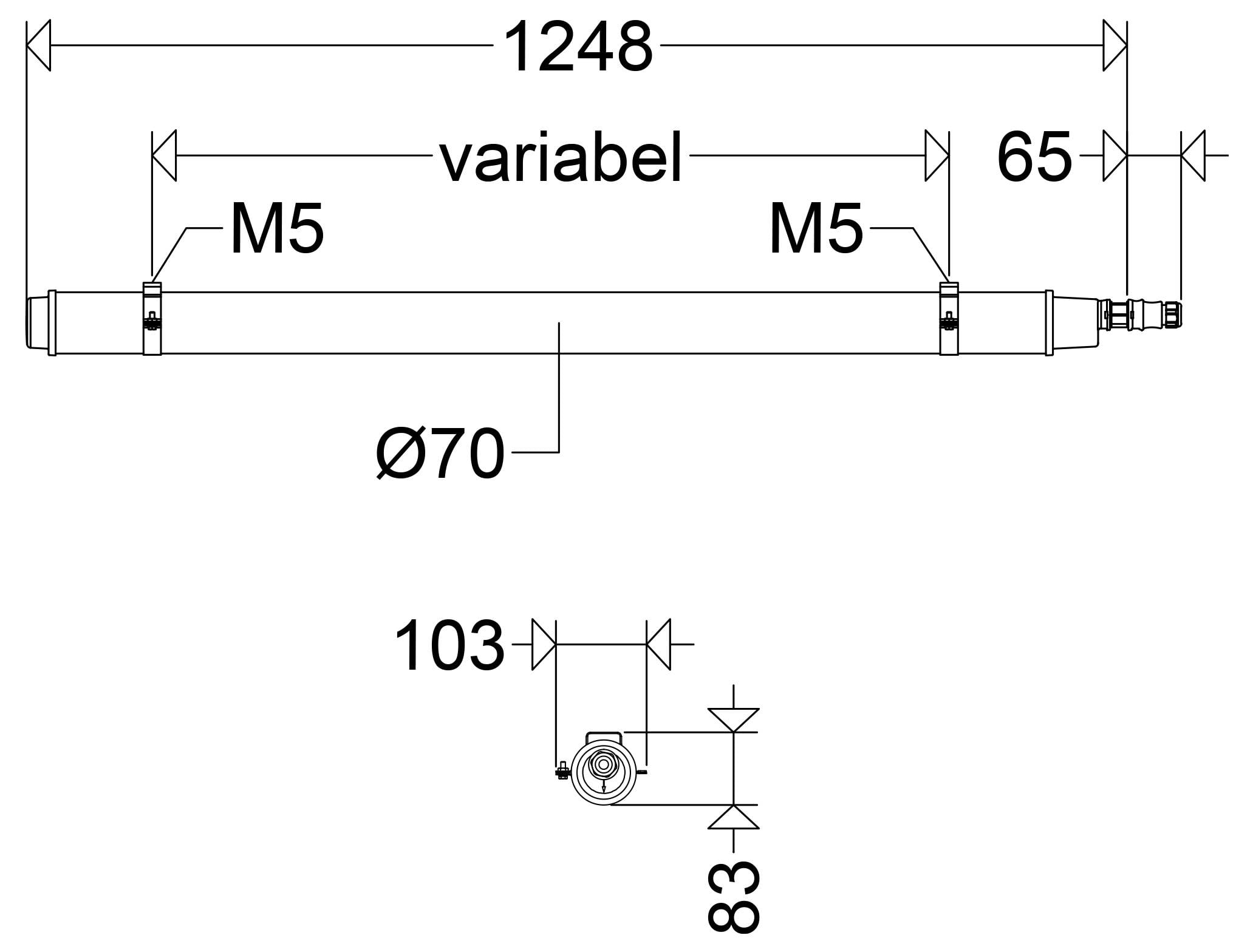

- Length
1248 mm
29 W
- Height
83 mm
- Width
103 mm
4000 K
- Colour
White
- Total luminous flux
4370 lm
- Light features
Incl. ballast
Dimmable
Direct light emission
Ceiling mount option
Usable as a pendant light
IP69K
IK06
- Factory colour
White
- Material
Plastic
- Dim
(Ø x H) 70 mm x 83 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- (Ø)
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770301 Schuch 107 12L42 XR DIMD LED light tube LED (monochrome) 29 W White White
User & Safety Instructions
User & Safety Instructions 3770301 Schuch 107 12L42 XR DIMD LED light tube LED (monochrome) 29 W White White
Description
LED tubular lamp, PRIMO XR, 29 W, 4370 lm, SKI, IP68 (3M), IPX9K, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h (@ Ta 25°C)>, L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), DALI (DIMD), satin pipe PMMA, FastConnect (FC), extreme resistance (XR), for hazardous areas (XR), for unprotected outdoor areas (OFF), for swimming pools (SBL), stainless steel pipe clamps included in delivery, EAN/GTIN:4041254352039.Extremely harmful LED tubular lamp for damaged areas. Satin finish, impact resistant PMMA pipes with end/connection caps welded. Aluminium reflector with highly efficient LED modules and electronic ballast with overload and short-circuit protection. Electrical connection via quick plug connection (FastConnect), plug part integrated in connection cap, socket part enclosed. Mounting with two stainless steel pipe clamps, included in the delivery.
