Schuch 107 15L34 XR LW LED light tube LED (monochrome) 28 W White White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 28 W
- Total luminous flux= 3660 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED light tube
- Type
Tube
- Bulb type
LED (monochrome)

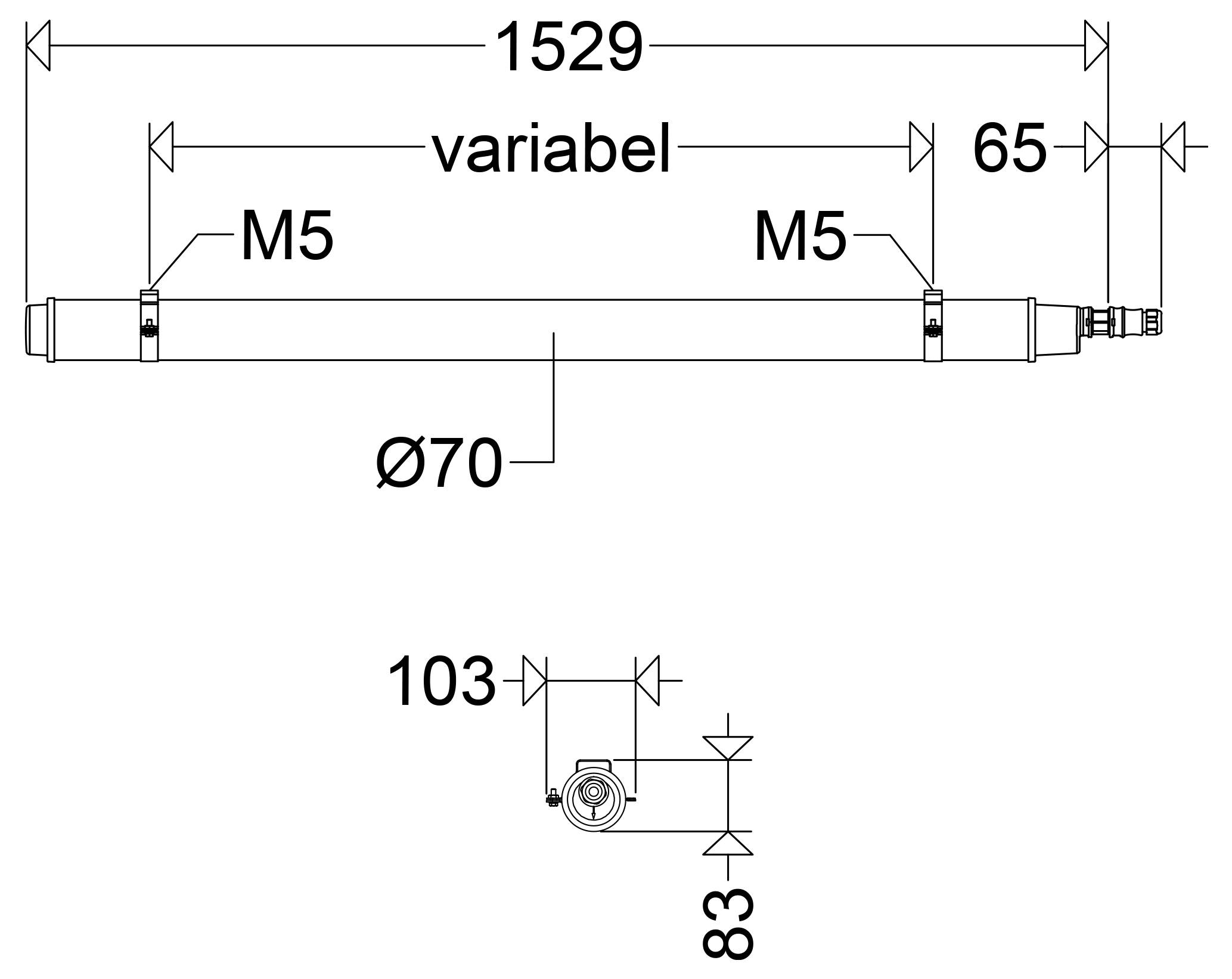

- Length
1529 mm
28 W
- Height
83 mm
- Width
103 mm
4000 K
- Colour
White
- Total luminous flux
3660 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP69K
IK06
- Factory colour
White
- Material
Plastic
- Dim
(Ø x H) 70 mm x 83 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- (Ø)
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770371 Schuch 107 15L34 XR LW LED light tube LED (monochrome) 28 W White White
User & Safety Instructions
User & Safety Instructions 3770371 Schuch 107 15L34 XR LW LED light tube LED (monochrome) 28 W White White
Description
LED tubular lamp, PRIMO XR, 28 W, 3660 lm, SKI, IP68 (3M), IPX9K, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+35 °C, L80>50000 h (@ Ta max), L70>100000 h (@ Ta max), satin pipe, FastConnect (FC), extreme resistance (XR), for pollutant areas (XR), for unprotected outdoor areas (OFF), for agricultural establishments (LW), for swimming pools (SBL), stainless steel pipe clamps included in the delivery, EAN/GTIN:4041254343099.Absolutely gas-tight LED tubular lamp for use in ammonia-laden stables and agricultural establishments. Satin finish, impact resistant PMMA pipes with end/connection caps welded. Aluminium reflector with LED modules and EVG with overload and short-circuit protection. Electrical connection via quick plug connection (FastConnect), plug part integrated in connection cap, socket part enclosed. Mounting with two stainless steel pipe clamps, included in the delivery.
