Schuch 142 12L22 VED anti-vandalism light LED (monochrome) 17 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 17 W
- Total luminous flux= 2550 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
VED anti-vandalism light
- Bulb type
LED (monochrome)
- Length
1245 mm
17 W
- Height
75 mm
- Width
250 mm
4000 K
- Colour
White
- Total luminous flux
2550 lm
- Light features
Incl. ballast
Direct light emission
Suitable for wall mounting
Ceiling mount option
IP65
IK10
- Factory colour
White
- Material
Aluminium
Plastic
- Dim

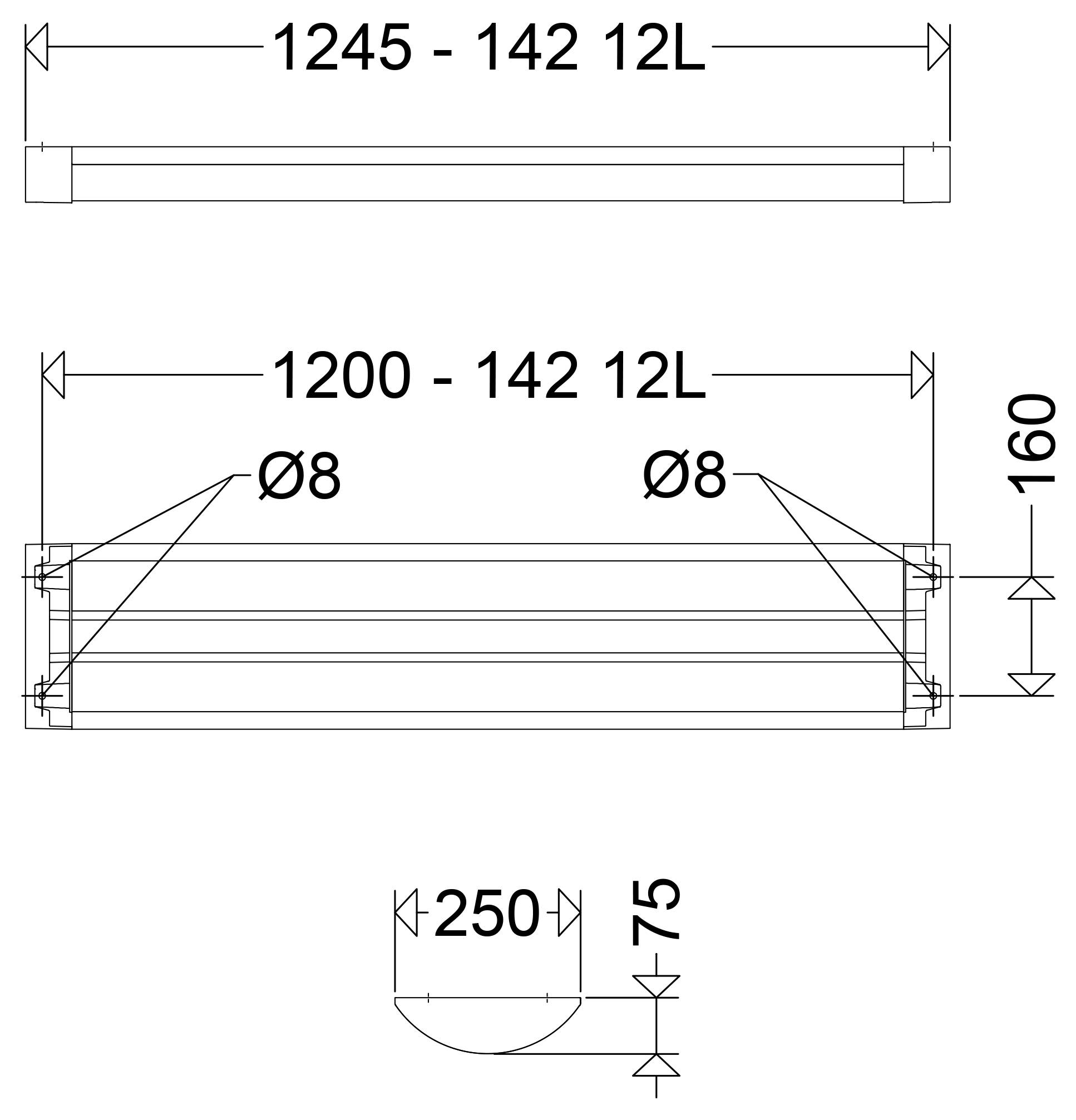

(L x W x H) 1245 x 250 x 75 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769746 Schuch 142 12L22 VED anti-vandalism light LED (monochrome) 17 W White White
User & Safety Instructions
User & Safety Instructions 3769746 Schuch 142 12L22 VED anti-vandalism light LED (monochrome) 17 W White White
Description
LED Anti-vandal Light, SEGURO, 17 W, 2550 lm, SKI, IP66, IPX9K, symmetric-wide-radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h (@ Ta 25°C)>, L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), satin pan PC, stainless steel cover (1.4301), aluminum housing, painted, Colour white, RAL 9016, pure-out wiring (RR), EAN/GTIN:4041254392097.Extremely flat, robust LED anti-vandal light. Aluminium profile casing, powder-coated, with concealed cable duct, circumferential silicone seal. Extremely impact resistant PC-closure tub, satin, with end caps made of aluminum die-cast mounted covered, detachable and detachable. Painted aluminum reflector with Zhaga-compliant LED modules, EVG mounted in the housing. End caps and end tray are screwed to the housing with countersunk stainless steel safety screws. Cable entry in front, hidden in the end caps.
