Schuch 144 12L60 AUS LED wet room diffusor LED (monochrome) 44 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 44 W
- Total luminous flux= 6590 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1355 mm
44 W
- Height
150 mm
- Width
226 mm
4000 K
- Colour
White
- Total luminous flux
6590 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP66
IK10
- Factory colour
Grey
- Material
Plastic
- Dim

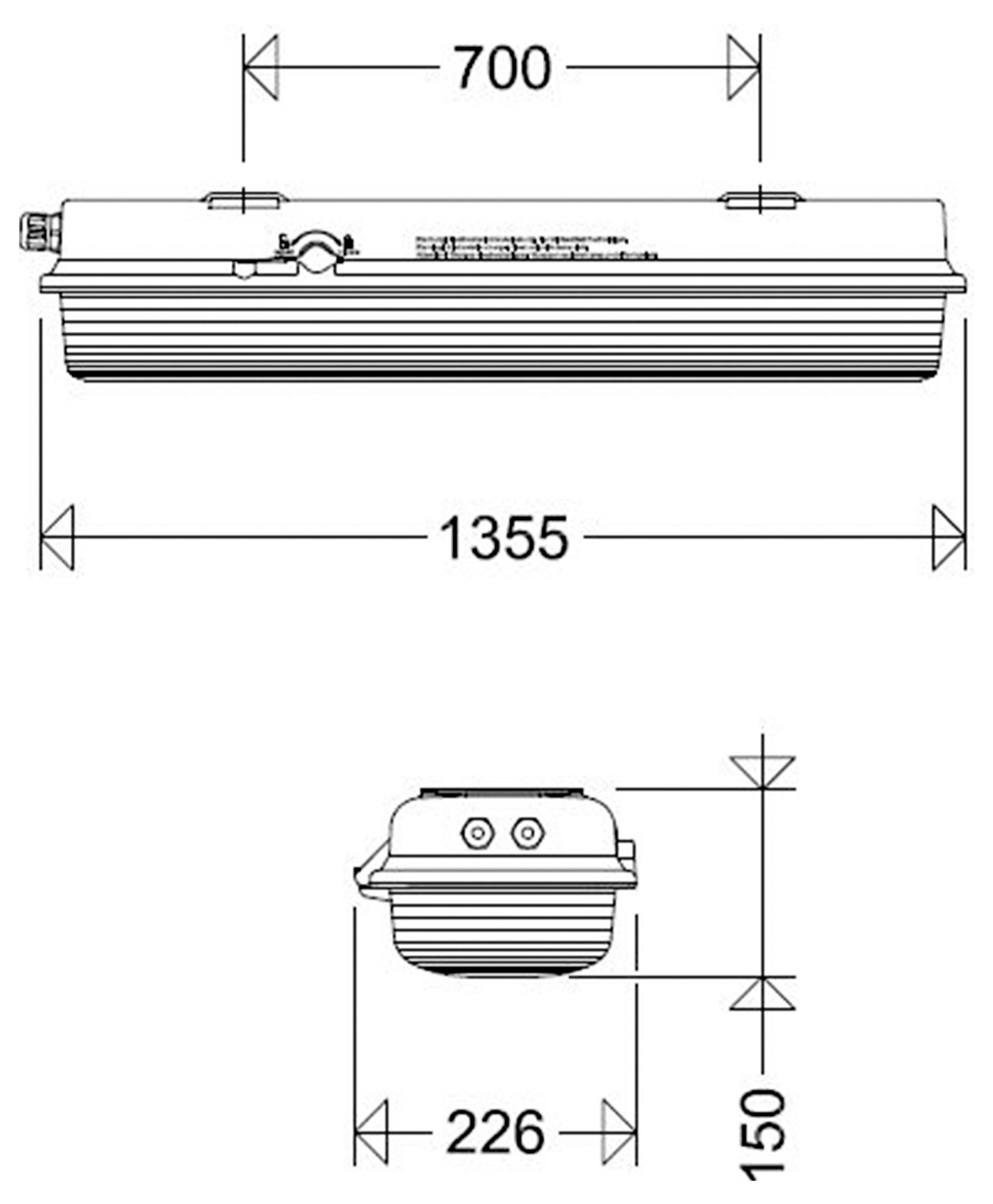

(L x W x H) 1355 x 226 x 150 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770430 Schuch 144 12L60 AUS LED wet room diffusor LED (monochrome) 44 W White Grey
User & Safety Instructions
User & Safety Instructions 3770430 Schuch 144 12L60 AUS LED wet room diffusor LED (monochrome) 44 W White Grey
Description
LED wet room diffusor, 44 W, 6590 lm, SKI, IP66, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h (@ Ta 25°C), L80>70000 h (@ Ta max), L70>100000 h (@ Ta max), clear tub PC with interior prisms, housing glass-fiber reinforced polyester, color gray, pure-out wiring (RR), for unprotected outdoor areas (OFF), central shutter, EAN/GTIN:4041254323268. Extremely robust LED wet-room diffuser for unprotected outdoor areas. Housing made of highly impact resistant glass fiber reinforced polyester, clear PC tub with very high impact resistance, central lock, silicone seal and pressure compensation element. Painted aluminum reflector with highly efficient Zhaga-compliant LED modules, blend elements and EVG with overload and short circuit protection.
