Schuch 161PX 15L150 IFS LED wet room diffusor LED (monochrome) 93 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 93 W
- Total luminous flux= 14250 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1578 mm
93 W
- Height
115 mm
- Width
137 mm
4000 K
- Colour
White
- Total luminous flux
14250 lm
- Light features
Incl. ballast
Direct light emission
Suitable for wall mounting
Ceiling mount option
Usable as a pendant light
IP65
IK08
- Factory colour
Grey
- Material
Plastic
- Dim

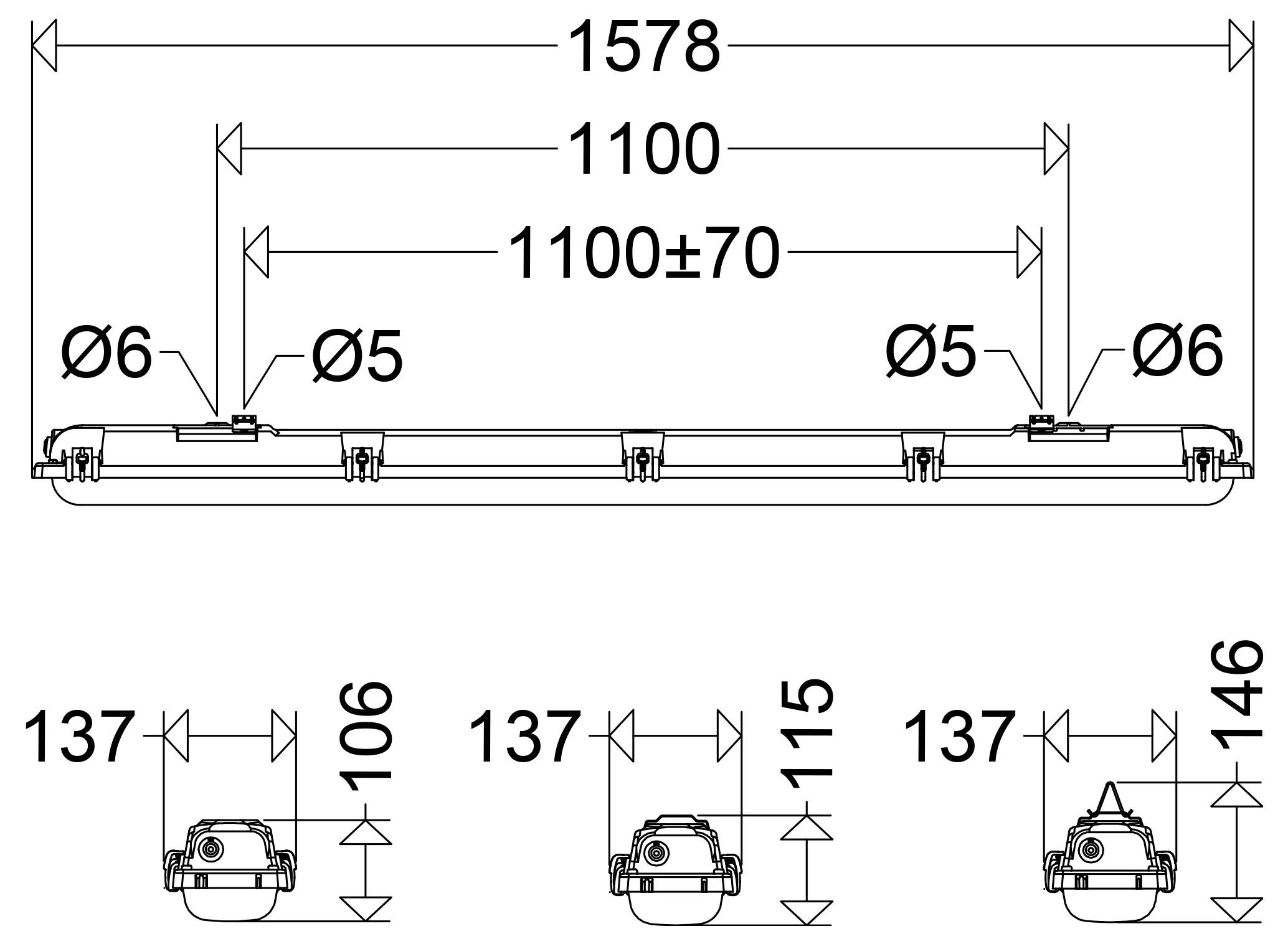

(L x W x H) 1578 x 137 x 115 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769744 Schuch 161PX 15L150 IFS LED wet room diffusor LED (monochrome) 93 W White Grey
User & Safety Instructions
User & Safety Instructions 3769744 Schuch 161PX 15L150 IFS LED wet room diffusor LED (monochrome) 93 W White Grey
Description
LED wet room diffusor, Proxima, 93 W, 14250 lm, SKI, IP65, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+35 °C, L90>50000 h (@ Ta 25°C), L80>70000>h (@ Ta max), L70 100000 h (@ Ta max), PC satin pan, stainless steel lock (1.4571), glass fiber reinforced polyester housing, color gray, Pure-Clear-Wiring (RR), for Food areas (IFS), EAN/GTIN:4041254375724.Robust LED wet room diffuser for food areas as per International Featured Standard Food High impact-resistant glass fiber reinforced polyester housing and satin finish PC-separator with high mechanical stability. Multi-part captive safety cap, silicone seal. Painted aluminum reflector with highly efficient Zhaga-compliant LED modules and electronic ballast with overload and short circuit protection. FastFix rapid installation system with movable stainless steel holding clamps and bars for chain suspension.
