Schuch 161PX 15L60 CS LED wet room diffusor LED (monochrome) 39 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 39 W
- Total luminous flux= 6130 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1578 mm
39 W
- Height
115 mm
- Width
137 mm
4000 K
- Colour
White
- Total luminous flux
6130 lm
- Light features
Incl. ballast
Dimmable
Selectable luminous flux
Bluetooth control option
Direct light emission
Suitable for wall mounting
Ceiling mount option
Usable as a pendant light
IP65
IK06
- Factory colour
Grey
- Material
Plastic
- Dim

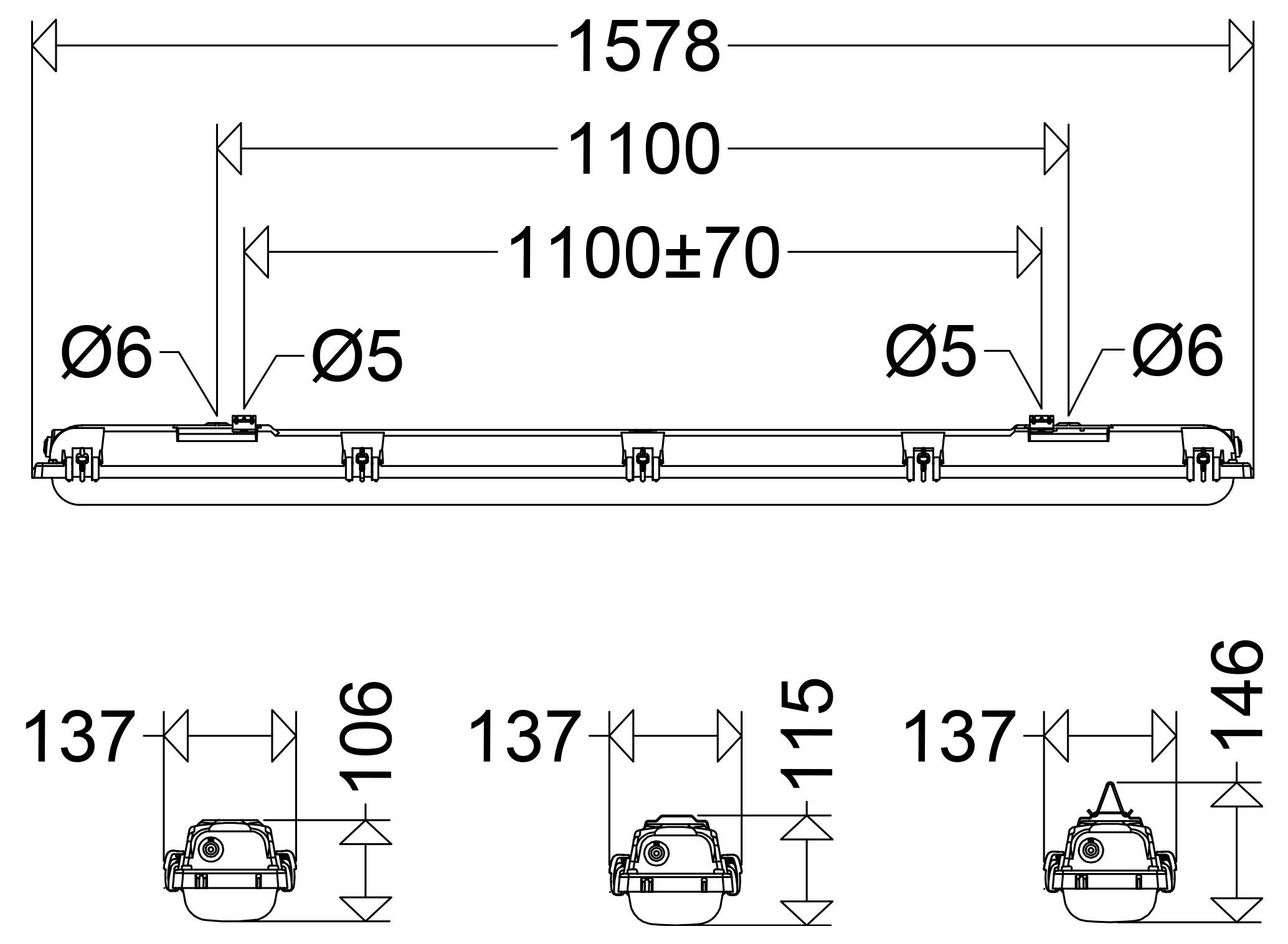

(L x W x H) 1578 x 137 x 115 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769677 Schuch 161PX 15L60 CS LED wet room diffusor LED (monochrome) 39 W White Grey
User & Safety Instructions
User & Safety Instructions 3769677 Schuch 161PX 15L60 CS LED wet room diffusor LED (monochrome) 39 W White Grey
Description
LED wet room diffusor, Proxima, 39 W, 6130 lm, SKI, IP65, symmetric-wide-radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000>h (@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), Casambi (CS), LIMA AIR, bathtub PMMA satin, plastic closure, Housing of glass-fiber reinforced polyester, color gray, pure-out wiring (RR), variable and almost continuously adjustable light current via APP (iOS/Android) via Casambi, EAN/GTIN:4041254398471. Robust LED wet room diffuser light with highly impact resistant glass fiber reinforced polyester housing and satin finish tub with high mechanical stability. Multi-part captive safety cap, silicone seal. Painted aluminum reflector with highly efficient Zhaga-compliant LED modules, EVG with overload and short-circuit protection as well as CASAMBI (R) wireless technology. FastFix rapid installation system with movable stainless steel holding clamps and bars for chain suspension.
