Schuch 163 12L22G2 SENS-Z30 LED wet room diffusor LED (monochrome) 15 W White Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 15 W
- Total luminous flux= 2390 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1272 mm
15 W
- Height
88 mm
- Width
116 mm
4000 K
- Colour
White
- Total luminous flux
2390 lm
- Light features
Incl. ballast
Dimmable
Incl. motion detector
Incl. light sensor
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK06
- Factory colour
Grey
- Material
Plastic
- Dim

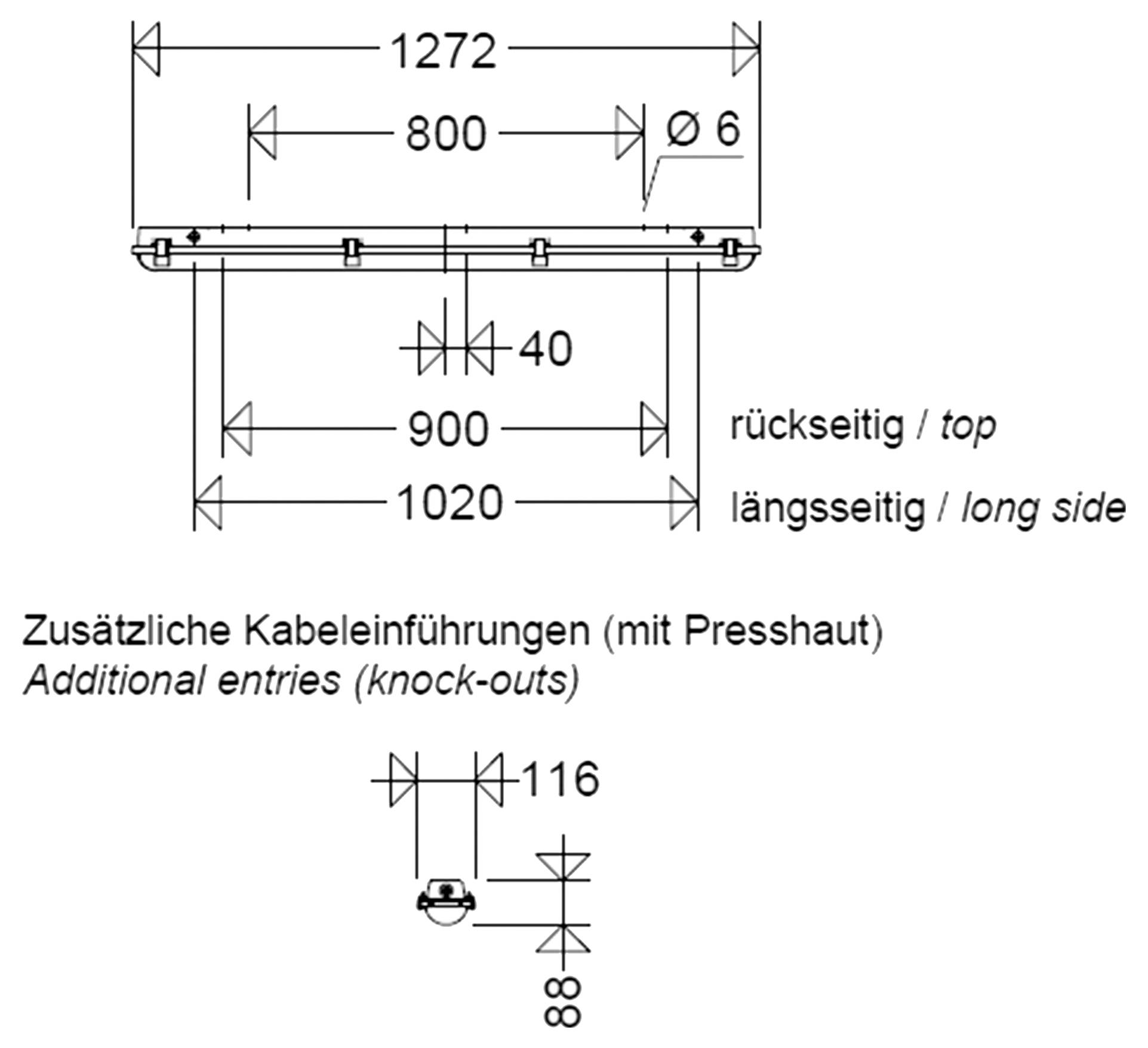

(L x W x H) 1272 x 116 x 88 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769910 Schuch 163 12L22G2 SENS-Z30 LED wet room diffusor LED (monochrome) 15 W White Grey
User & Safety Instructions
User & Safety Instructions 3769910 Schuch 163 12L22G2 SENS-Z30 LED wet room diffusor LED (monochrome) 15 W White Grey
Description
LED wet room diffusor, 15 W, 2390 lm, SKI, IP65, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h>(@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), Corridor function (DiMC), HF sensor, tub PMMA satin, shutter plastic, Housing of glass fiber reinforced polyester, color gray, EAN/GTIN:4041254356587.LED wet room diffuser lights with glass fiber reinforced polyester casing, satin finish bathtub, foamed sealing and locking brackets, of which two safety catches. Painted reflector with highly efficient Zhaga-compliant LED modules, DIMM electronic ballast with overload and short circuit protection, dimming function "corridor function" as well as motion sensor.
