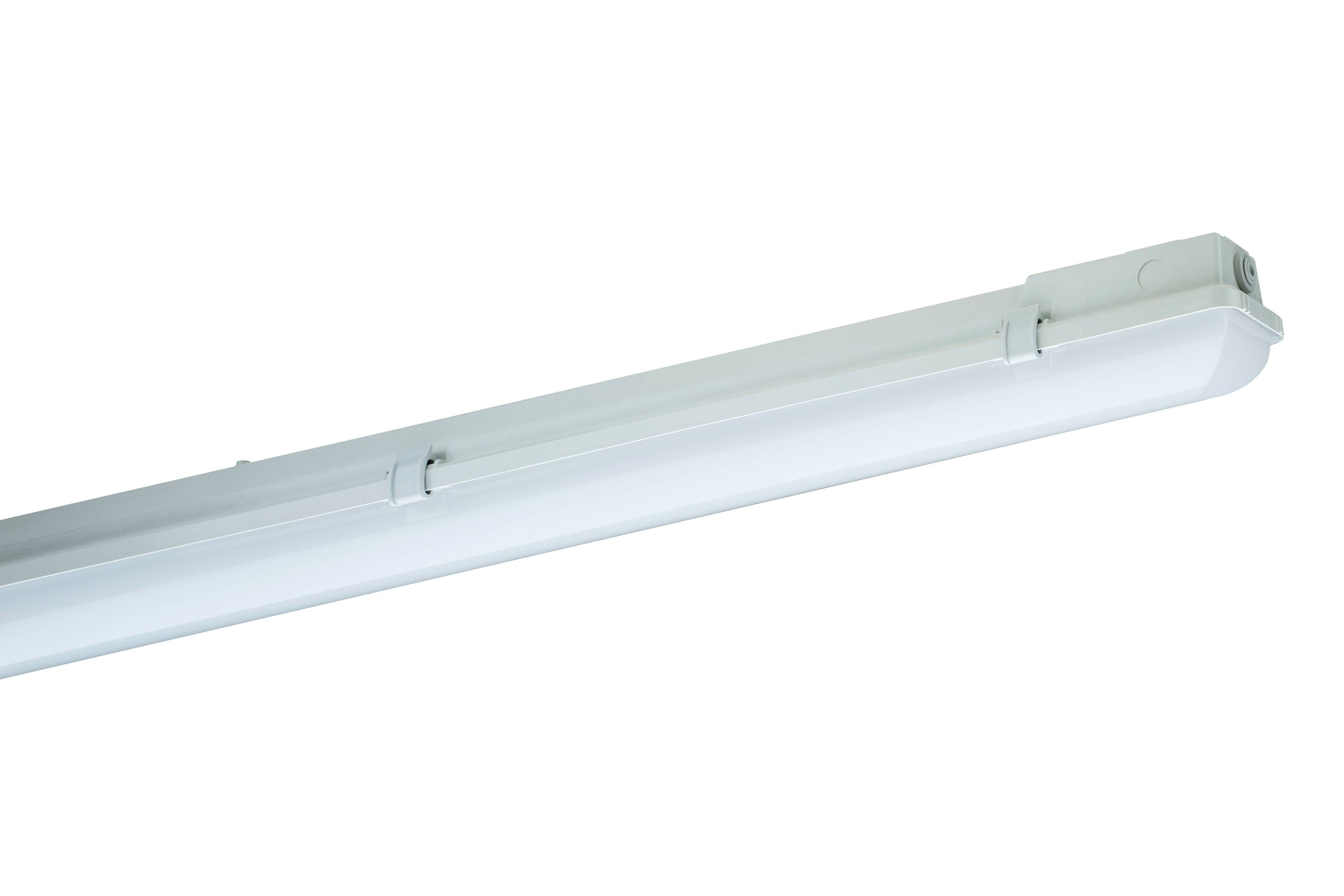

Schuch 163 15L60G2 DIMD LED wet room diffusor LED (monochrome) 39 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 39 W
- Total luminous flux= 6140 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1572 mm
39 W
- Height
98 mm
- Width
116 mm
4000 K
- Colour
White
- Total luminous flux
6140 lm
- Light features
Incl. ballast
Dimmable
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK06
- Factory colour
Grey
- Material
Plastic
- Dim

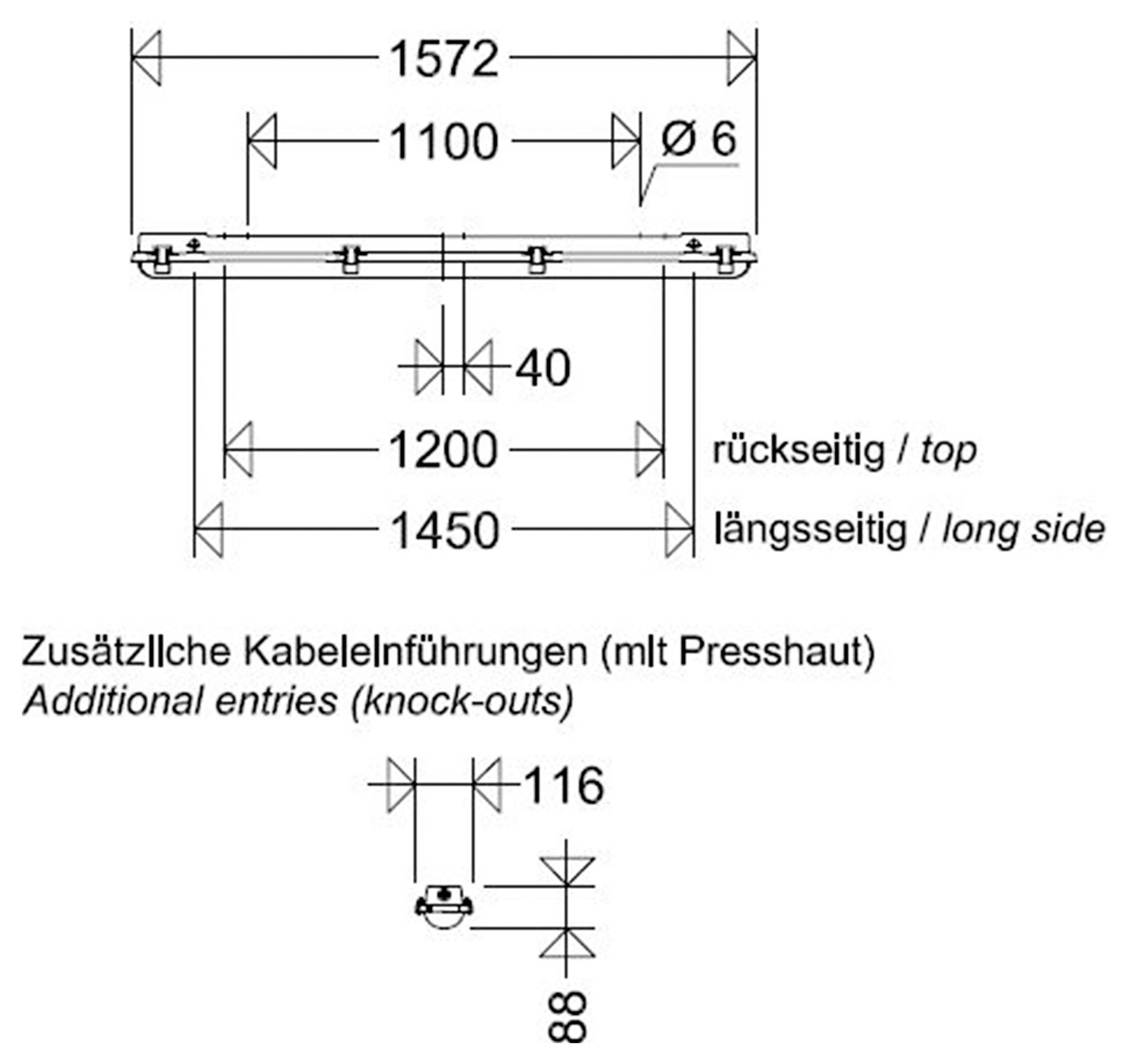

(L x W x H) 1572 x 116 x 98 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770313 Schuch 163 15L60G2 DIMD LED wet room diffusor LED (monochrome) 39 W White Grey
User & Safety Instructions
User & Safety Instructions 3770313 Schuch 163 15L60G2 DIMD LED wet room diffusor LED (monochrome) 39 W White Grey
Description
LED wet room diffusor, 39 W, 6140 lm, SKI, IP65, symmetric-wide radiant, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000>h (@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), DALI (DIMD), tank PMMA satin, plastic closure, glass fiber reinforced polyester housing, Colour gray, EAN/GTIN:4041254300368.LED wet-room diffuser lights with glass fiber reinforced polyester housing, satin finish PMMA end tray with impact resistance component, foamed sealing and locking clamps, of which two safety locks are available. Painted reflector with highly efficient Zhaga-compliant LED modules and electronic ballast with overload and short circuit protection.
