Schuch 164 12L90G2 DIMC LED wet room diffusor LED (monochrome) 58 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 58 W
- Total luminous flux= 8990 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1272 mm
58 W
- Height
98 mm
- Width
200 mm
4000 K
- Colour
White
- Total luminous flux
8990 lm
- Light features
Incl. ballast
Dimmable
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK04
- Factory colour
Grey
- Material
Plastic
- Dim

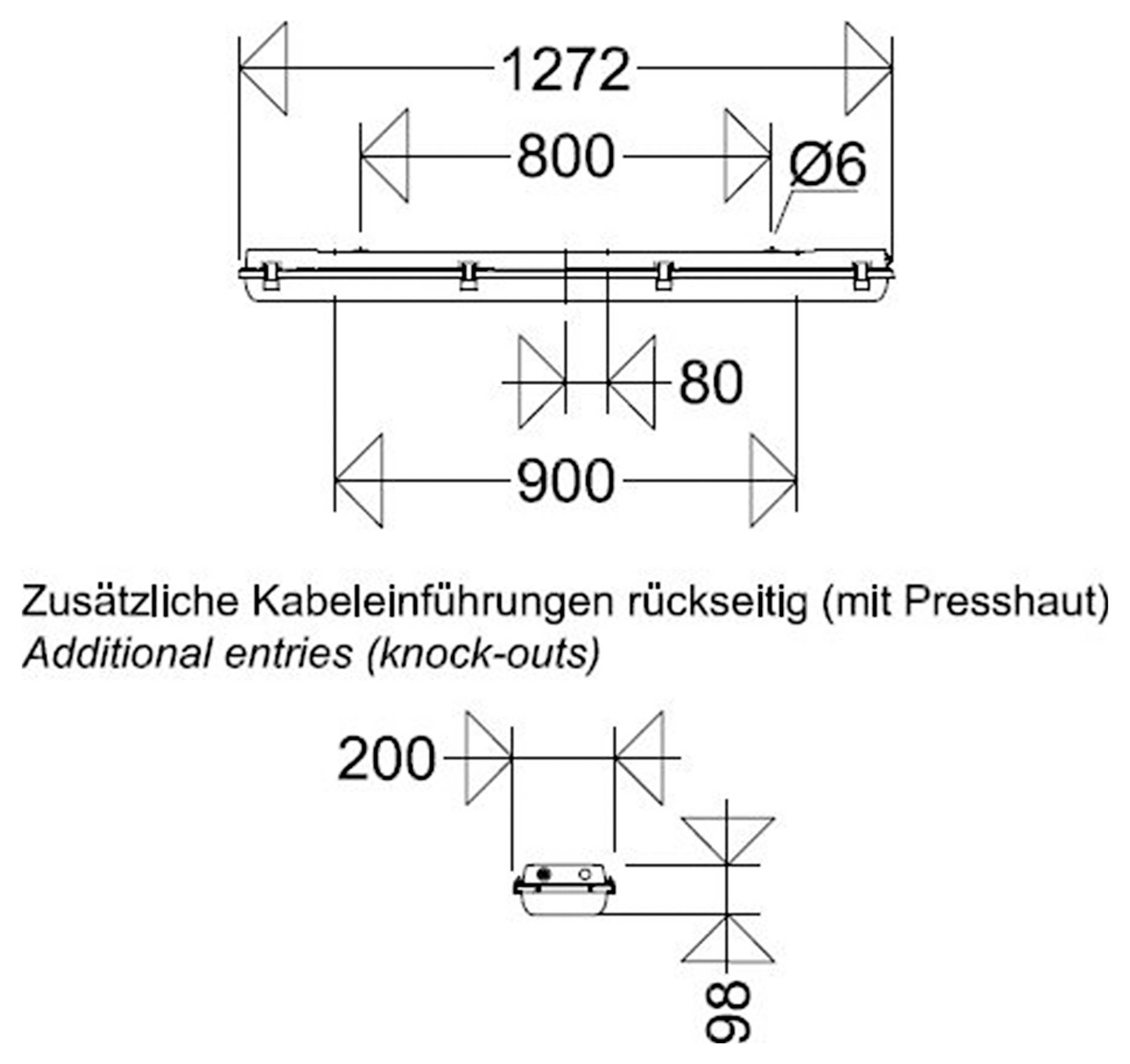

(L x W x H) 1272 x 200 x 98 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770067 Schuch 164 12L90G2 DIMC LED wet room diffusor LED (monochrome) 58 W White Grey
User & Safety Instructions
User & Safety Instructions 3770067 Schuch 164 12L90G2 DIMC LED wet room diffusor LED (monochrome) 58 W White Grey
Description
LED wet room diffusor, 58 W, 8990 lm, SKI, IP65, symmetric-wide radiant, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h>(@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), corridor function (DIMC), tub PMMA satin, plastic closure, casing glass fiber reinforced polyester, Colour gray, EAN/GTIN:4041254302355.LED wet-room diffuser lights with glass fiber reinforced polyester housing, satin finish bathtub, foamed sealing and locking clamps, of which two safety catches. Painted reflector with highly efficient Zhaga-compliant LED modules, DIMM electronic ballast with overload and short circuit protection as well as dimming function "corridor function".
