Schuch 164 15L120G2 LED wet room diffusor LED (monochrome) 80 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 80 W
- Total luminous flux= 12030 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1572 mm
80 W
- Height
98 mm
- Width
200 mm
4000 K
- Colour
White
- Total luminous flux
12030 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK04
- Factory colour
Grey
- Material
Plastic
- Dim

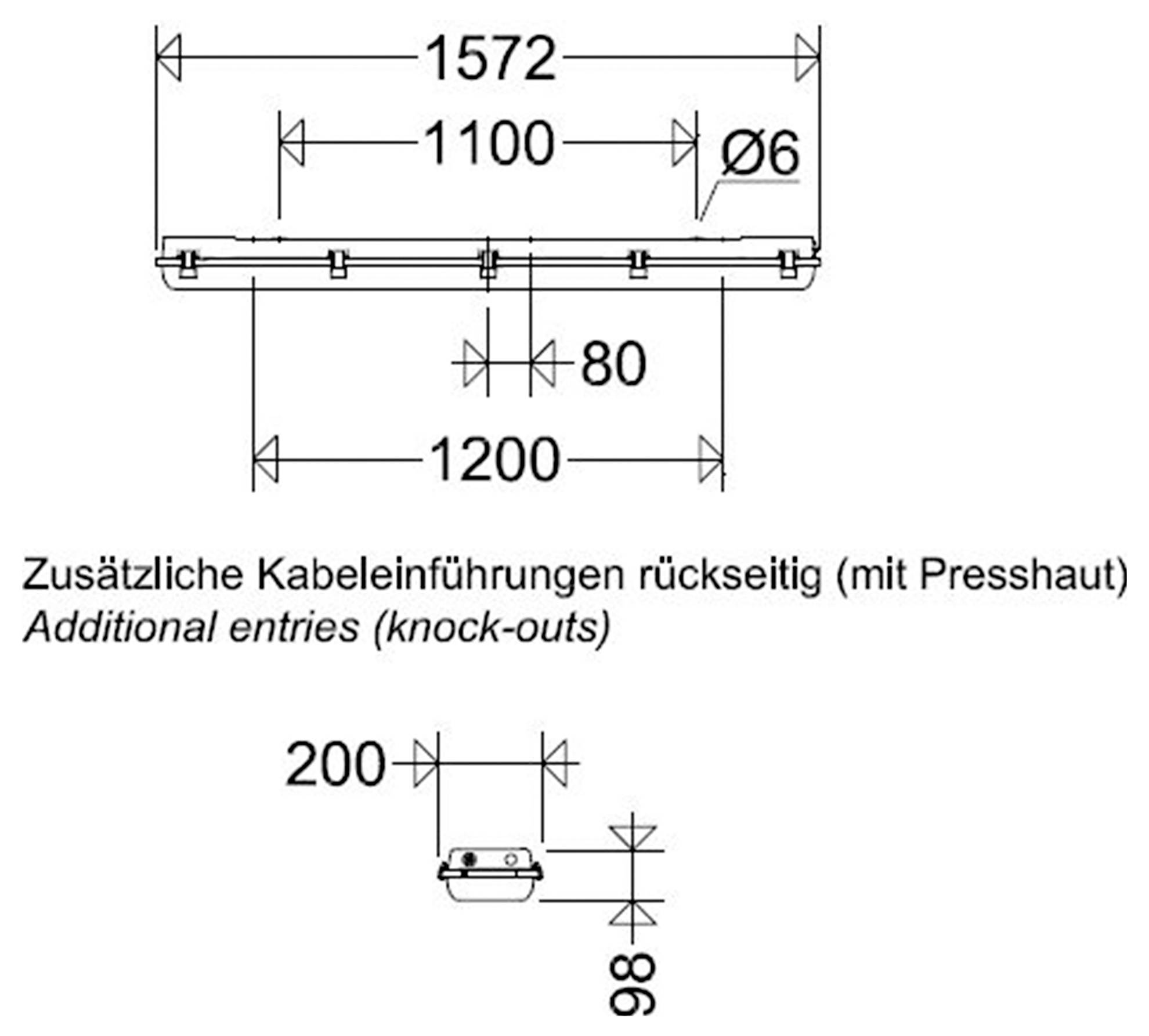

(L x W x H) 1572 x 200 x 98 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770031 Schuch 164 15L120G2 LED wet room diffusor LED (monochrome) 80 W White Grey
User & Safety Instructions
User & Safety Instructions 3770031 Schuch 164 15L120G2 LED wet room diffusor LED (monochrome) 80 W White Grey
Description
LED wet room diffusor, 80 W, 12030 lm, SKI, IP65, symmetric-wide-radiation, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000>h (@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), tub PMMA satin, plastic cover, glass-fiber reinforced polyester housing, color gray, EAN/GTIN:4041254301778.LED wet-room diffuser lights with glass fiber reinforced polyester casing, satin finish PMMA trough with impact resistance component, foamed sealing and locking clamps, of which two safety catches. Painted reflector with highly efficient Zhaga-compliant LED modules and electronic ballast with overload and short circuit protection.
