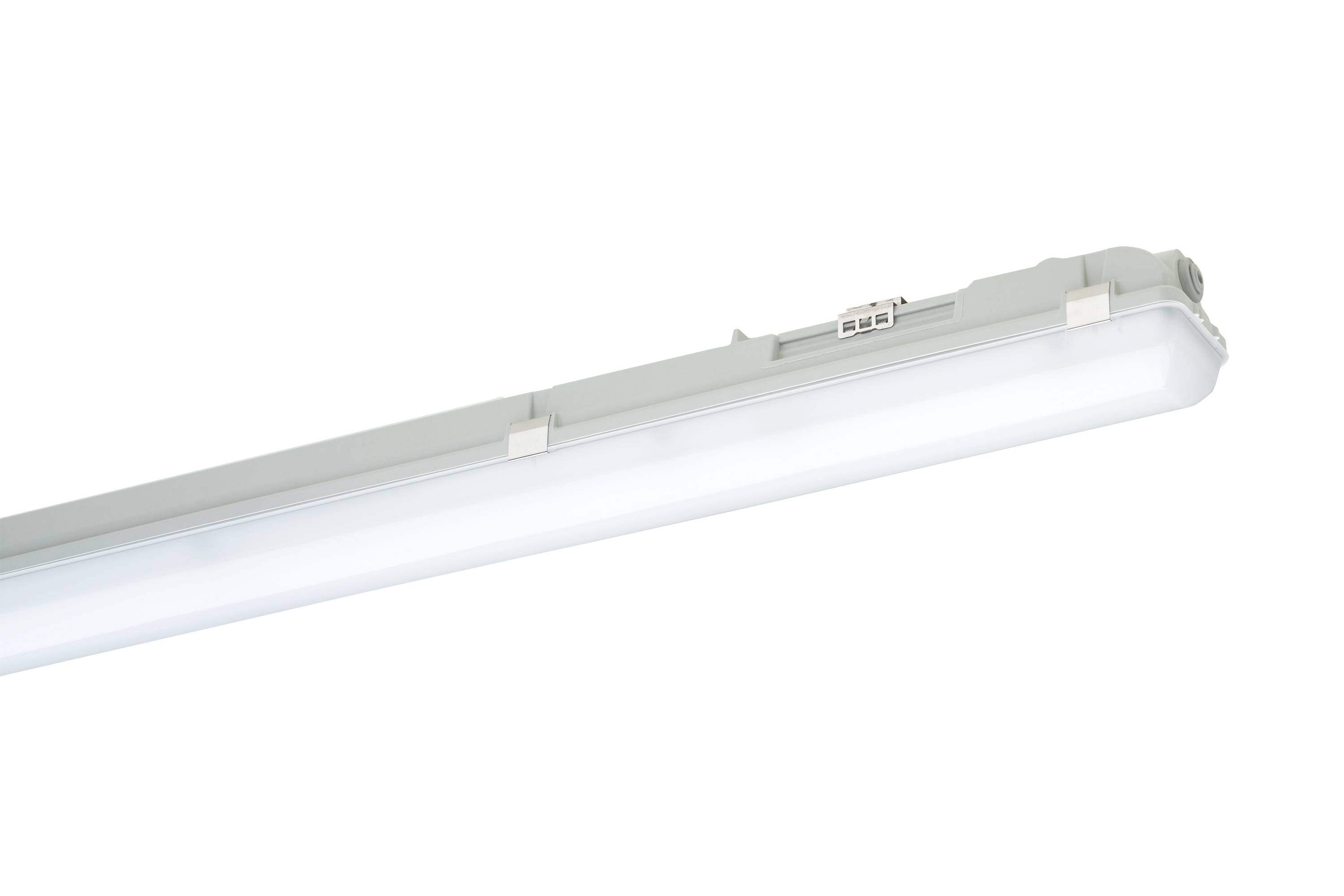

Schuch 167 12LG2 VARIO LED wet room diffusor LED (monochrome) 30 W White Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 30 W
- Total luminous flux= 4300 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1185 mm
30 W
- Height
88 mm
- Width
85 mm
4000 K
- Colour
White
- Total luminous flux
4300 lm
- Light features
Incl. ballast
Selectable luminous flux
Direct light emission
Suitable for wall mounting
Ceiling mount option
Usable as a pendant light
IP65
IK05
- Factory colour
Grey
- Material
Plastic
- Dim

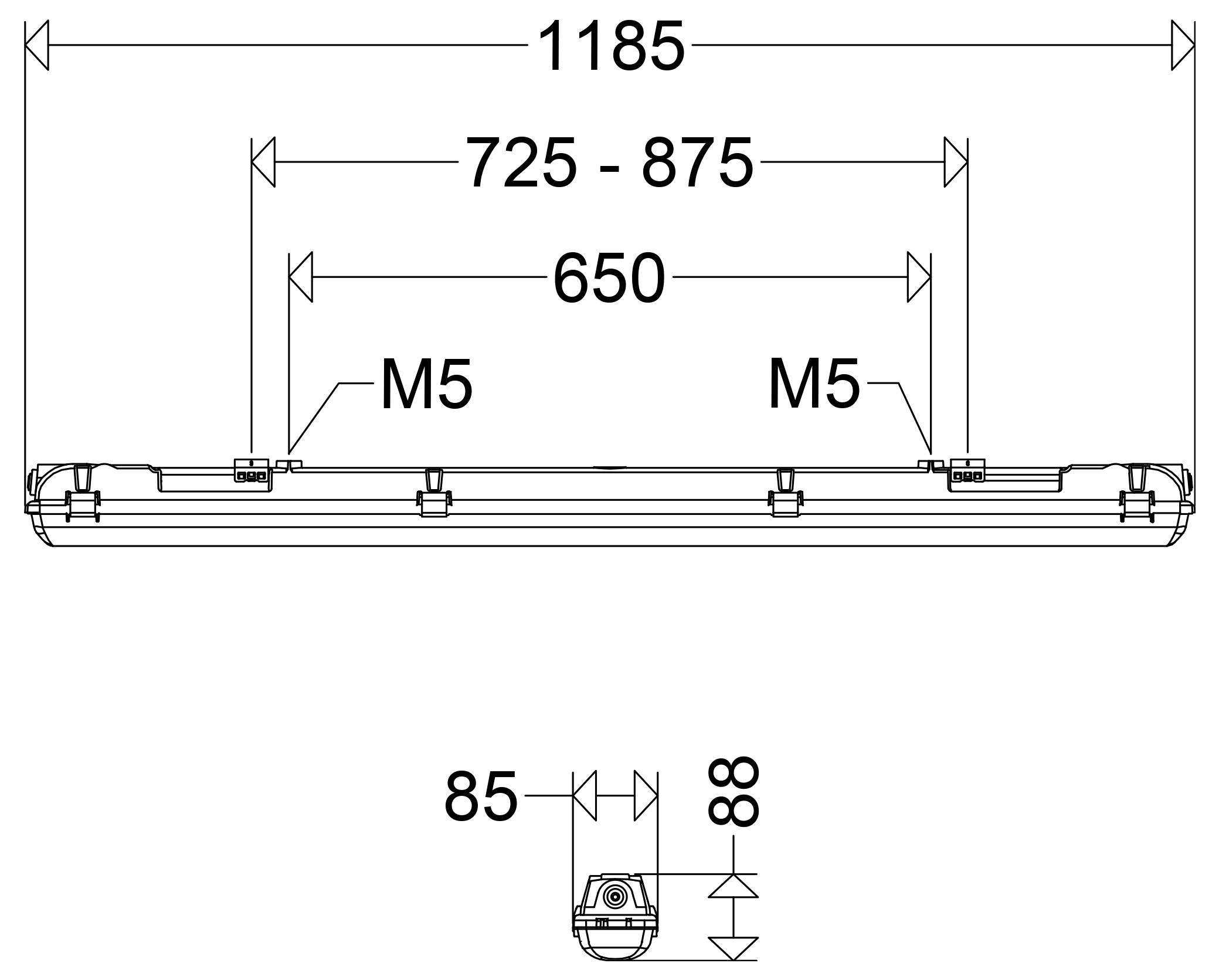

(L x W x H) 1185 x 85 x 88 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- Protection class
I
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769171 Schuch 167 12LG2 VARIO LED wet room diffusor LED (monochrome) 30 W White Grey
User & Safety Instructions
User & Safety Instructions 3769171 Schuch 167 12LG2 VARIO LED wet room diffusor LED (monochrome) 30 W White Grey
Description
LED wet room diffusor, LUXANO 2, 18 W, 30 W, 2700 lm, 4300 lm, SKI, IP65, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+35 °C, L80>50000 h (@ Ta max), L70>100000 h (@ Ta max), satin pan PMMA, stainless steel seal (1.4310), glass fiber reinforced polyester housing, color gray, 4-step adjustable luminous flux (note: only min., max values are specified), EAN/GTIN:4041254400723.LED wet-room diffuser LUXANO 2 with variable adjustable luminous flux. Glass fiber reinforced polyester casing, satin finish tub, foamed sealing and stainless steel clamps. Painted reflector with LED modules and electronic ballast, variable cable entry and mounting brackets made of stainless steel for an easy and quick mounting of the lamp.
