Schuch 190 12L40 LED sheet steel light LED (monochrome) 32 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 32 W
- Total luminous flux= 4330 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED sheet steel light
- Bulb type
LED (monochrome)
- Length
1270 mm
32 W
- Height
87 mm
- Width
180 mm
4000 K
- Colour
White
- Total luminous flux
4330 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK07
- Factory colour
Grey
- Material
Steel
Glass
- Dim

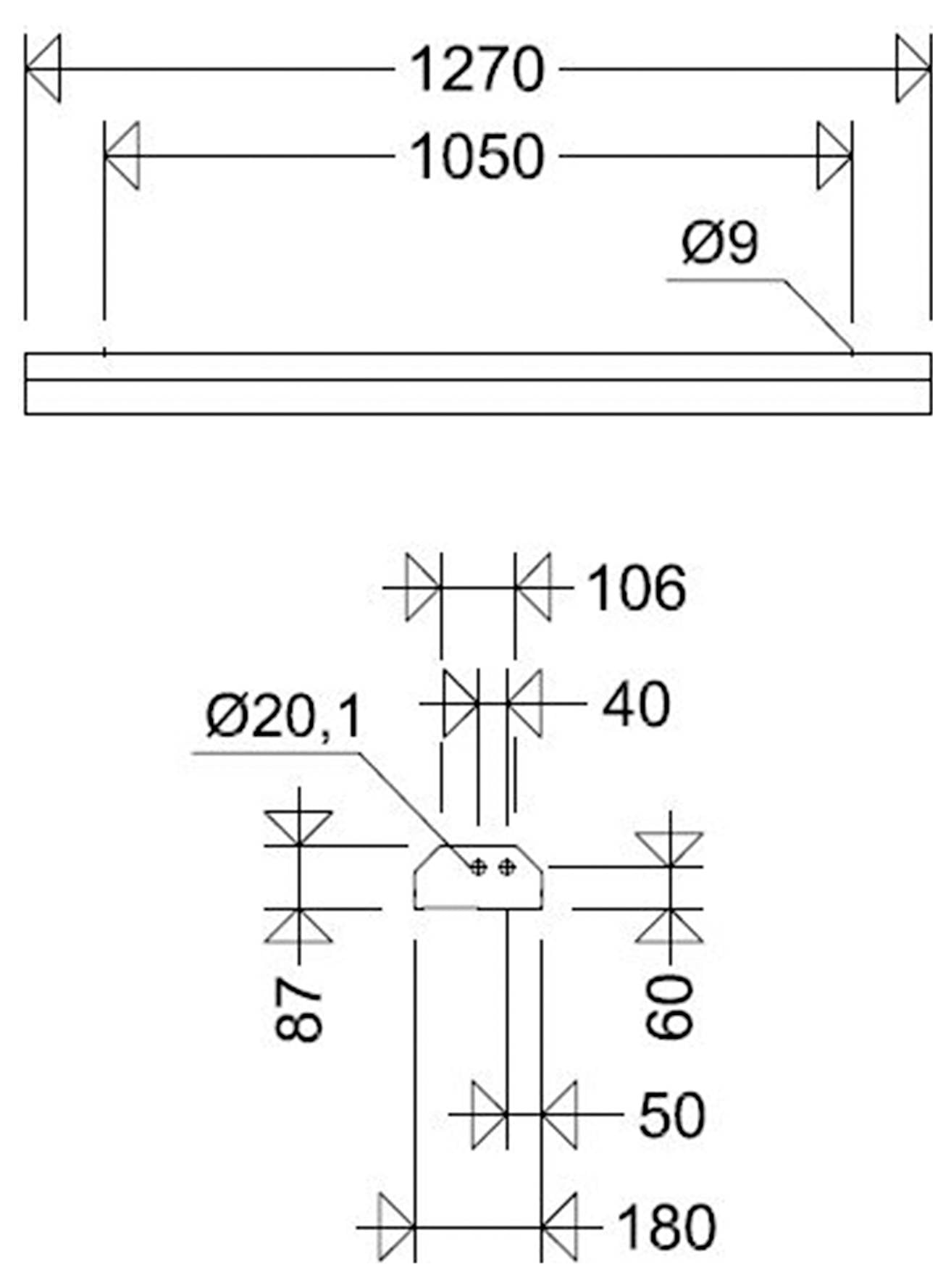

(L x W x H) 1270 x 180 x 87 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770024 Schuch 190 12L40 LED sheet steel light LED (monochrome) 32 W White Grey
User & Safety Instructions
User & Safety Instructions 3770024 Schuch 190 12L40 LED sheet steel light LED (monochrome) 32 W White Grey
Description
LED steel plate light, 32 W, 4330 lm, SKI, IP65, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+60 °C, L90>50000 h (@ Ta 25°C), L80>70000 h>(@ Ta max), L70 100000 h (@ Ta max), clear glass panel, steel casing, painted, color gray, RAL 7035, pure-out wiring (RR), EAN/GTIN:4041254342368.LED pitched roof lamp with powder-coated steel sheet housing without external locking parts, frameless safety glass and central fastener with hexagon socket. Painted aluminum reflector with Zhaga-compliant LED modules, screwed to the touch protection with safety glass (sandwich design) as well as EVG with overload and short-circuit protection.
