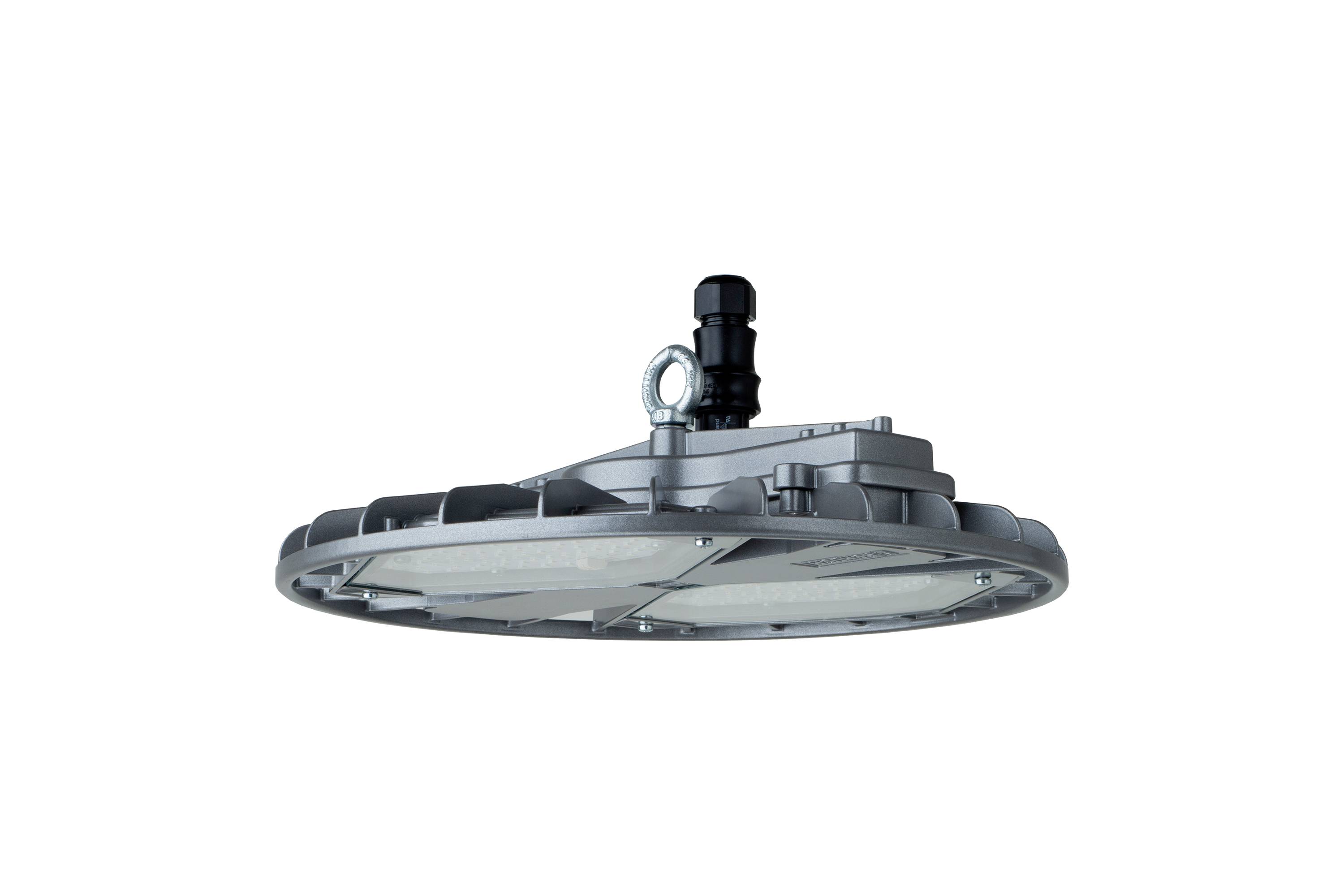

Name: Schuch 3420 L200 D 342000001 LED pendant light LED (monochrome) 123 W Grey
Brand: Schuch
SKU: 3769986

Technical specifications

Product type: LED pendant light

Bulb type: LED (monochrome)

: 123 W

: 5000 K

Colour: White

Total luminous flux: 20000 lm

Light features: Incl. ballast
Incl. cover

Protection class: I

: IP65
IK09

Factory colour: Grey

Material: Aluminium

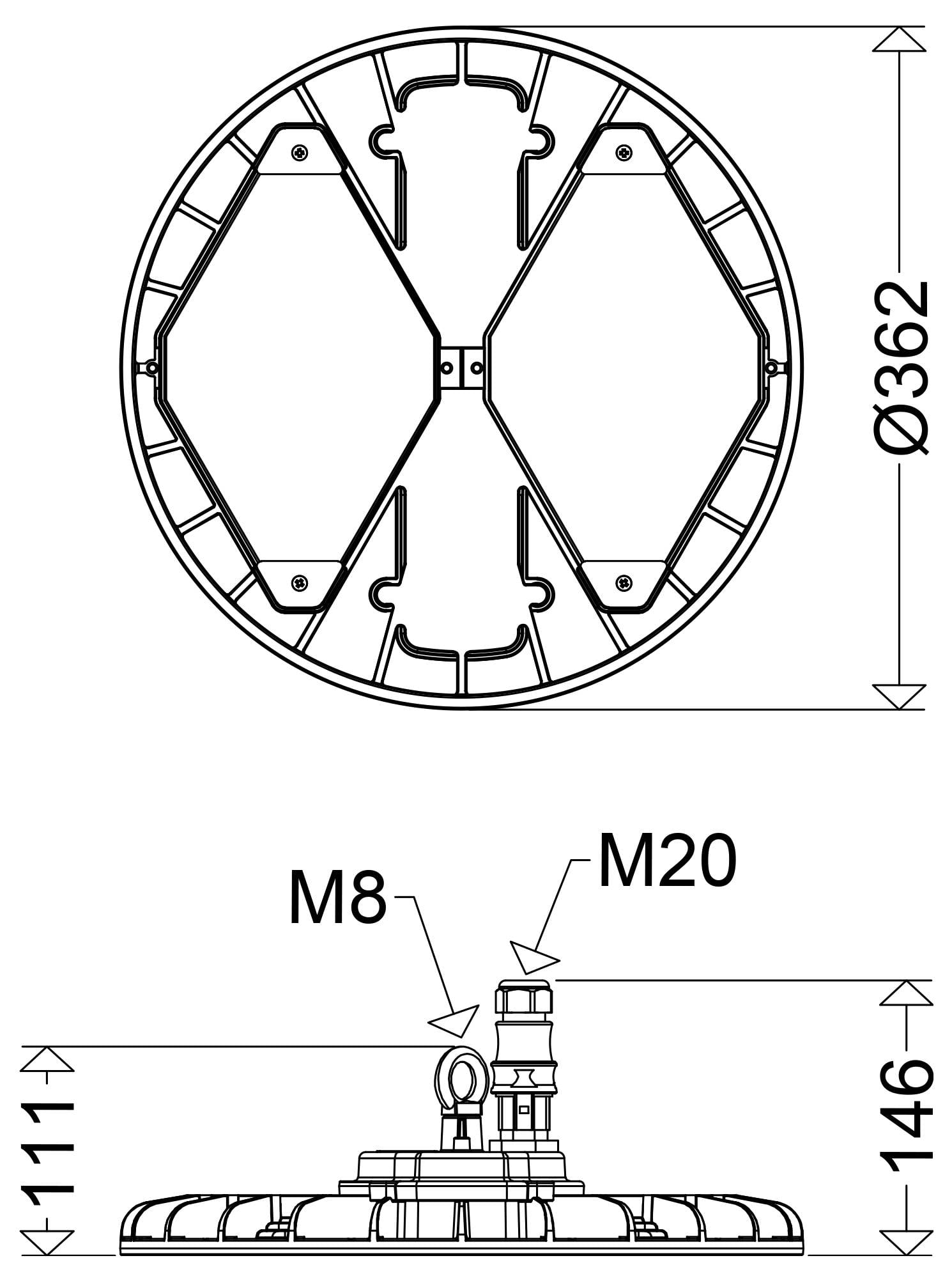

Dim: (W x H) 362 mm x 146 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature range: 5000 K

Width: 362 mm

Height: 146 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3769986 Schuch 3420 L200 D 342000001 LED pendant light LED (monochrome) 123 W Grey

Description

LED hall lamp, TRIANO disc, 123 W, 20000 lm, SKI, IP65, wide radiation, 5000 K, Ra≥ 80, Ta -25 °C/+45 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), clear glass safety glass, stainless steel cover (1.4301), die-cast aluminum housing, painted, Colour gray, DB 702, for rooms with increased danger of fire (D), EAN/GTIN:4041254350257.LED hall lamp TRIANO disc. Robust die-cast aluminum body with a cooling rib structure and integrated EVG-housing, powder-coated, integrated operating device, quick-connect connector, eyelet for 1-point suspension, LED-modules, frameless, flat safety glasses, thermally hardened. LED modules, multi-layer technology, with direct connection to the casing to ensure an optimal thermal management. EVG with overload and short-circuit protection, electrical connection via quick plug connection (FastConnect), plug pre-mounted, socket enclosed.

This text is machine translated.

Description

LED hall lamp, TRIANO disc, 123 W, 20000 lm, SKI, IP65, wide radiation, 5000 K, Ra≥ 80, Ta -25 °C/+45 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), clear glass safety glass, stainless steel cover (1.4301), die-cast aluminum housing, painted, Colour gray, DB 702, for rooms with increased danger of fire (D), EAN/GTIN:4041254350257.LED hall lamp TRIANO disc. Robust die-cast aluminum body with a cooling rib structure and integrated EVG-housing, powder-coated, integrated operating device, quick-connect connector, eyelet for 1-point suspension, LED-modules, frameless, flat safety glasses, thermally hardened. LED modules, multi-layer technology, with direct connection to the casing to ensure an optimal thermal management. EVG with overload and short-circuit protection, electrical connection via quick plug connection (FastConnect), plug pre-mounted, socket enclosed.

This text is machine translated.
