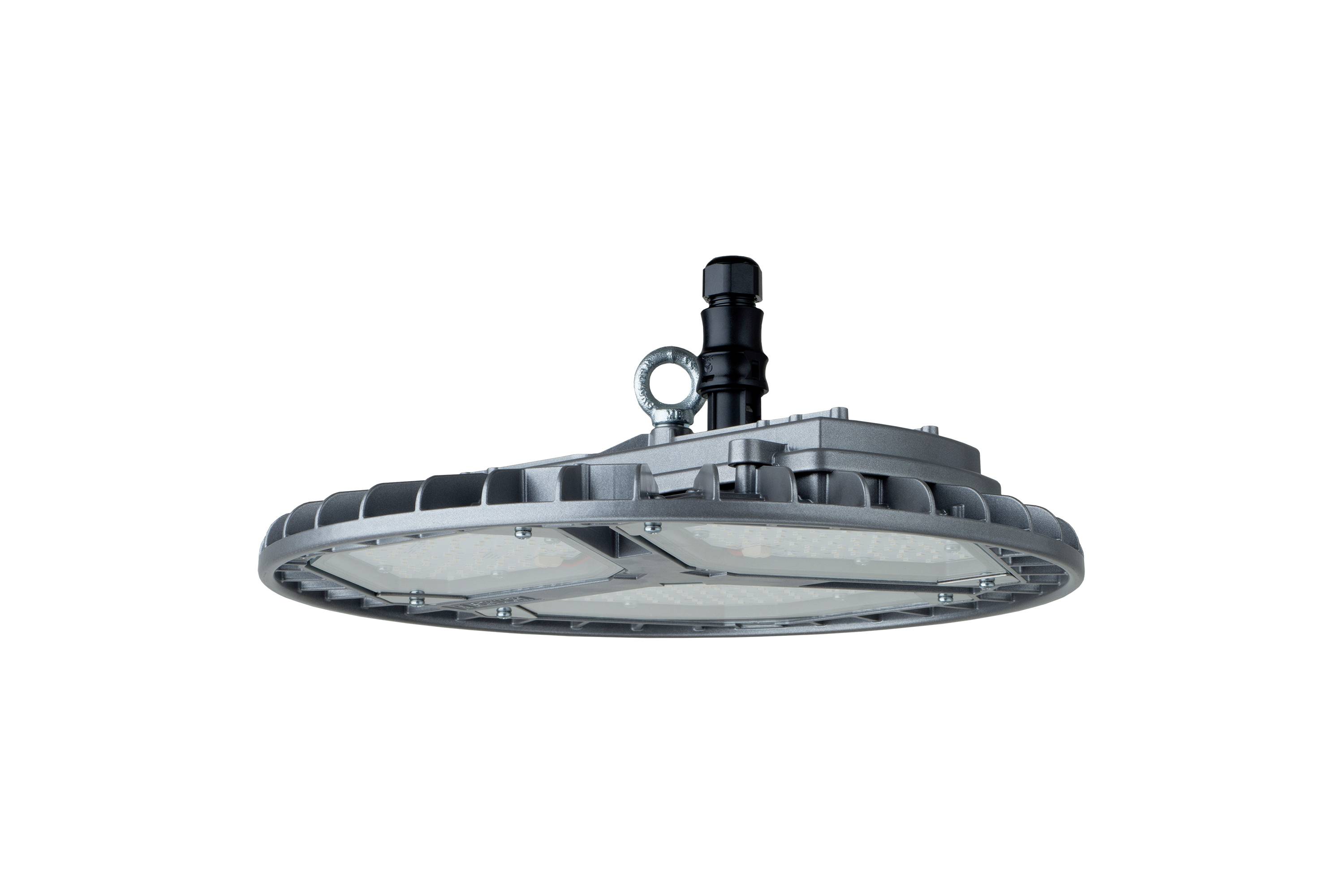

Name: Schuch 3430 L300TB D 840 343000017 LED pendant light LED (monochrome) 195 W Grey
Brand: Schuch
SKU: 3769685

Technical specifications

Product type: LED pendant light

Bulb type: LED (monochrome)

: 195 W

: 4000 K

Colour: White

Total luminous flux: 30000 lm

Light features: Incl. ballast
Incl. cover

Protection class: I

: IP65
IK09

Factory colour: Grey

Material: Aluminium

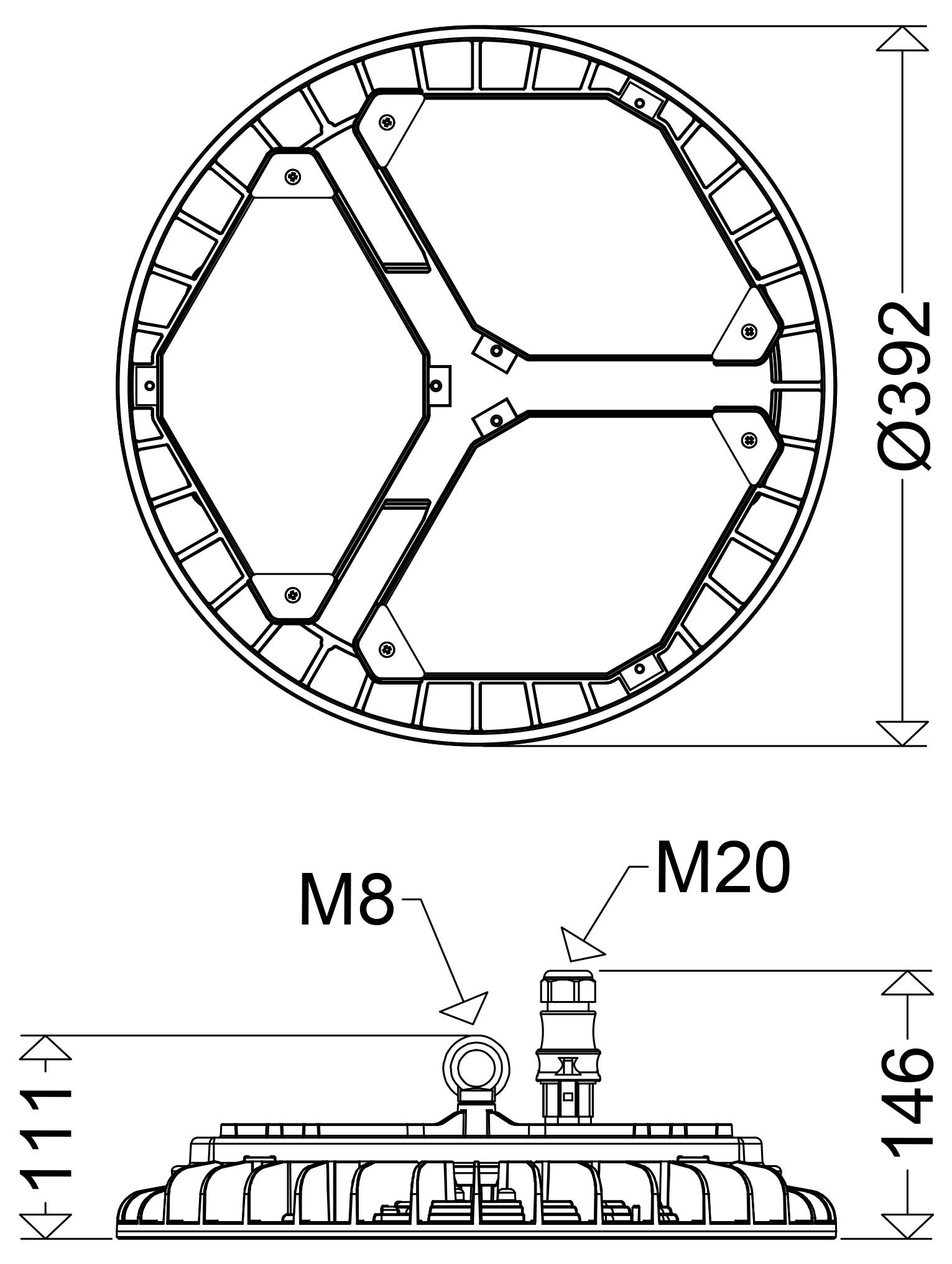

Dim: (W x H) 392 mm x 146 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature range: 4000 K

Width: 392 mm

Height: 146 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3769685 Schuch 3430 L300TB D 840 343000017 LED pendant light LED (monochrome) 195 W Grey

User & Safety Instructions

User & Safety Instructions 3769685 Schuch 3430 L300TB D 840 343000017 LED pendant light LED (monochrome) 195 W Grey

Description

LED hall lamp, TRIANO disc, 195 W, 30000 lm, SKI, IP65, deep-wide radiant, 4000 K, Ra≥ 80, Ta -25 °C/+45 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), optical PC clear, stainless steel cover (1.4301), die-cast aluminum housing, painted, Colour gray, DB 702, for food areas (IFS), for rooms with increased fire hazard (D), EAN/GTIN:4041254361413.LED hall lamp TRIANO disc. Robust die-cast aluminum body with a heat sink structure and integrated electronic ballast housing, powder-coated, built-in control unit, quick connector, eyelet for 1-point suspension, LED modules as well as PC covers with integrated optics. LED modules, multi-layer technology, with direct connection to the casing to ensure an optimal thermal management. EVG with overload and short-circuit protection, electrical connection via quick plug connection (FastConnect), plug pre-mounted, socket enclosed.

This text is machine translated.

Description

LED hall lamp, TRIANO disc, 195 W, 30000 lm, SKI, IP65, deep-wide radiant, 4000 K, Ra≥ 80, Ta -25 °C/+45 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), optical PC clear, stainless steel cover (1.4301), die-cast aluminum housing, painted, Colour gray, DB 702, for food areas (IFS), for rooms with increased fire hazard (D), EAN/GTIN:4041254361413.LED hall lamp TRIANO disc. Robust die-cast aluminum body with a heat sink structure and integrated electronic ballast housing, powder-coated, built-in control unit, quick connector, eyelet for 1-point suspension, LED modules as well as PC covers with integrated optics. LED modules, multi-layer technology, with direct connection to the casing to ensure an optimal thermal management. EVG with overload and short-circuit protection, electrical connection via quick plug connection (FastConnect), plug pre-mounted, socket enclosed.

This text is machine translated.
