Name: Schuch 541 1601 G2 730 541000016 LED light attachment LED (monochrome) 17 W Grey
Brand: Schuch
SKU: 3769441

Technical specifications

Product type: LED light attachment

Bulb type: LED (monochrome)

: 17 W

: 3000 K

Colour: White

Total luminous flux: 2600 lm

Light features: Incl. ballast

Protection class: II

: IP54
IK06

Factory colour: Grey

Material: Aluminium
Plastic

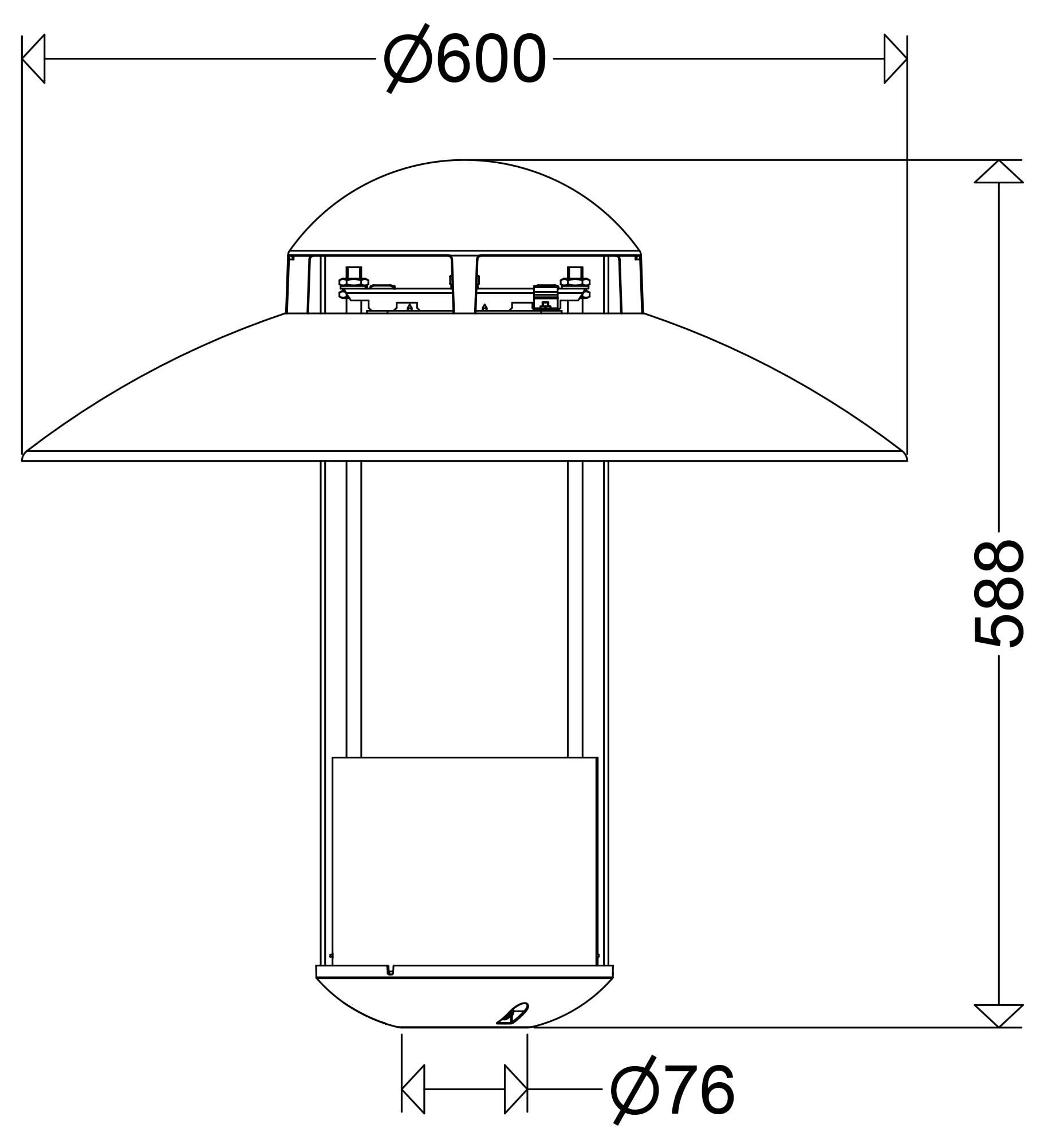

Dim: (W x H) 600 mm x 588 mm

: n.rel.

Colour rendering index: 70-79

Colour temperature range: 3000 K

Width: 600 mm

Height: 588 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3769441 Schuch 541 1601 G2 730 541000016 LED light attachment LED (monochrome) 17 W Grey

User & Safety Instructions

User & Safety Instructions 3769441 Schuch 541 1601 G2 730 541000016 LED light attachment LED (monochrome) 17 W Grey

Description

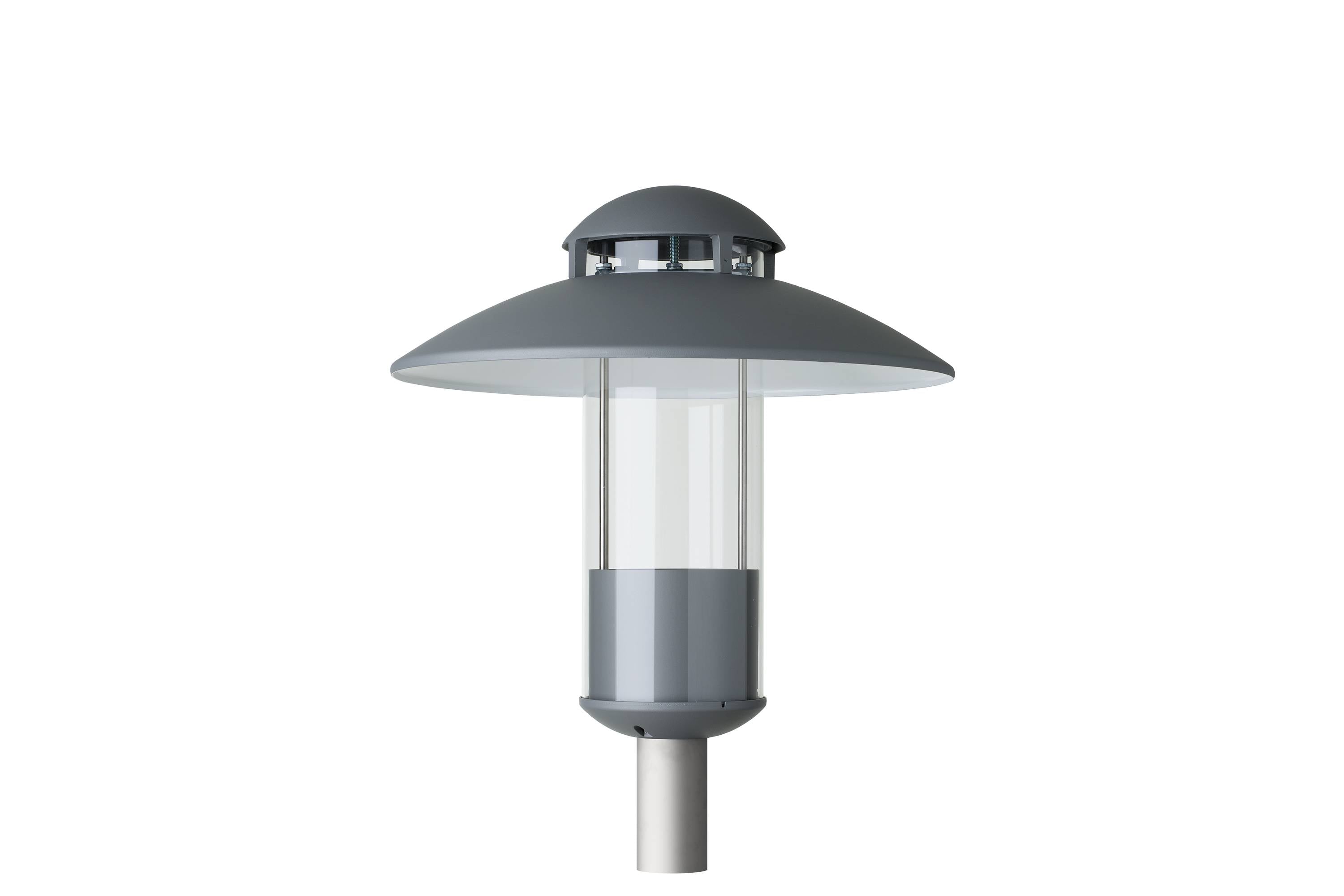

LED-Mushroom lamp, CAPA, 17 W, 2600 lm, SKII, IP54, asymmetric, wide beam, 3000 K, Ra≥ 70, Ta -40 °C/+35 °C, L95>100000 h (@ Ta max), PMMA clear cylinder, Lamp roof (aluminum), aluminum housing, painted, Colour gray, DB 702, ULOR=0%, Attention: Light consists of 2 packing pieces (mast unit and roof), delivery condition: partially mounted!, EAN/GTIN:4041254393780. Modern LED mushroom lamp CAPA, consisting of powder-coated mast base and roof made of aluminum as well as clear PMMA cylinder glass. LED module and EVG-unit wired ready to connect, disconnect plug connection for the network connection terminal and strain relief for connection cable. Zhaga-conforming LED module with highly efficient optics, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting on straight light masts Ø 76 mm (for Ø 60 mm see "Optional accessories").
