Name: Schuch 556 1603R G2 730 556000024 LED light attachment LED (monochrome) 35 W Grey
Brand: Schuch
SKU: 3769462

Technical specifications

Product type: LED light attachment

Bulb type: LED (monochrome)

: 35 W

: 3000 K

Colour: White

Total luminous flux: 5020 lm

Light features: Incl. ballast

Protection class: II

: IP54
IK06

Factory colour: Grey

Material: Aluminium
Plastic

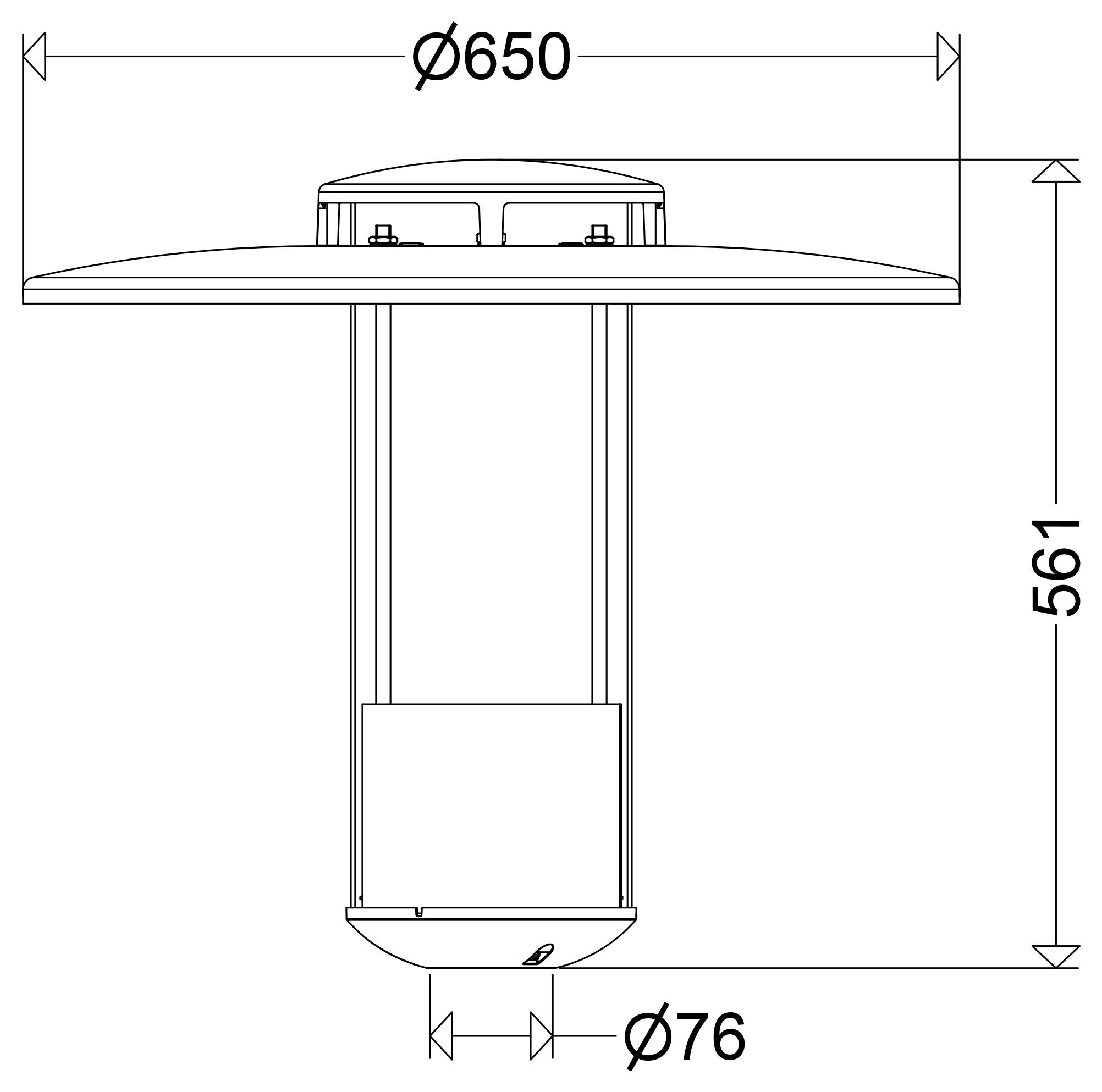

Dim: (W x H) 650 mm x 561 mm

: n.rel.

Colour rendering index: 70-79

Colour temperature range: 3000 K

Width: 650 mm

Height: 561 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3769462 Schuch 556 1603R G2 730 556000024 LED light attachment LED (monochrome) 35 W Grey

User & Safety Instructions

User & Safety Instructions 3769462 Schuch 556 1603R G2 730 556000024 LED light attachment LED (monochrome) 35 W Grey

Description

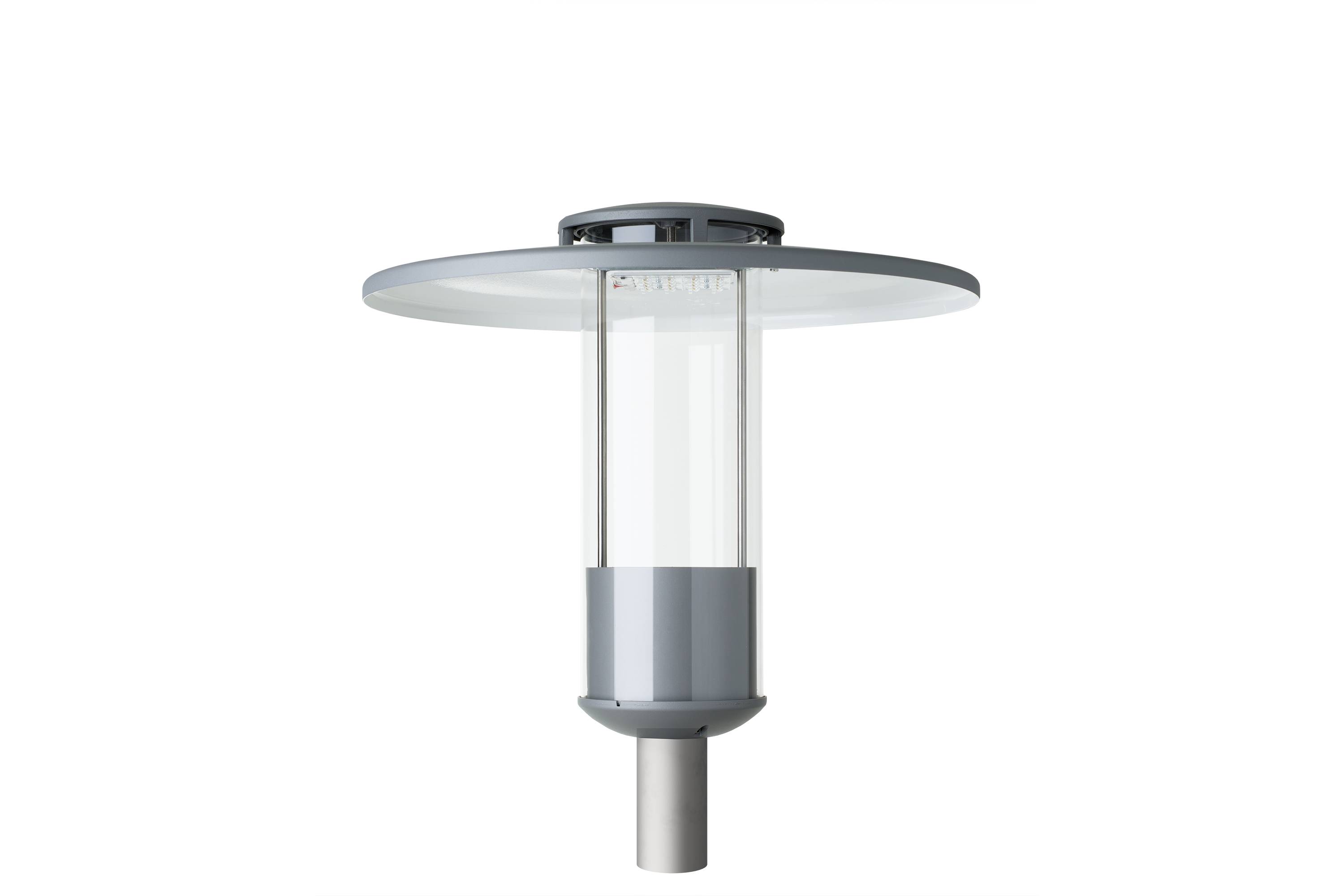

LED-Mushroom lamp, CUPINA, 35 W, 5020 lm, SKII, IP54, rotational-symmetric-radiation, 3000 K, Ra≥ 70, Ta -40 °C/+35 °C, L95>100000 h (@ Ta max), cylinder PMMA clear, Lamp roof (aluminum), housing aluminum, painted, Colour gray, DB 702, ULOR=0%, Attention: Light consists of 2 packing pieces (mast unit and roof), delivery condition: partially mounted!, EAN/GTIN:4041254399515. Modern LED mushroom lamp CUPINA, consisting of powder-coated mast base and roof made of aluminum as well as clear PMMA cylinder glass. LED module and EVG-unit wired ready to connect, disconnect plug connection for the network connection terminal and strain relief for connection cable. Zhaga-conforming LED module with highly efficient optics, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting on straight light masts Ø 76 mm (for Ø 60 mm see "Optional accessories").

This text is machine translated.

Description

LED-Mushroom lamp, CUPINA, 35 W, 5020 lm, SKII, IP54, rotational-symmetric-radiation, 3000 K, Ra≥ 70, Ta -40 °C/+35 °C, L95>100000 h (@ Ta max), cylinder PMMA clear, Lamp roof (aluminum), housing aluminum, painted, Colour gray, DB 702, ULOR=0%, Attention: Light consists of 2 packing pieces (mast unit and roof), delivery condition: partially mounted!, EAN/GTIN:4041254399515. Modern LED mushroom lamp CUPINA, consisting of powder-coated mast base and roof made of aluminum as well as clear PMMA cylinder glass. LED module and EVG-unit wired ready to connect, disconnect plug connection for the network connection terminal and strain relief for connection cable. Zhaga-conforming LED module with highly efficient optics, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting on straight light masts Ø 76 mm (for Ø 60 mm see "Optional accessories").

This text is machine translated.
