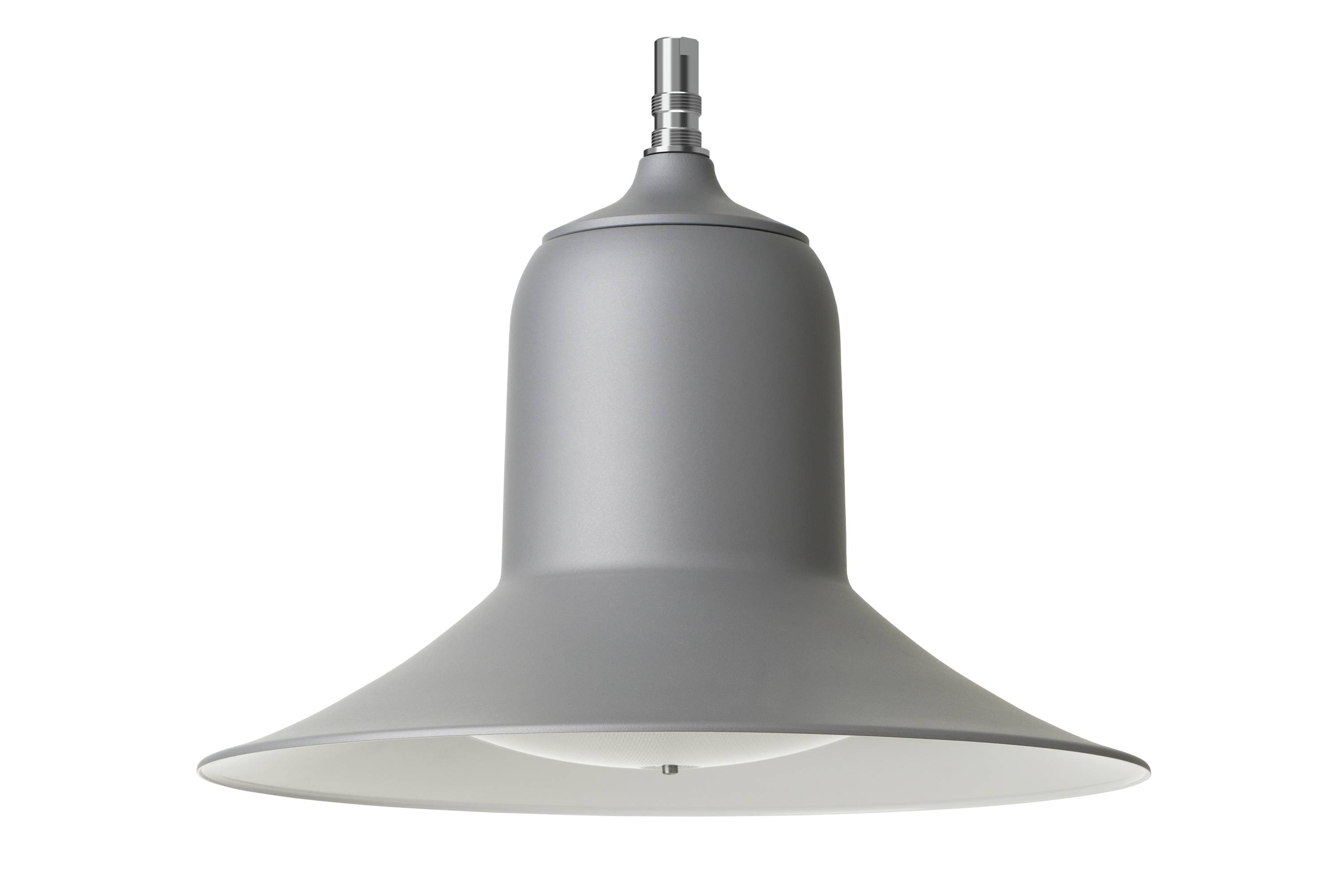

Schuch 564 0802 G2 564000002 LED pendant light LED (monochrome) 13 W Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
LED pendant light
- Bulb type
LED (monochrome)
13 W
4000 K
- Colour
White
- Total luminous flux
2100 lm
- Light features
Incl. ballast
- Protection class
II
IP54
IK05
- Factory colour
Grey
- Material
Aluminium
Plastic
- Dim

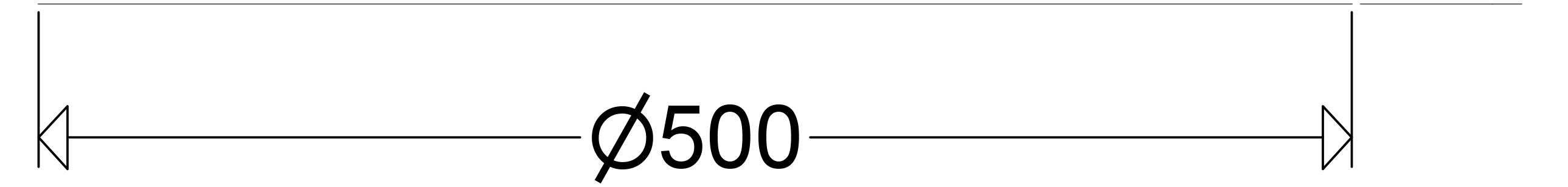

(Ø x H) 500 mm x 383 mm
n.rel.
- Colour rendering index
70-79
- Colour temperature range
4000 K
- Width
500 mm
- Height
383 mm
- (Ø)
500 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769373 Schuch 564 0802 G2 564000002 LED pendant light LED (monochrome) 13 W Grey
User & Safety Instructions
User & Safety Instructions 3769373 Schuch 564 0802 G2 564000002 LED pendant light LED (monochrome) 13 W Grey
Description
LED Pendant Light, BELLA, 13 W, 2100 lm, SKII, IP54, asymmetric wide-radiation, 4000 K, Ra≥ 70, Ta -40 °C/+35 °C, L95>100000 h (@ Ta max), tub PMMA varnished, stainless steel cap, aluminum casing, painted, Colour gray, DB 702, EAN/GTIN:4041254391205. Decorative LED hanging light BELLA, consists of powder-coated aluminum casing and clear ripper PMMA cover. Device holder with LED modules, optics, EVG, connection clamp and strain relief, can be replaced without tools. Zhaga-conforming LED module with highly efficient optics, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Attachment to mast attachments with 3/4" internal thread.
