Schuch 931000001 e9310F LED (monochrome) Handheld LED light mains-powered 11 W 600 lm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Dim

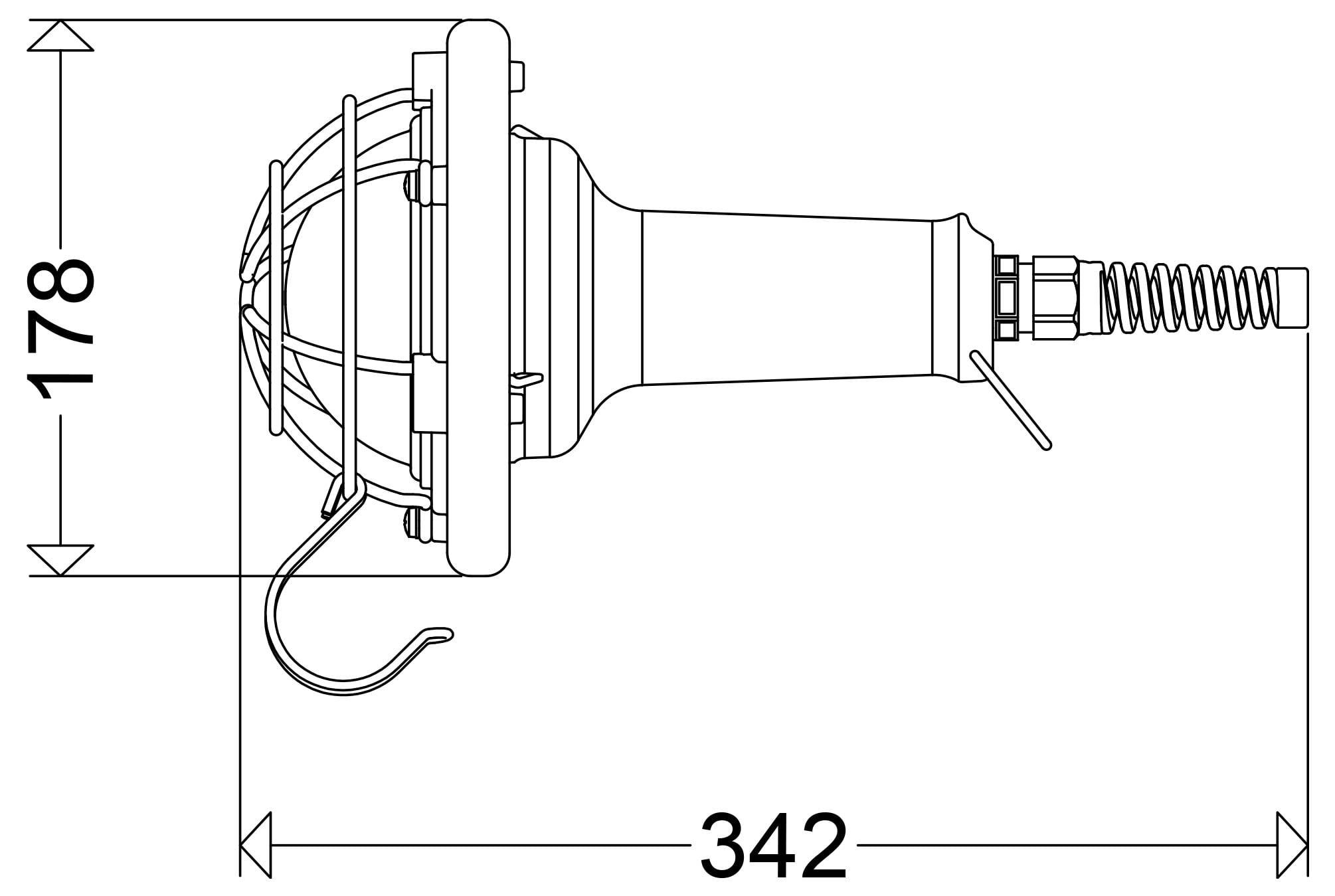

(L x W x H) 342 x 162 x 178 mm
- Product type
Handheld LED light
- Bulb type
LED (monochrome)
- Colour temperature type
6500 K
11 W
- Luminous flux
600 lm
- Width
162 mm
- Height
178 mm
- Length
342 mm
- Protection class
I
- Power supply (LOV)
mains-powered
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770292 Schuch 931000001 e9310F LED (monochrome) Handheld LED light mains-powered 11 W 600 lm
User & Safety Instructions
User & Safety Instructions 3770292 Schuch 931000001 e9310F LED (monochrome) Handheld LED light mains-powered 11 W 600 lm
Description

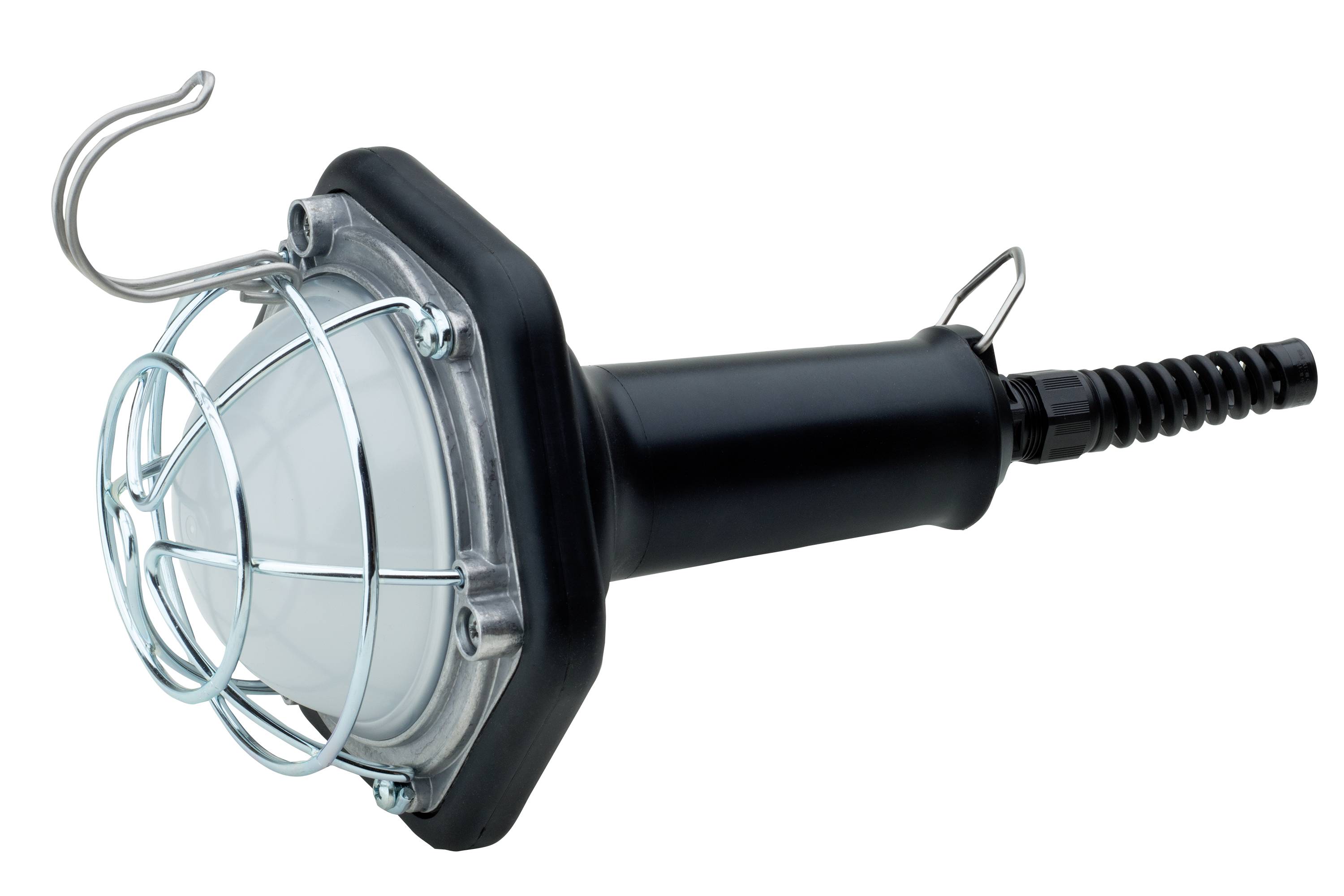

EX LED hand lamp, ExSPECT, EX-Zone 1/21/2/22, 11 W, 600 lm, SKI, IP66, rotational-symmetric-radiation, 6500 K, Ta -25 °C/+40 °C, L70>100000 h (@ Ta max), tub PC satin, shutter steel galvanized, protective basket, casing rubber (EPDM), Colour black, EAN/GTIN:4041254341897.Explosion-proof LED hand-held lamp EXSPECT for zone 1/21. Handle made of rubber (EPDM) with eyelet, strain relief and cable entry. Electric block made of die-cast aluminum with LED module and integrated EVG. Satin finish cover made of polycarbonate, galvanized protective cage made of round steel with basket hook to hang the lamp.
