Schuch e821 12L120 DIMD LED sheet steel light LED (monochrome) 79 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 79 W
- Total luminous flux= 11470 lm
- Colour temperature= 6500 K
- White
Technical specifications
- Product type
LED sheet steel light
- Bulb type
LED (monochrome)
- Length
1204 mm
79 W
- Height
99 mm
- Width
282 mm
6500 K
- Colour
White
- Total luminous flux
11470 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
IP65
IK07
- Material
Steel
Glass
- Dim

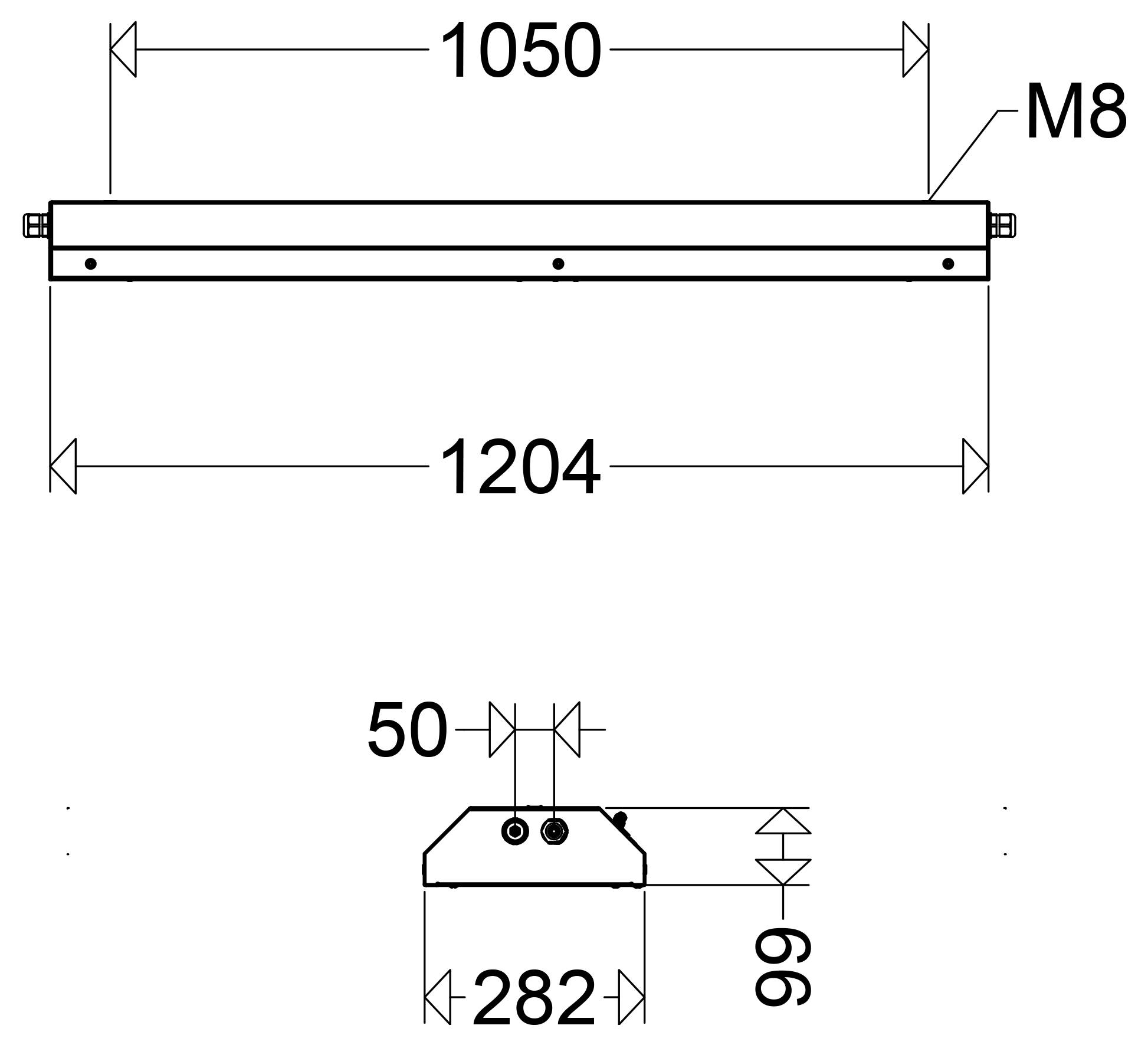

(L x W x H) 1204 x 282 x 99 mm
n.rel.
- Light bulb included
Yes
- Colour temperature range
6500 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770223 Schuch e821 12L120 DIMD LED sheet steel light LED (monochrome) 79 W White
User & Safety Instructions
User & Safety Instructions 3770223 Schuch e821 12L120 DIMD LED sheet steel light LED (monochrome) 79 W White
Description
EX LED steel plate light, EX-Zone 1/21/2/22, 79 W, 11470 lm, SKI, IP65, wide radiation, 6500 K, Ra≥ 80, Ta -30 °C/+55 °C, L80B50>100000 h (@ Ta max)>, L80B50 100000 h>(@ Ta 25°C), L90B50 80000 h (@ Ta 25°C), DALI (DIMD), clear safety glass, stainless steel shutter (1.4305), steel housing, Painted, gray color, RAL 7035, pure-out wiring (RR), LABS-tested according to VDMA 24364-C2-L, EAN/GTIN:4041254349046. Explosion-proof LED pitched roof lamp for zone 1/21. Steel plate housing light-gray powder-painted (RAL 7035), frameless hinged safety glass, central lock with opposite interior hinges, silicone seal. Reflector made of sheet steel painted white, can be folded and removed, with cast LED modules and glare elements. Encapsulated EVG with overvoltage, overload and short-circuit protection.
