Schuch e840 12L85 PM 840050903 LED lamp post LED (monochrome) 54 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LED lamp post
- Bulb type
LED (monochrome)
54 W
6500 K
- Colour
White
- Total luminous flux
8300 lm
- Light features
Incl. ballast
- Protection class
I
IP66
IK10
- Material
Plastic
- Dim

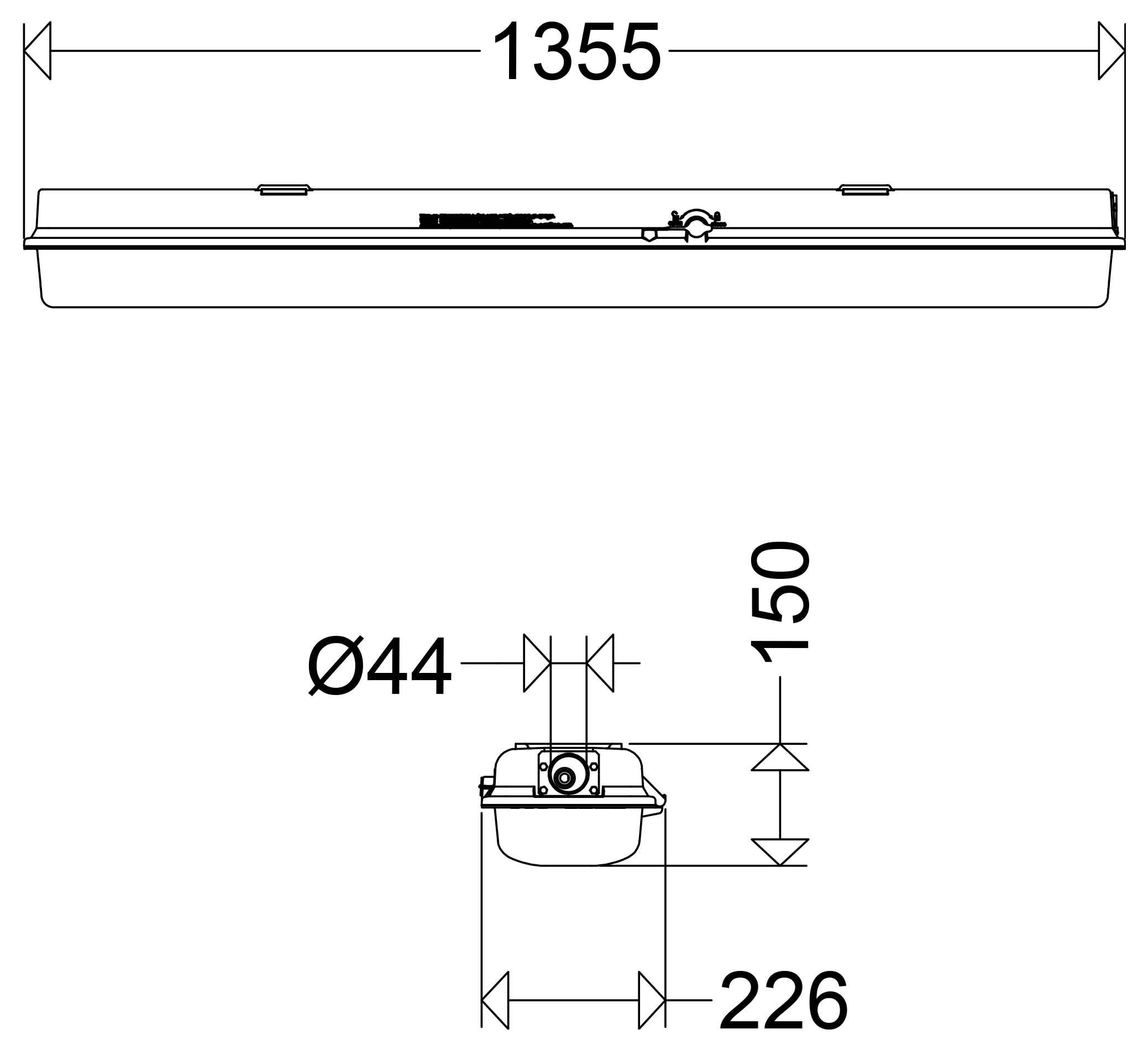

(L x W x H) 1355 x 226 x 150 mm
n.rel.
- Colour temperature range
6500 K
- Width
226 mm
- Height
150 mm
- Length
1355 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770420 Schuch e840 12L85 PM 840050903 LED lamp post LED (monochrome) 54 W
User & Safety Instructions
User & Safety Instructions 3770420 Schuch e840 12L85 PM 840050903 LED lamp post LED (monochrome) 54 W
Description

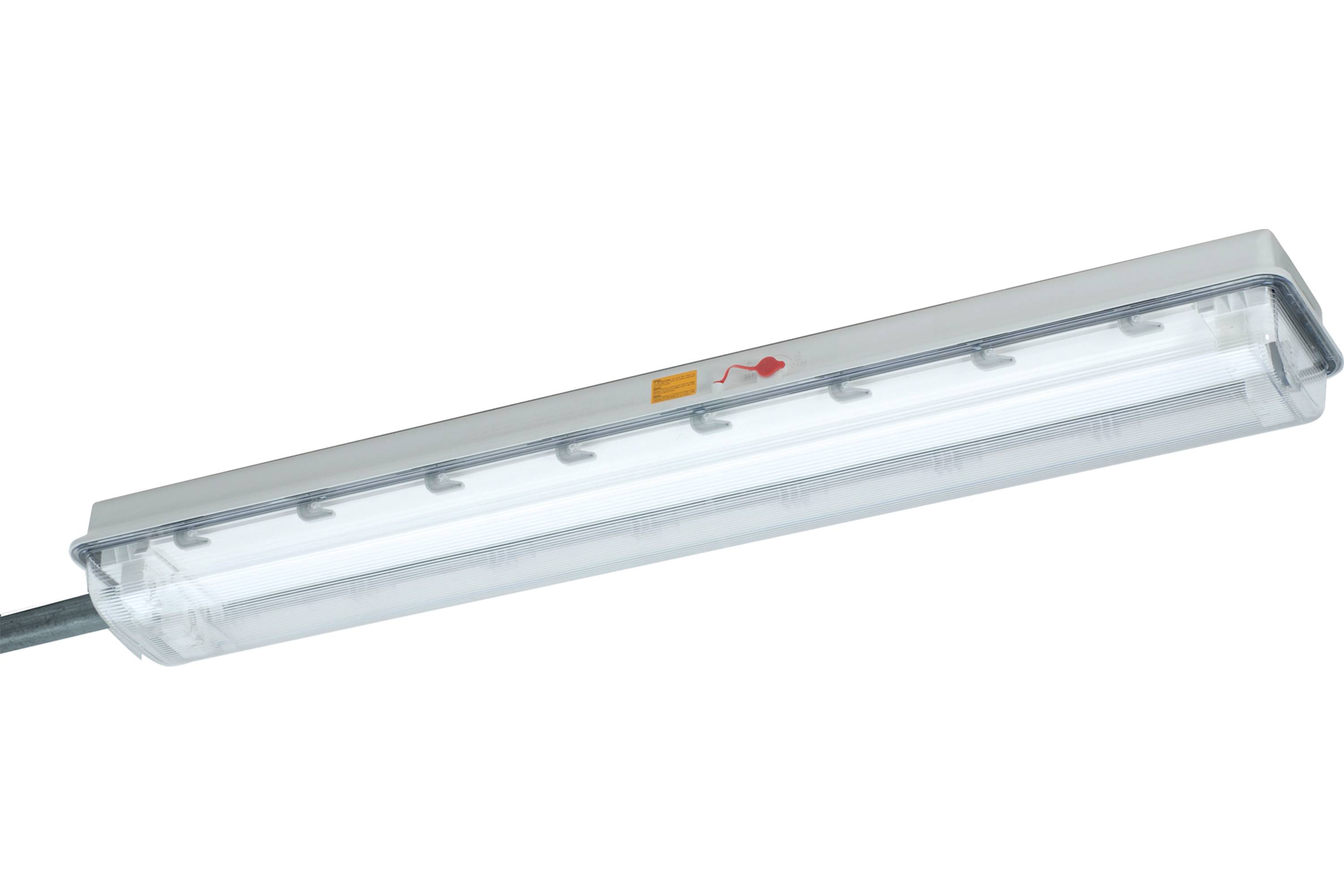

EX LED mast light, EX-Zone 1/21/2/22, 54 W, 8300 lm, SKI, IP66, broad radiation, 6500 K, Ra≥ 80, Ta -25 °C/+50 °C, L80B50>100000 h (@ Ta max), L80B50>100000 h (@ Ta 25°C), L90B50>75000 h (@ Ta 25°C), tub PC clear with interior prisms, shutter plastic, housing glass-fiber reinforced polyester, color gray, EAN/GTIN:4041254286044. Explosion-protected LED mast-signal lamp with central closure for zone 1/21. Glass fiber reinforced polyester housing, clear termination tub made of polycarbonate with inner prisms and silicone seal. Aluminium reflector painted with cast LED modules and satin finish blend elements, folded and removable. Encapsulated EVG with overvoltage, overload and short-circuit protection.
