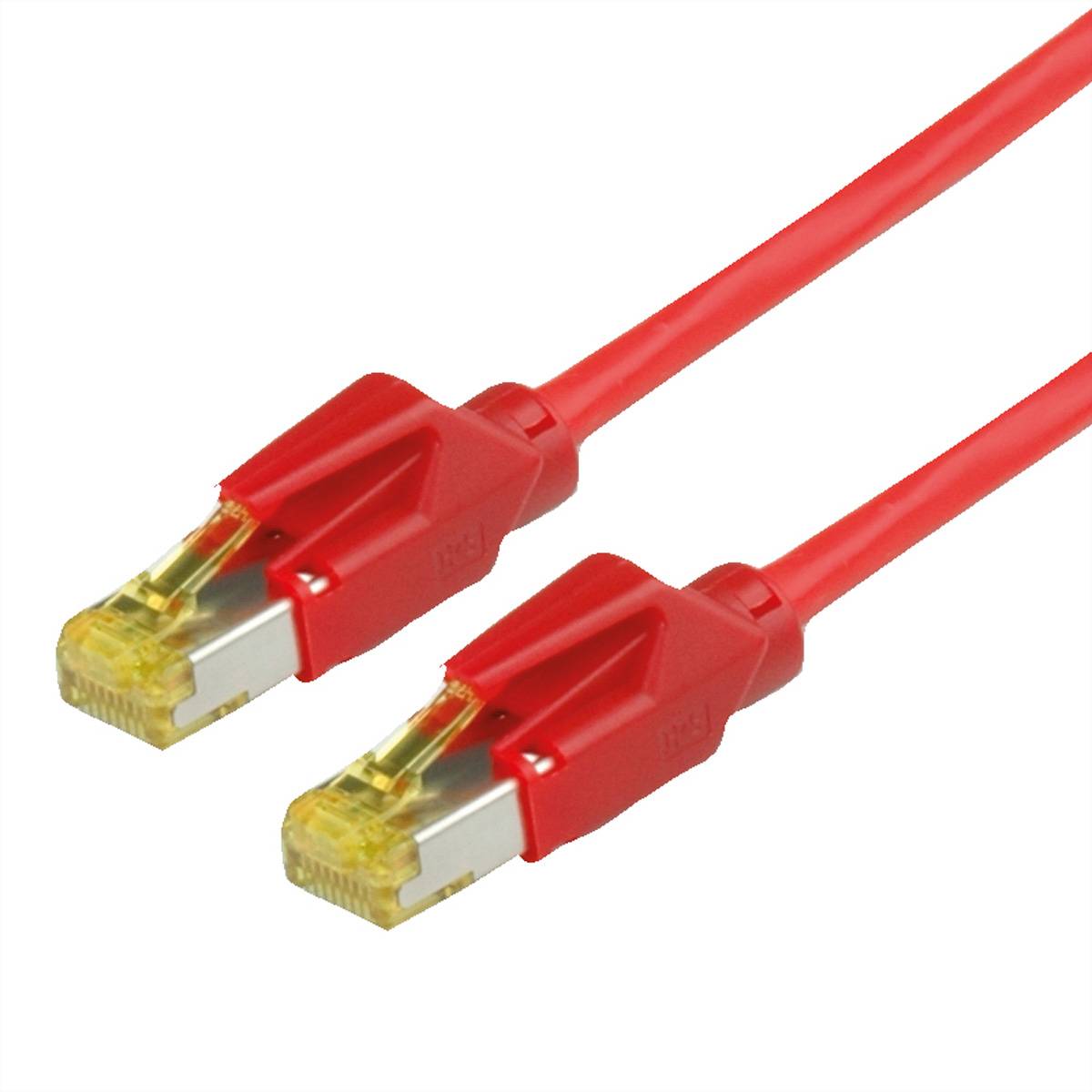

Secomp 21.05.9531 RJ45 Patch cable CAT 6A S/FTP 3.00 m Red (clear) double shielding, Halogen-free, Flame-retardant 1 pc(
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
S/FTP
Connection type
RJ45
Cable length
3.00 m
Datasheet (PDF)
Highlights & Details
Secomp CAT 6a, S/FTP, 3 m network cable red Cat6a S/FTP (S-STP)
- 3 m.
- RJ-45 plug
- RJ-45 plug
- Cat6a S/FTP (S-STP)
- Plug & Play
- Red
Technical specifications
- Connection 1 RJ-45
- Connection 2 RJ-45
- Product type
Patch cable
CAT 6A
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
3.00 m
- Factory colour
Red (clear)
- Connector version
straight
- Cable features
double shielding
Halogen-free
Flame-retardant
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Halogen-free
Yes
- Screen size diagonal (inches)
24 inch
- UKCA
not relevant
- Input impedance
100 Ohm
- Cable diameter
5.9 mm
- Plug and Play
yes
- Frequency
500 MHz
Documents & Downloads
Datasheet
Datasheet 3797975 Secomp 21.05.9531 RJ45 Patch cable CAT 6A S/FTP 3.00 m Red (clear) double shielding, Halogen-free, Flame-retardant 1 pc(
User & Safety Instructions
User & Safety Instructions 3797975 Secomp 21.05.9531 RJ45 Patch cable CAT 6A S/FTP 3.00 m Red (clear) double shielding, Halogen-free, Flame-retardant 1 pc(
Description
Highest speed till in the plug - Do not let slow components brake. Now you can travel from start to end with 10Gigabit Ethernet!
Here are the first true Cat. 6A patch cables with components, all of which meet the Cat. 6A requirements individually ("de-embedded") and allow transmissions up to 500MHz!
- DRAKA UC900 SS27:
High-quality flexible patch cable for applications up to 500 MHz
- HIROSE TM31:
High quality RJ-45 connector - the only one that meets de-embedded Cat. 6A requirements!
Assembly:
- Cable type: S/FTP (PiMF cable)
- Impedance: 100 ohms
- Inner conductor: 8 wires AWG 27/7 Cu-strand
- Outer-Ø: 5.9 mm guide value
- Pair shielding: Aluminium-coated plastic film
- Overall shielding: Tinned copper braid shield
- Contact assignment 8 wires 1 : 1
Note:
Cable in halogen-free version
This text is machine translated.
Here are the first true Cat. 6A patch cables with components, all of which meet the Cat. 6A requirements individually ("de-embedded") and allow transmissions up to 500MHz!
- DRAKA UC900 SS27:
High-quality flexible patch cable for applications up to 500 MHz
- HIROSE TM31:
High quality RJ-45 connector - the only one that meets de-embedded Cat. 6A requirements!
Assembly:
- Cable type: S/FTP (PiMF cable)
- Impedance: 100 ohms
- Inner conductor: 8 wires AWG 27/7 Cu-strand
- Outer-Ø: 5.9 mm guide value
- Pair shielding: Aluminium-coated plastic film
- Overall shielding: Tinned copper braid shield
- Contact assignment 8 wires 1 : 1
Note:
Cable in halogen-free version
This text is machine translated.
Features
- DRAKA UC900 patch cable 3 m red
- Type : Patch-cable - CAT 6A
- Technology : SFTP, PiMF
- Shielding material : Tin-plated copper braid
- Wire per cable : 8 wires
- Features : Halogen-free, Hirose TM31 connectors
- Length: 3 m
- Connection : RJ-45 male
- Connector (second end): RJ-45 male
- Colour: red.
