Name: SecoRüt 70241.2 SecoRüt Prüfbox für Anhängersteckdosen 7 und 13 Polig (12 Volt) Tractor unit socket tester 12 V Pins:7 &
Brand: SecoRüt
SKU: 3556601

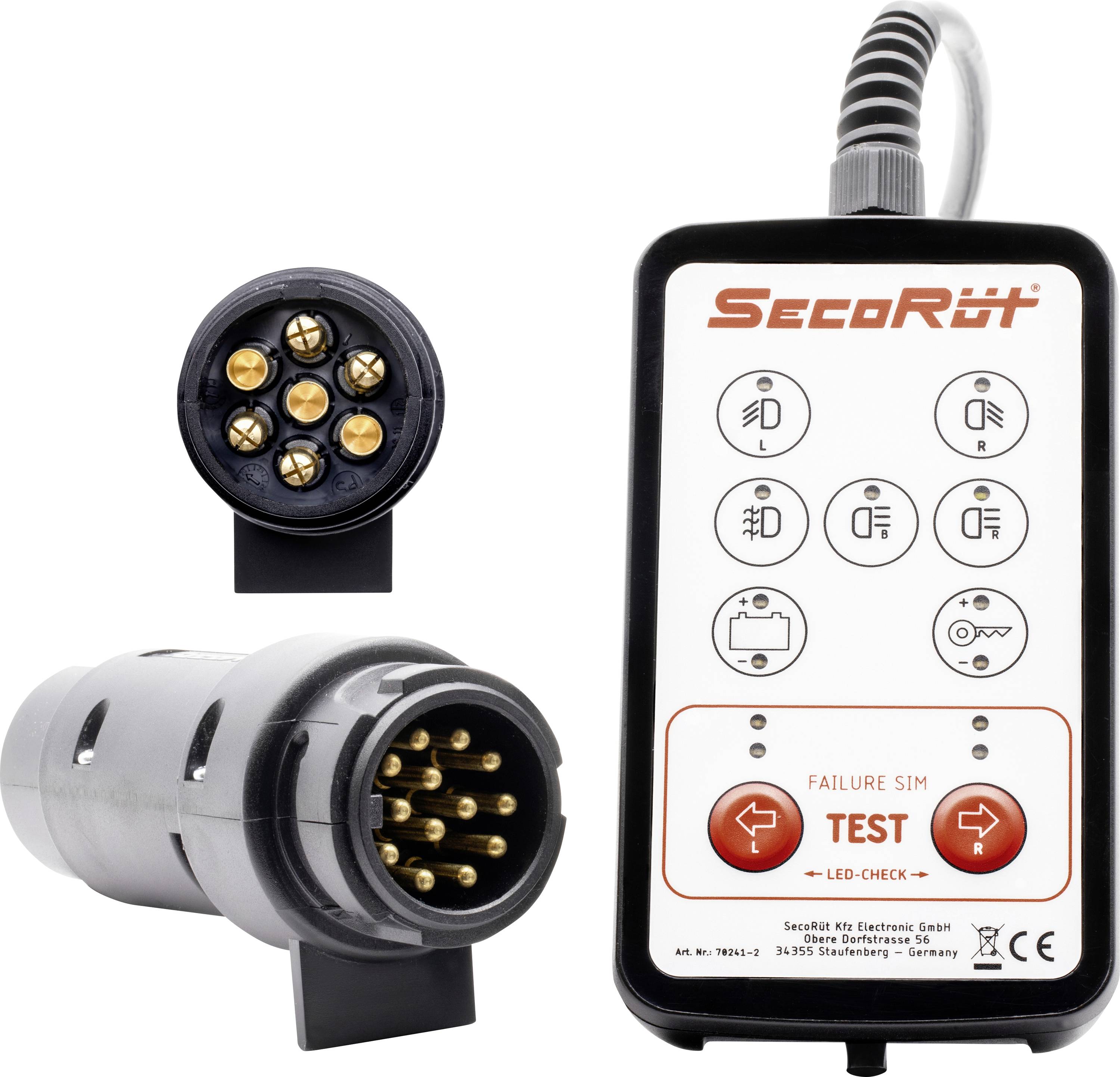

'SecoRüt' electronic device with "TEST" button and connectivity ports for automotive electrical testing. Various indicator symbols.

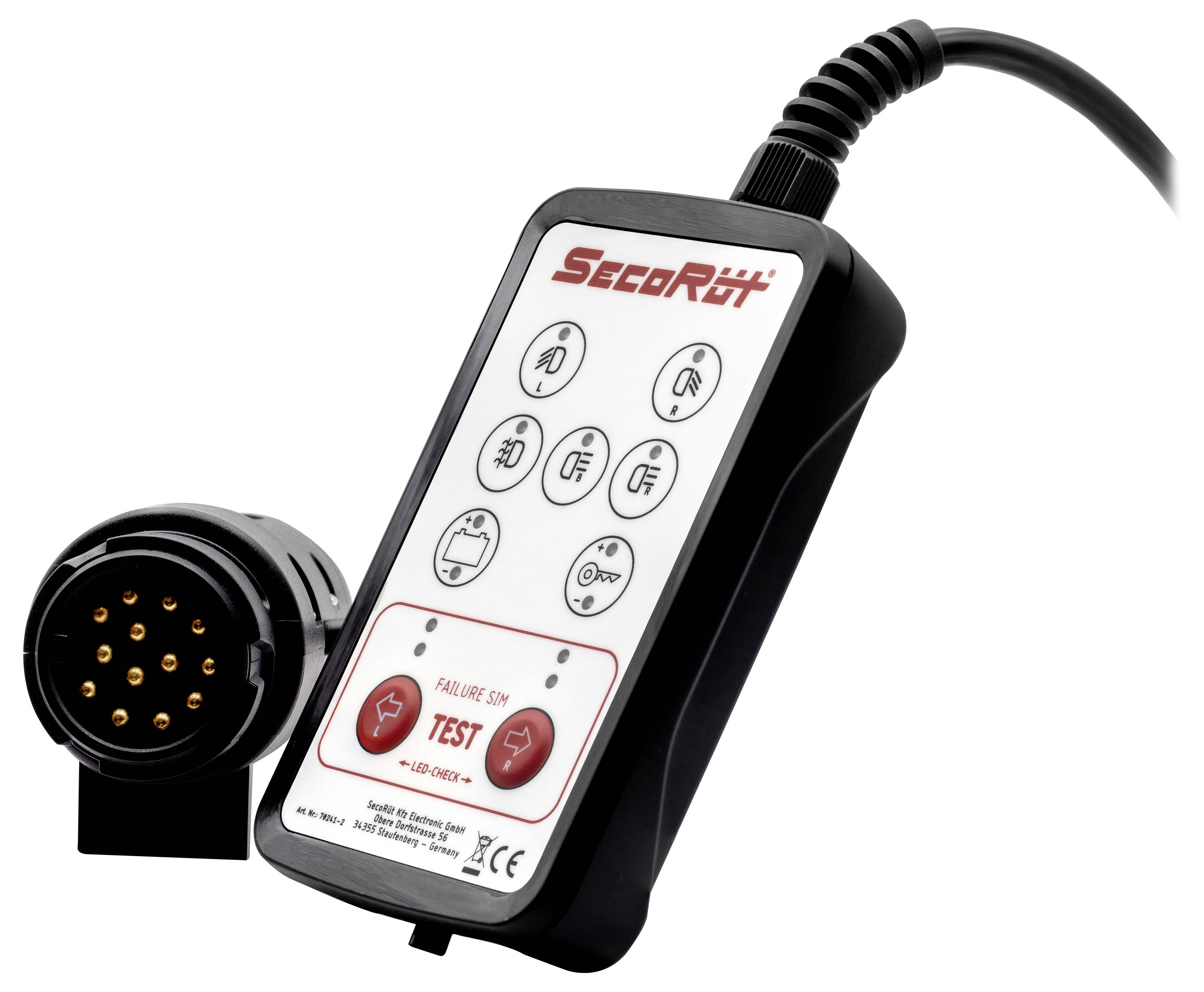

A trailer light tester device with multiple buttons for testing vehicle connections, featuring plug connector at one end.

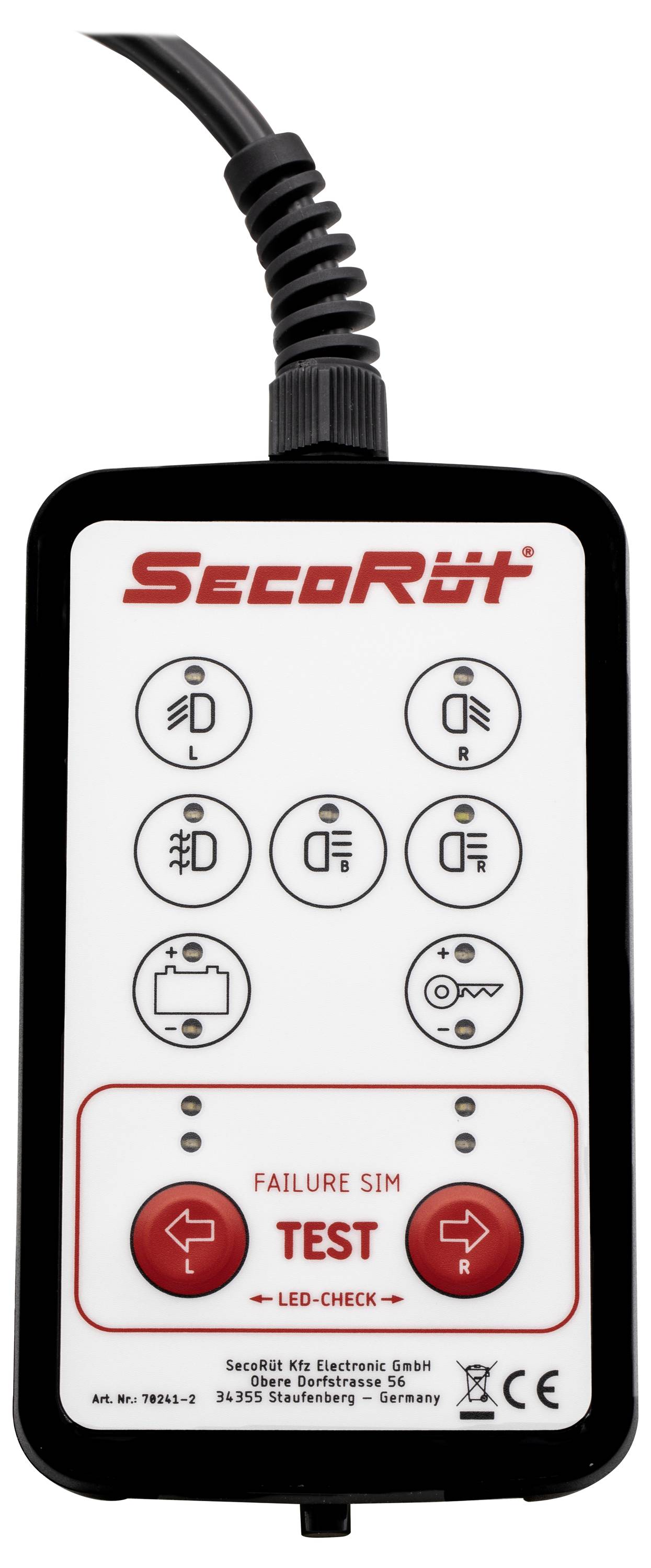

'A handheld device with buttons for fire safety system testing, including TEST and LED-CHECK options and various fire alarm icons.'

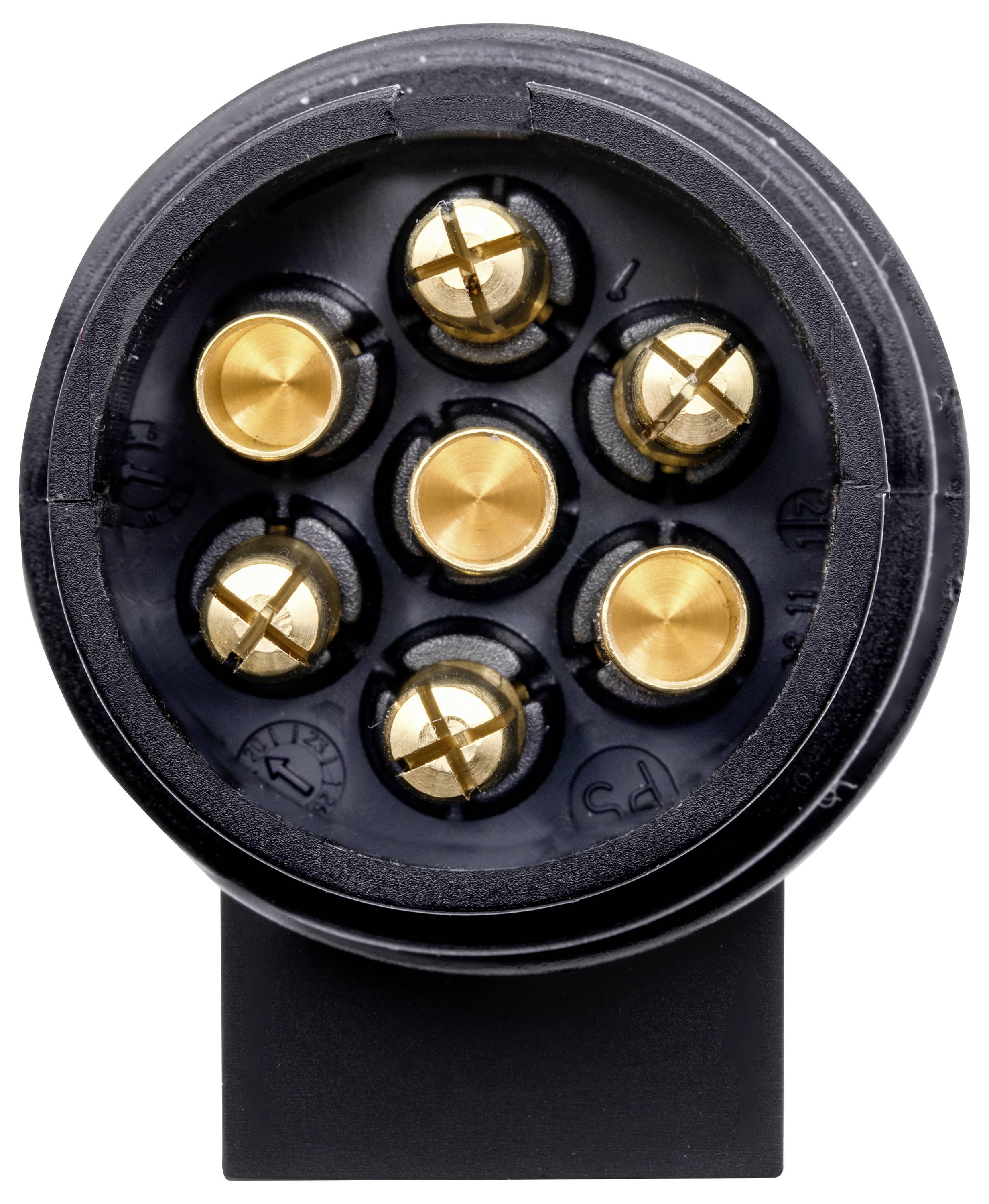

A close-up image of a circular 7-pin trailer connector with gold-plated contacts, designed for electrical connections between vehicles and trailers.

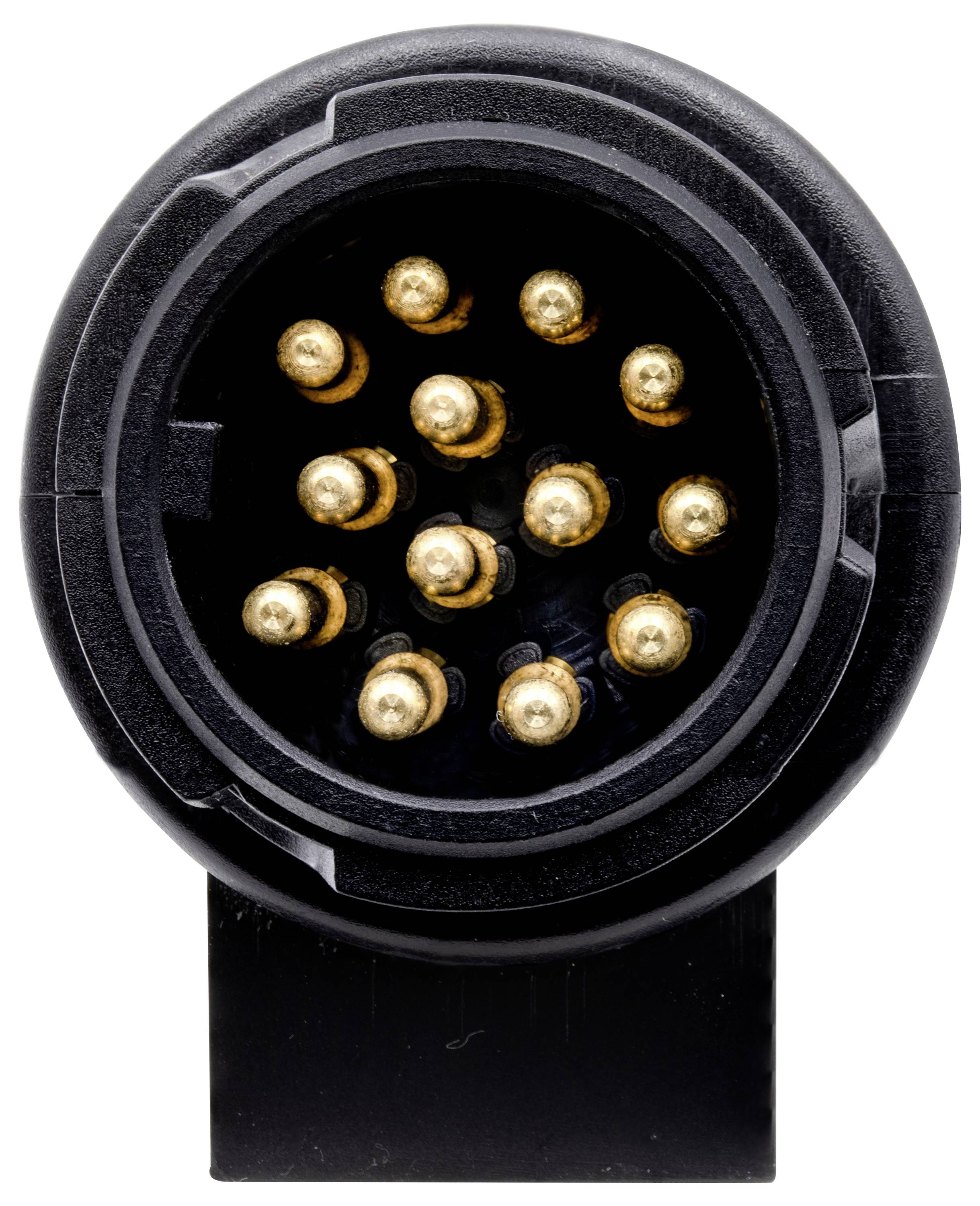

A black, circular trailer plug connector with twelve golden pins, used for connecting trailers to vehicles for power and signal transmission.

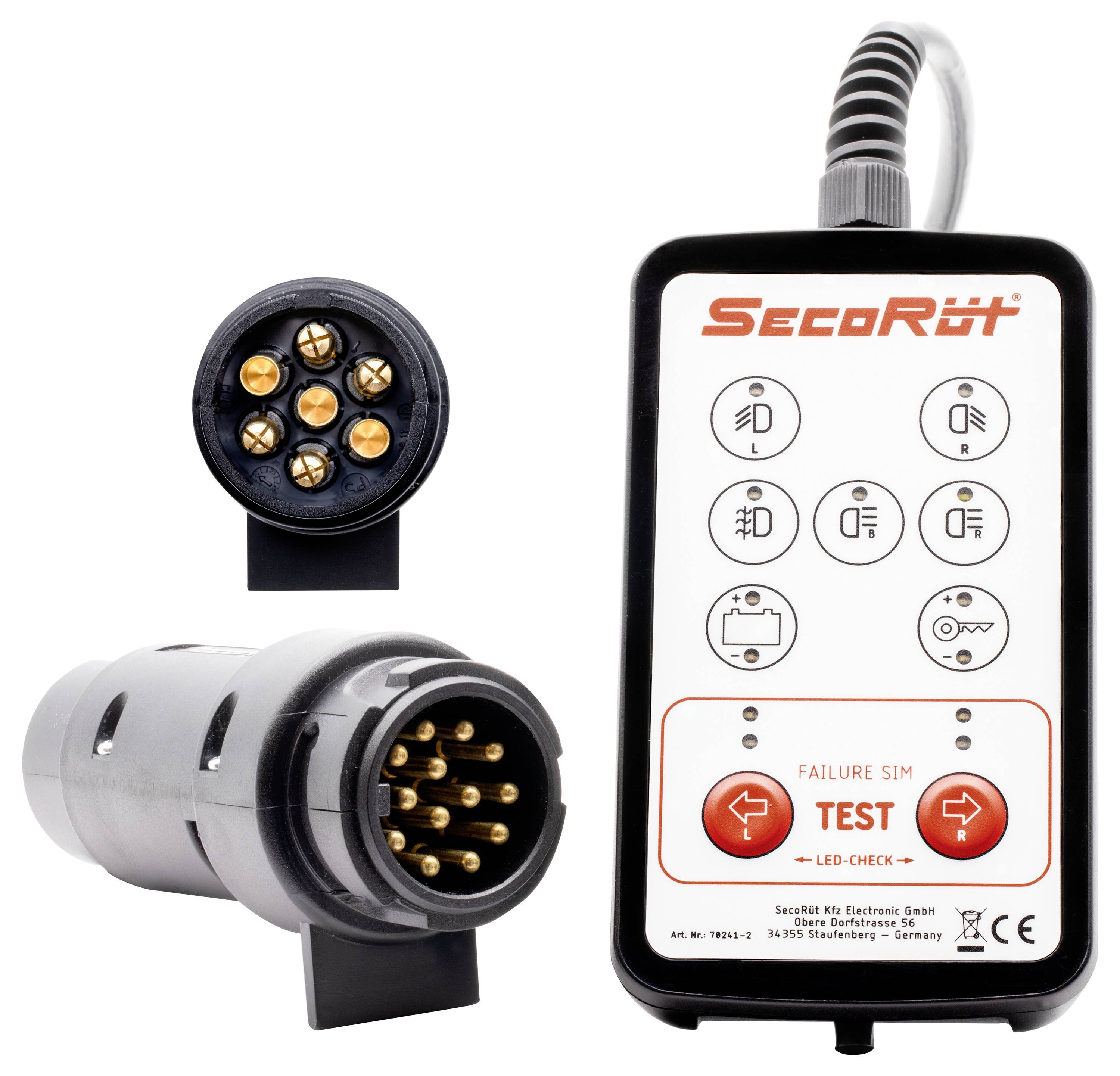

Testing device with connectors for trailers. Device labeled 'SecoRüt' has LED indicators and a test button for diagnosing connectivity.

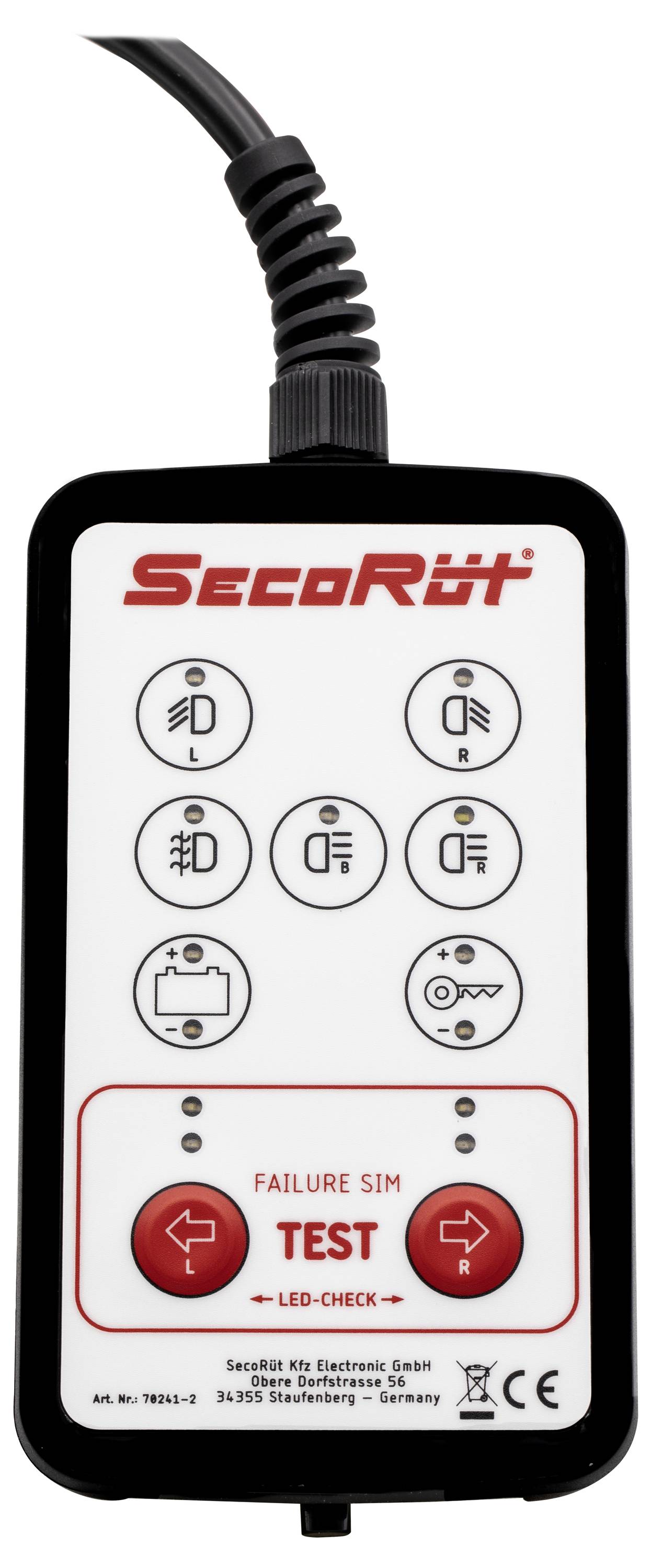

A white device with a cable labeled 'SecoRüt' features multiple buttons. 'Test' and 'Failure SIM' buttons are highlighted in red.

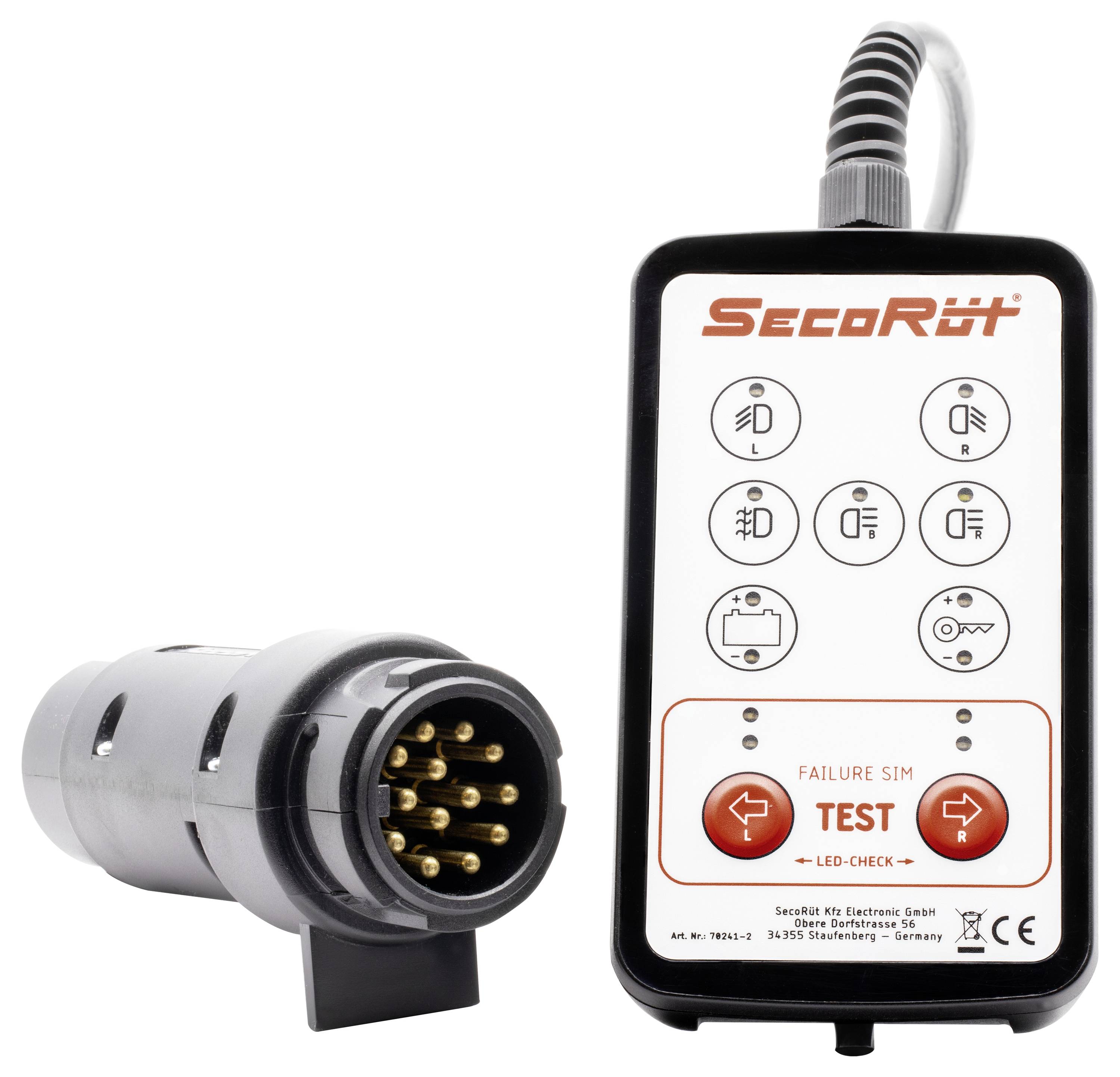

A trailer connector tester with multiple function icons and a 'TEST' button for verifying trailer light connections.

'SecoRüt' trailer socket tester with multiple icons showing connection types. Device includes a 'TEST' button and LED indicators.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SecoRüt test box for trailer sockets! For towing vehicles – 7 and 13 pins (12 volts)

Compatibility: Developed for 12-volt systems, suitable for 7- and 13-pin trailer sockets
Test leads: Approx. 4 meters long – so you can easily start the tests from the driver's seat
Fault simulation: Turn signal error simulation possible – Ideal to specifically provoke and test diagnostic errors
LED check: LED compatibility testing integrated to ensure that even modern lamps can be tested reliably
High-quality keyboard with a clearly defined pressure point, robust against dirt and stress
Housing: Resistant housing, resistant to oil, fuel or other workshop substances
Carrying case: Inc. robust workshop case – Ideal for safe transport and storage
ISO 11446 + 1724

Technical specifications

Product type: Tractor unit socket tester

Connector (trailer): 7-pin socket
13-pin socket

Trailer: Car
Truck

Features: Truck engine
Fault simulation

Connector (vehicle): 7-pin socket
13-pin socket

Operating voltage: 12 V DC

Vehicle voltage: 12 V

Pins: 7 & 13

Power supply (LOV): via mains outlet

Feed length: 4 m

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556601 SecoRüt 70241.2 SecoRüt Prüfbox für Anhängersteckdosen 7 und 13 Polig (12 Volt) Tractor unit socket tester 12 V Pins:7 &

Description

Secure a reliable diagnostics tool for trailer sockets with the SecoRüt mobile TestDevice 12 V (Art.-No. 70241-2). This compact and mobile test case makes possible a fast and precise testing of the 7 and 13-pin plug connectors – Ideal for workshops, breakdown aids, fleets...
