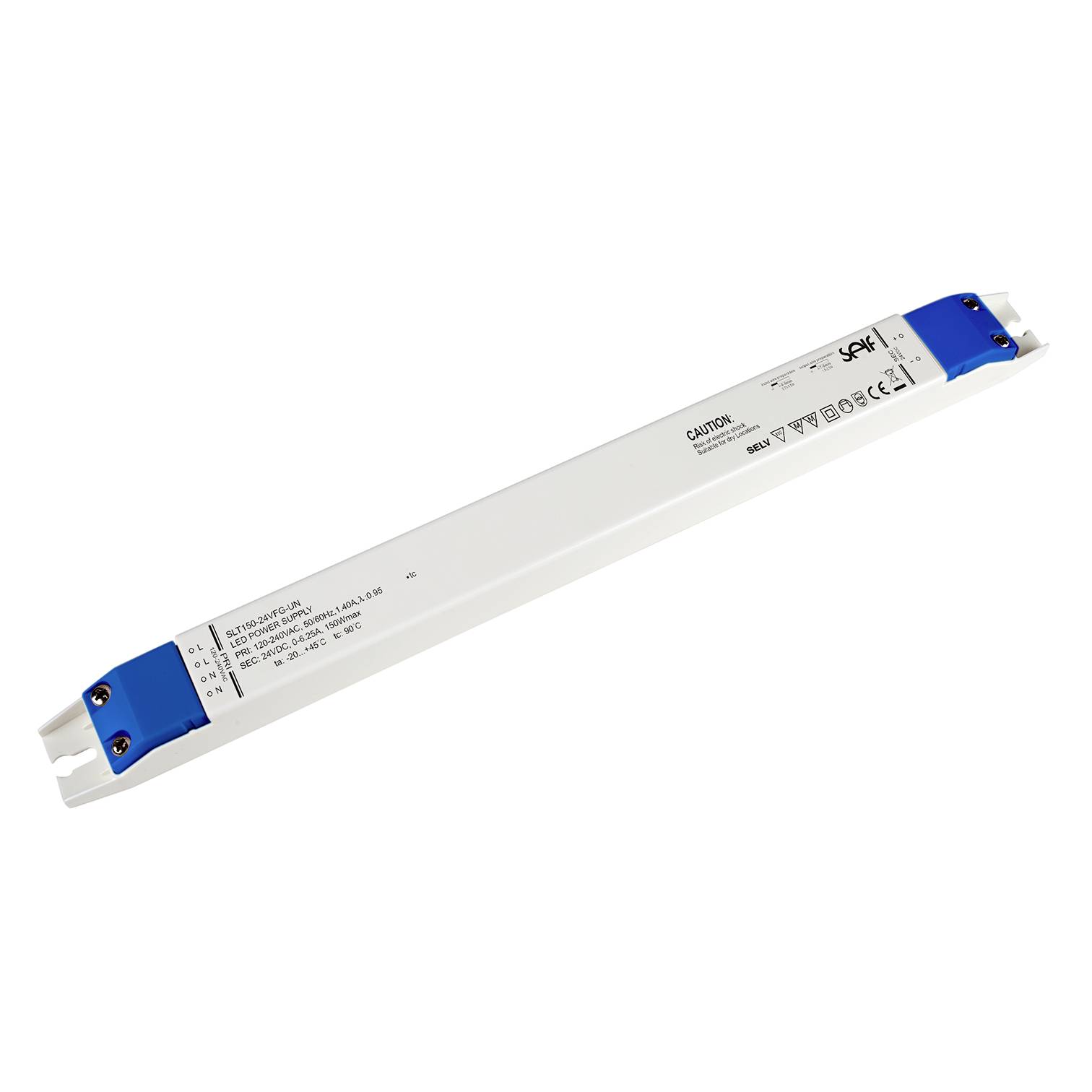

Self Electronics SLT150-24VFG-UN LED transformer Constant voltage 150 W 0 - 6.25 A 24 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP20 150W 24V/6.25A CV
- Constant voltage
- 24 V
- 0 - 6.25 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Output voltage (max.)
24 V
- Test mark
EN 61347-1,EN 61347-2-13
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
not dimmable
IP20
- Connection
Screw terminal
- Max. power
150 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 A
- Input voltage (max.)
264 V
- Min. input voltage
108 V
- Power range
150 W (max)
- Max. temperature
45 °C
- Min. temperature
-20 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2992601 Self Electronics SLT150-24VFG-UN LED transformer Constant voltage 150 W 0 - 6.25 A 24 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2992601 Self Electronics SLT150-24VFG-UN LED transformer Constant voltage 150 W 0 - 6.25 A 24 V not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2992601 Self Electronics SLT150-24VFG-UN LED transformer Constant voltage 150 W 0 - 6.25 A 24 V not dimmable 1 pc(s)
Description
This stabilised power supply was specially designed for the supply of LED lights. With the constant voltage (CV) technology, it is suitable for lamps with constant voltage.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
