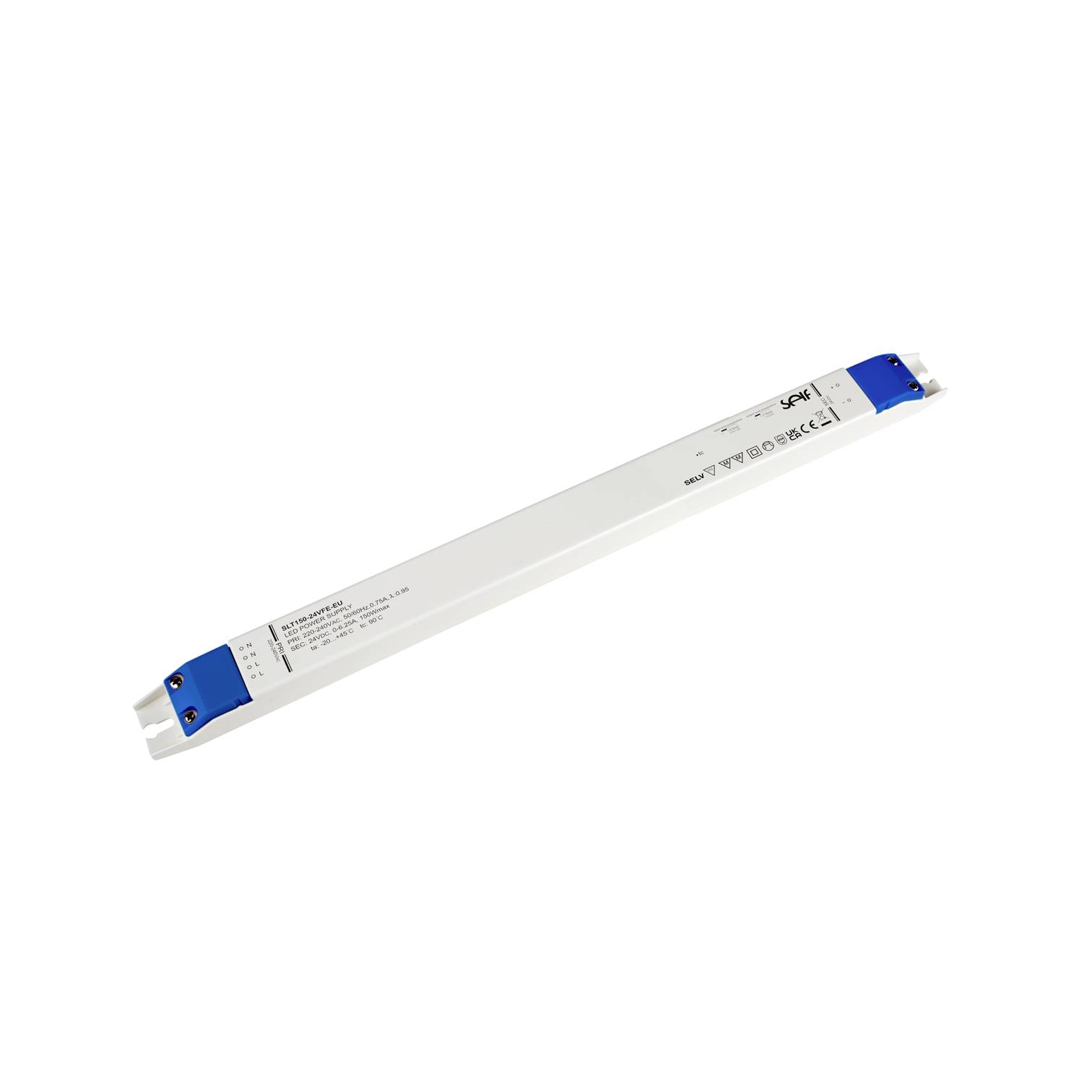

Self Electronics SLT150-48VFE-EU LED transformer Constant voltage 150 W 3.125 A 48 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT150-48VFE-EU
- Constant voltage
- 48 V
- 3.125 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Output voltage (max.)
48 V
- Output voltage (min.)
48 V
- Test mark
EN 61347-1,EN 61347-2-13
- Max. output current
3.125 A
- Output current (max.) - rounded
3.13 A
- Protection class
II
- LED driver features
not dimmable
- Connection
Screw terminal
- Max. power
150 W
- No. of outputs
1 x
- Output current (min.)
3.125 A
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power (min.)
150 W
- Power range
150 up to 150 W
- Max. temperature
45 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2992602 Self Electronics SLT150-48VFE-EU LED transformer Constant voltage 150 W 3.125 A 48 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2992602 Self Electronics SLT150-48VFE-EU LED transformer Constant voltage 150 W 3.125 A 48 V not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2992602 Self Electronics SLT150-48VFE-EU LED transformer Constant voltage 150 W 3.125 A 48 V not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
