Senseca 487434 Soil moisture probe
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Only 5 Piece(s) available
Highlights & Details

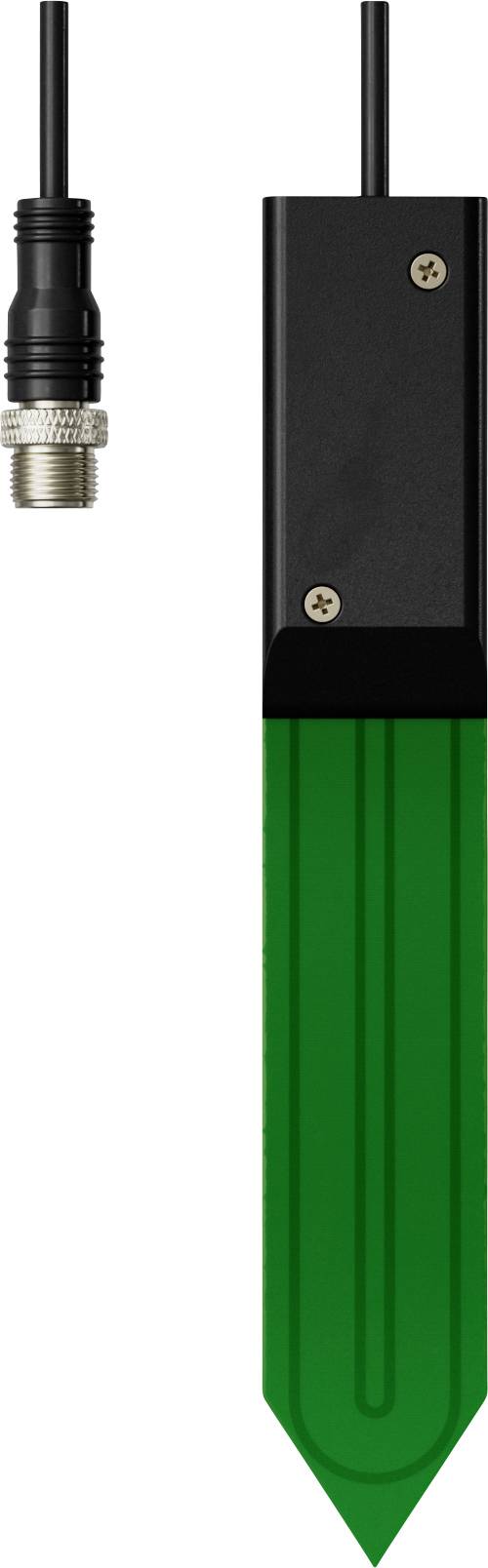

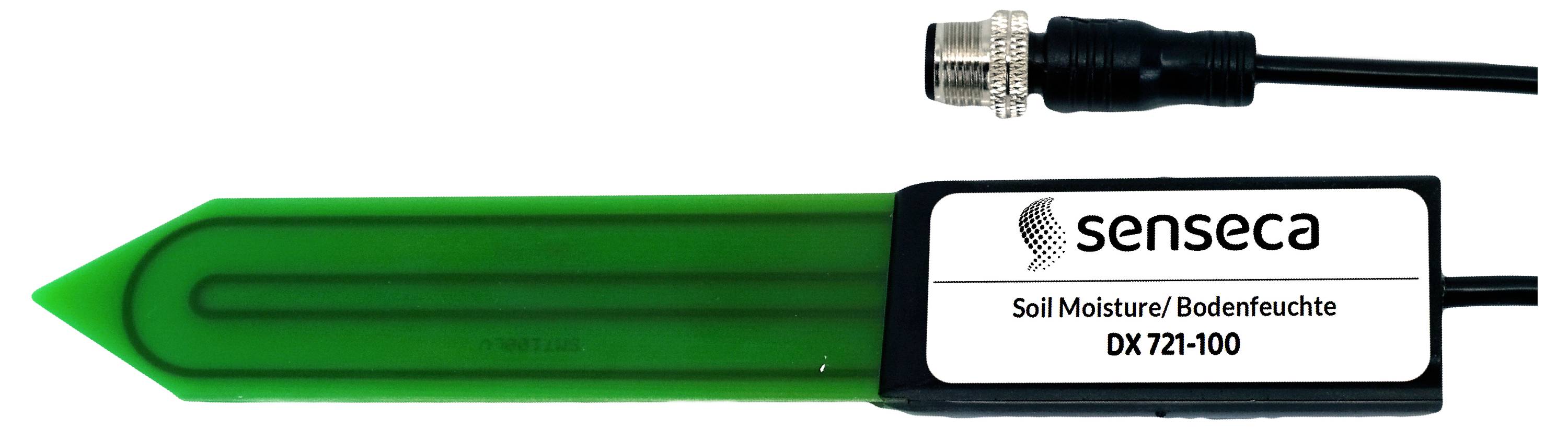

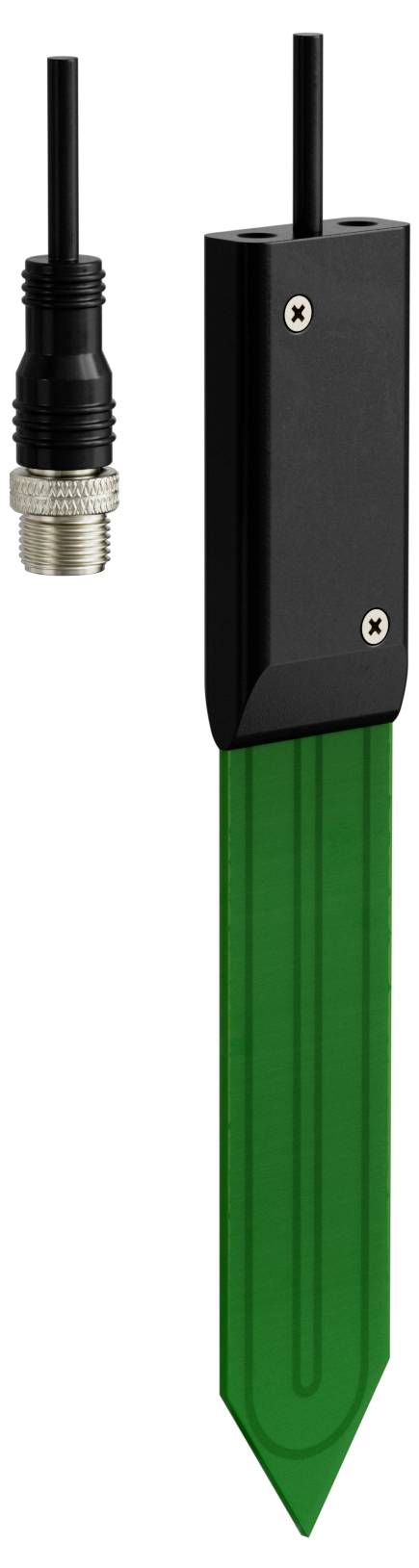

Senseca DX 721 Digital wide-range soil humidity sensor 0 ... 100% VWC, 2 m PVC cable
- Digital DX sensor family: Can be changed without loss of accuracy, combined with any DX sensors
- Accurate measurement of soil moisture: Fast and accurate determination of volumetric water content.
- Integrated temperature measurement: Measures moisture and temperature in a probe.
- Easy to use: Fully matched sensors, simply "plug in and measure".
- For short- and long-term use: Suitable for fast Spot-checks or continuous monitoring.
- Robust & durable: Designed for long-term use in the field (stable, low energy consumption).
Technical specifications
- Resolution
Soil moisture: 0.1% VWC
Temperature: 0.1 °C
- Reading range
Soil moisture: 0 to 60% VWC volumetric water content (up to 100% with limited accuracy)
- Temperature
-40...+80 °C
- Max. number of sensors
3
- Weight
95 g
- Dim
(W x H x D) 182 x 30 x 12 mm
- Depth
12 mm
- Height
30 mm
- Width
182 mm
- Product type
Soil moisture probe
Documents & Downloads
Datasheet
Datasheet 3771558 Senseca 487434 Soil moisture probe
User & Safety Instructions
User & Safety Instructions 3771558 Senseca 487434 Soil moisture probe
Description
The DX 721 is a advanced soil humidity sensor – suitable for quick measurements at changing locations or for the long-term monitoring at fixed locations.
The DX 721 are optimized and matched for use in typical agricultural soils. The accuracy depends on the application.
During factory calibration, the sensors in mineral soils with medium salinity from 0 to 50% VWC are more accurate than ± 3% VWC.
With ground-specific calibration, accuracy of up to ± 1% (VWC) can be achieved.
Measurement is also possible in other materials, for example: Mineral wool, coconut fibers, wood fibers, paper are. The display values must then be interpreted/calibrated on a material-specific basis.
DX 721 sensors are interchangeable with each other - the sensors are completely aligned. Simply "plug in and measure"!
With the suitable PRO D01 / PRO D05 measuring instruments, the DX 721 are a reliable reference for agricultural / horticultural applications.
The multi channel data logger measuring devices PRO D05.2/.3 can combine up to 3 sensors in one device - or combine the sensors with each of the available DX digital sensors in order to have a multi-parameter measuring solution "in one hand".
This text is machine translated.
The DX 721 are optimized and matched for use in typical agricultural soils. The accuracy depends on the application.
During factory calibration, the sensors in mineral soils with medium salinity from 0 to 50% VWC are more accurate than ± 3% VWC.
With ground-specific calibration, accuracy of up to ± 1% (VWC) can be achieved.
Measurement is also possible in other materials, for example: Mineral wool, coconut fibers, wood fibers, paper are. The display values must then be interpreted/calibrated on a material-specific basis.
DX 721 sensors are interchangeable with each other - the sensors are completely aligned. Simply "plug in and measure"!
With the suitable PRO D01 / PRO D05 measuring instruments, the DX 721 are a reliable reference for agricultural / horticultural applications.
The multi channel data logger measuring devices PRO D05.2/.3 can combine up to 3 sensors in one device - or combine the sensors with each of the available DX digital sensors in order to have a multi-parameter measuring solution "in one hand".
This text is machine translated.
Scope of delivery
- Digital wide-range humidity sensor DX 721-L02-P (2 m PVC-cable)
- Data sheet
System requirements
- Digital measuring device with M12 connection for DX sensors (e.g. Senseca PRO D01, PRO D05.2, PRO D5.3, PRO 921 or PRO 925)
