Service interfaces 09454521518 HARTING Content: 1 pc(s) Push-fit connector
Packaging type
Piece
Product type
Push-fit connector
Type
09 45 452 1518
Manufacturer part #
09454521518
Connection
RJ45
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Range: Har-port
- Component: Service interfaces
- Type of connection: Bushing on connector
- Mating cycles ≥ 750
- Material flammability class acc. To UL 94: V-2
- Net weight: 416 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 10 Gbit/s.
- Description: RJ45
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Category 6 Class E up to 250 MHz
- Protection class according to IEC 60529:IP20
- PROFINET: Yes
- Approvals DNV GL
- Material housing: Polyamide (PA)
- Colour of housing: Silver
- Mounting: Screwable in housing wall
- Ambient temperature: -25 ... +70 °C
- Cable length 10 m
- Packaging type
Piece
- Type
09 45 452 1518
- Product type
Push-fit connector
- Manufacturer part #
09454521518
- Connection
RJ45
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
70 °C
10 m
6
IP20
Plastic
Plastic
Documents & Downloads
Datasheet
Datasheet 3001178 Service interfaces 09454521518 HARTING Content: 1 pc(s) Push-fit connector
User & Safety Instructions
User & Safety Instructions 3001178 Service interfaces 09454521518 HARTING Content: 1 pc(s) Push-fit connector
Description

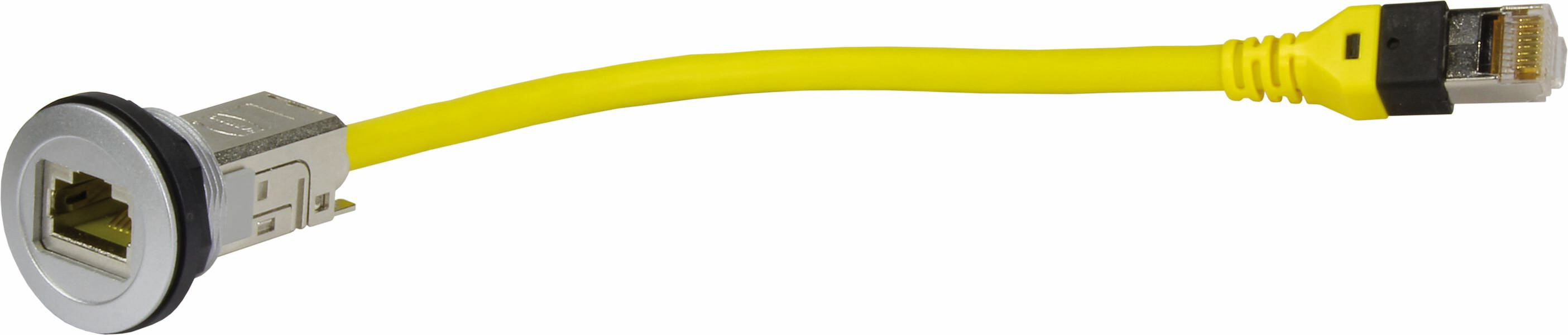

Service interfaces, RJ45, fully shielded, 360° shield contact, Cat. 6 Class E to 250 MHz, cable length: 10 m.
