Name: Shuttle All-in-one barebone P25N 29.5 cm (11.6 inch) HD N100 3.4 GHz 16 GB RAM Intel FreeDOS P25N
Brand: Shuttle
SKU: 3221546

Highlights & Details

Shuttle P25N 29.5 cm (11.6 inch) All-in-one barebone

Display: 29.5 cm (11.6 inch) HD 1366 x 768 Pixel
N100 4 core(s) / max. 3.4 GHz
RAM: 16 GB
Intel
w/o OS

Technical specifications

Processor threads: 4
Processor boost frequency:3.4 GHz
Built-in processor: Yes
Thermal Design Power (TDP) 6 W
Main memory type SO-DIMM
Number of memory slots: 1
RAM maximum: 16 GB
Supported memory speed: 4800 MHz
Supported memory: DDR5 SDRAM
Memory channels: Single channel
Memory voltage 1.1 V
Supported drives: HDD & SSD
Supported drive sizes: 2.5,M.2
Drive interface: PCI Express, Serial ATA III.
Number of supported storage drives: 2
Built-in graphics adapter: Yes
Graphics card family: Intel
Built-in graphics card model: Intel® UHD Graphics
Touch-screen: Yes
HD-type HD
Aspect ratio: 16:9
Brightness: 250 cd/m²
Panel type TN
Built-in speakers: Yes
Number of speakers: 1
RMS power 2 W
Top WLAN standard Wi-Fi 5 (802.11ac)
WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi controller model Realtek RTL8821CE
Ethernet/LAN: Yes
LAN-Controller Intel I226-LM

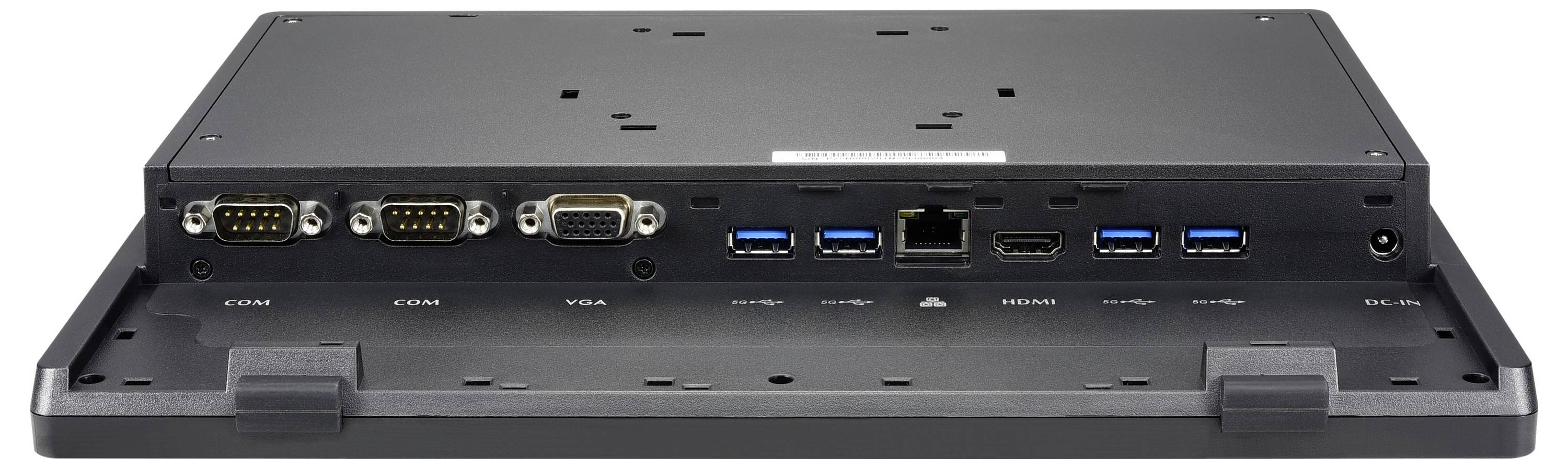

USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 6
Number of HDMI connections: 1
HDMI version: 2.0b
Number of VGA (D-Sub) Connections: 1
Microphone input: Yes
Headphone outputs: 1
Number of Ethernet LAN connections (RJ-45): 1
Number of COM ports: 2.
DC connection (DC): Yes
PCI-Express-Slots version: 3.0
Casing type All-in-One
Cooling: Passive
On/off switch: Yes
LED indicators: HDD, performance
Cable lock slot: Yes
Slot type cable lock Kensington
VESA-bracket: Yes
Panel-mounting interface 75 x 75 mm
Product type: All-in-one PC Barebone
Number of supported processors: 1
BIOS type: AMI
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) Version: 2.0
Audio chip: RealTek ALC888S
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Supports Windows operating systems: Windows 10, Windows 11
Supported Linux operating systems: Yes
Installed operating system: No.
Sustainability Compliance: Yes
Sustainability certificates: ENERGY STAR, ERP
Power supply type: External AC adapter
Power supply 65 W
Number of power supply units: 1
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power supply output voltage 19 V
AC adapter output current 3.42 A
Operating temperature: 0 - 40 °C
Operating relative humidity: 10 - 90%
Power cable included: Yes
AC mains adapter: Yes
Quick start overview: Yes
Drivers included: Yes

Product type: All-in-one barebone

Model: P25N

Display (cm): 29.5 cm

Screen size diagonal (inches): 11.6 inch

Display resolution: 1366 x 768 Pixel

Display resolution mode: HD

CPU: N100

Processor/type: N100

Processor cores (No.): 4 x

CPU turbo clock speed (max.): 3.4 GHz

: 16 GB

No. of memory slots: 1

RAM / Max. upgrade: 16 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

HDD capacity (total): 0 GB

Hard drive: 0 GB

Bluetooth: 4.2

Mobile internet: WiFi

Keyboard layout: Keyboard not included

No. of HDMI ports: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 6 x

No. of VGA ports: 1 x

Interfaces: Headphone input

Factory colour: Black

Width: 299 mm

Height: 207 mm

Depth: 59 mm

Weight: 1.95 kg

PSU power: 65 W

Operating system (Version): w/o OS

Display size: - 23 inch

Display: 29.5 cm (11.6 inch)

Bluetooth: Yes

Control LEDs: Yes

Design height: 207 mm

No. of 10 Gb LAN ports: 1 x

Screen resolution: HD ready (1366 x 768 Pixel)

Touchscreen (display): Yes

Cooling: Passive

Panel technology: TN LED

Power supply (LOV): mains-powered

Power consumption (max.): 6 W

No. of HDMI connections: 1

Audio power (max.): 2 W

Power supply (details): 100 - 240 V

Built-in speakers: Yes

: 75 x 75 mm

Wi-Fi: built-in

Wi-Fi: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3221546 Shuttle All-in-one barebone P25N 29.5 cm (11.6 inch) HD N100 3.4 GHz 16 GB RAM Intel FreeDOS P25N

User & Safety Instructions

User & Safety Instructions 3221546 Shuttle All-in-one barebone P25N 29.5 cm (11.6 inch) HD N100 3.4 GHz 16 GB RAM Intel FreeDOS P25N

Description

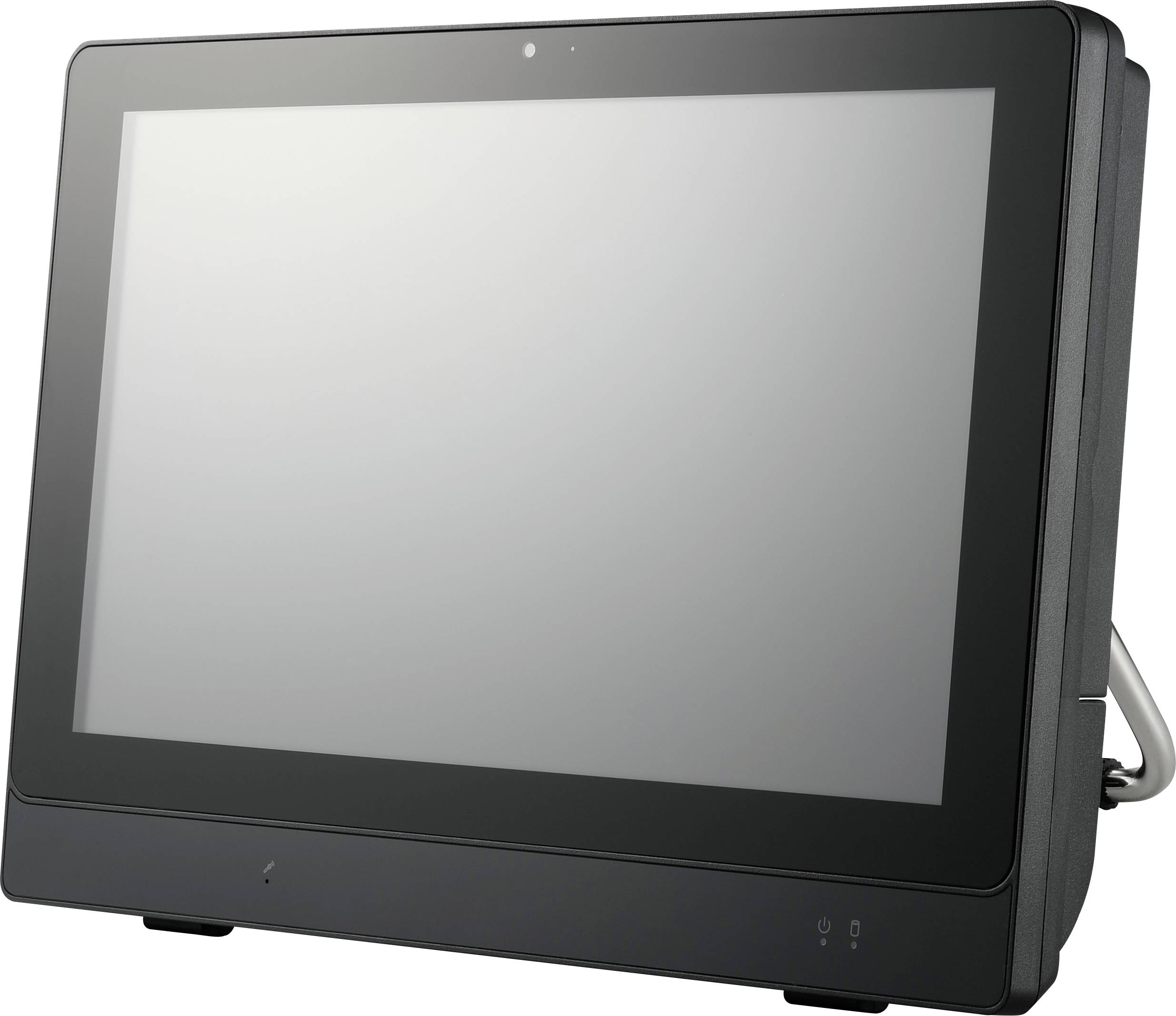

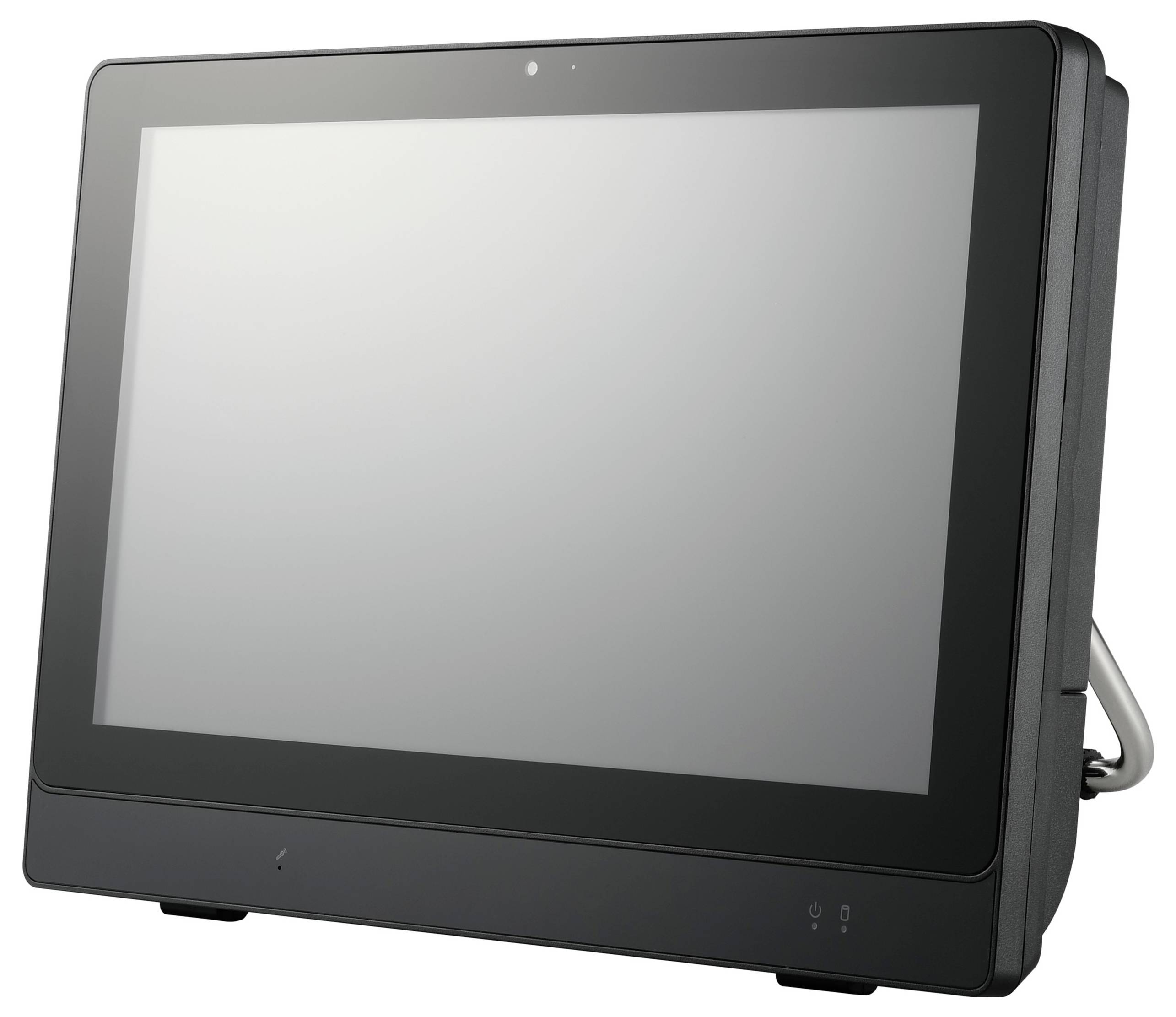

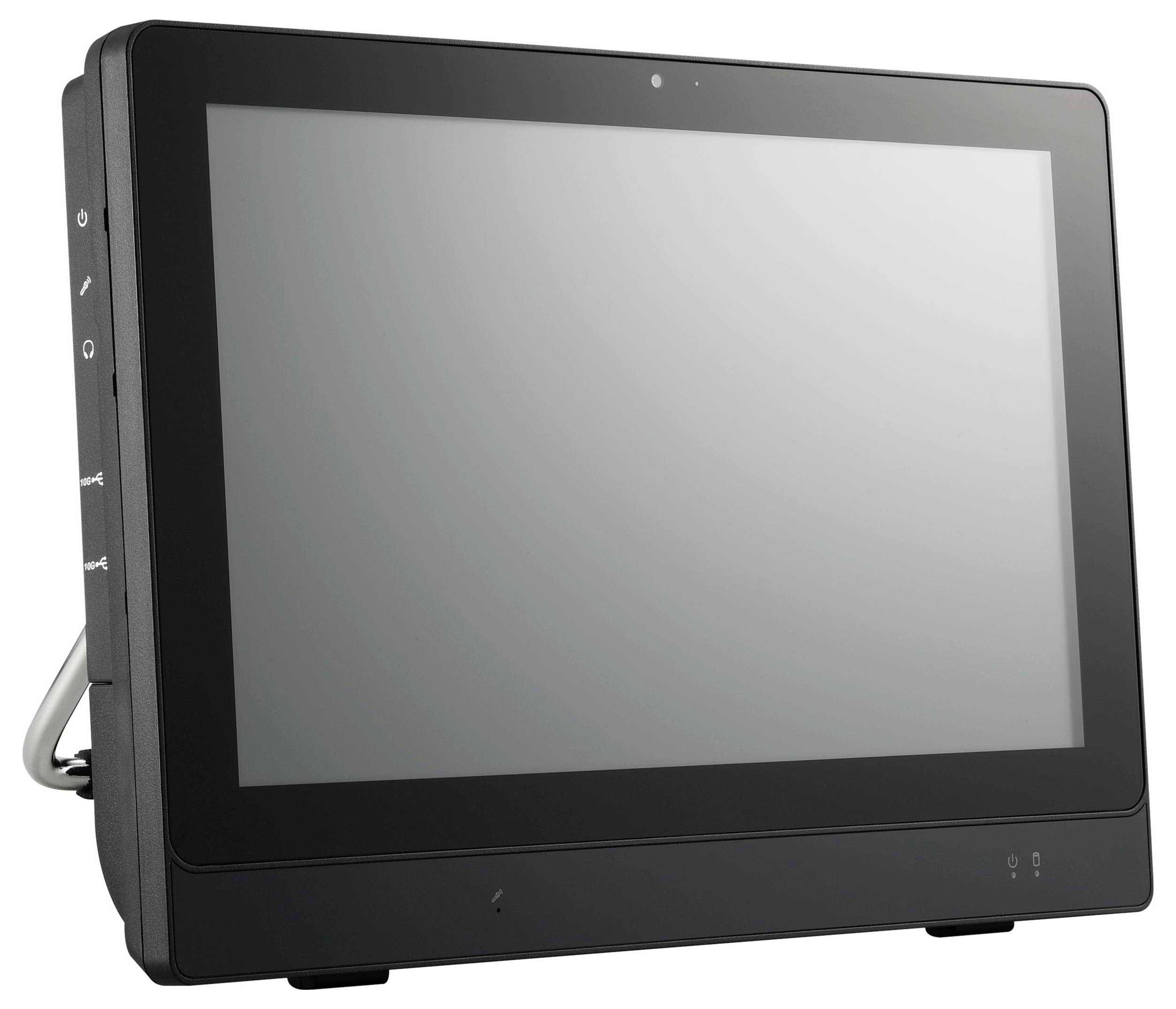

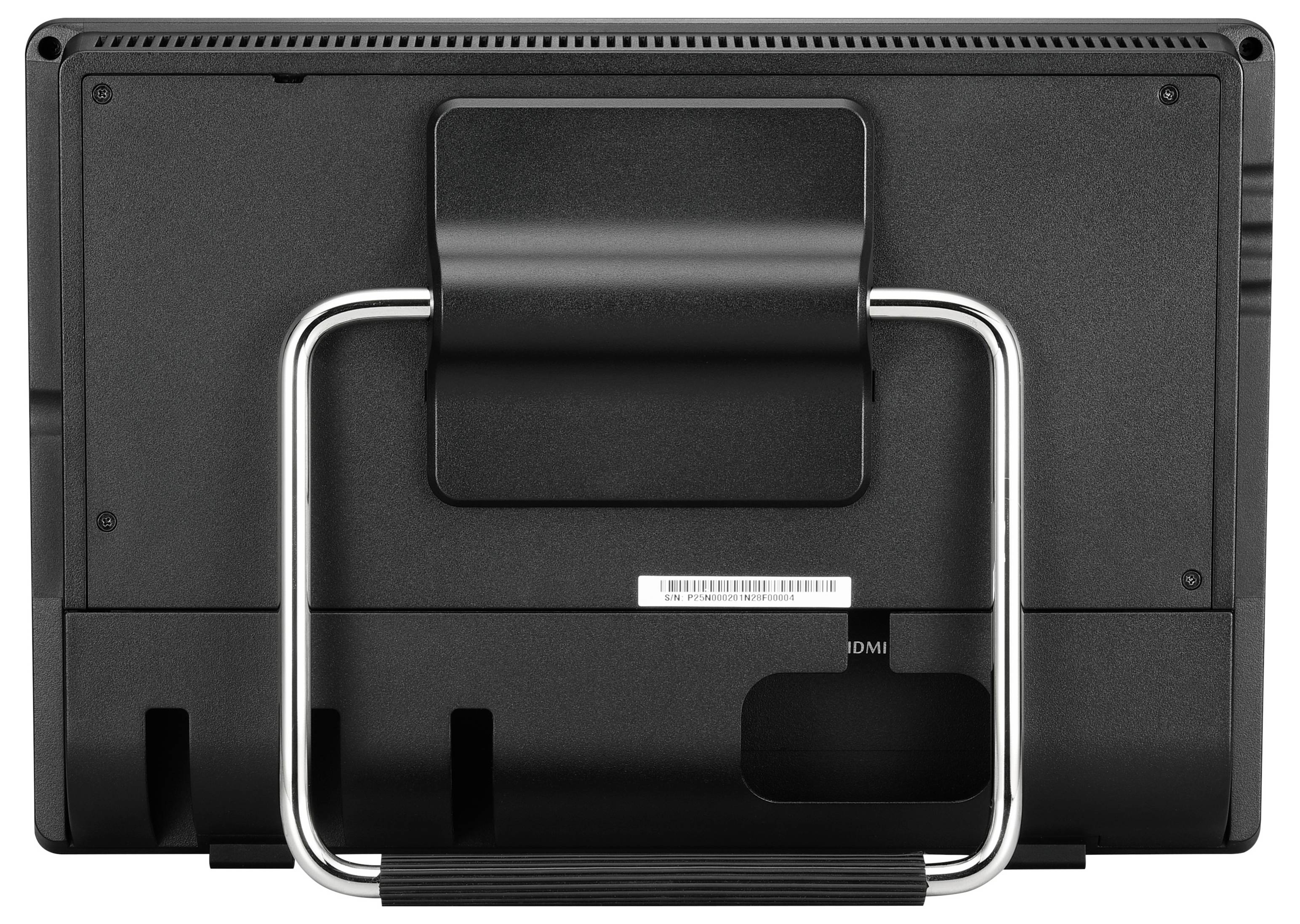

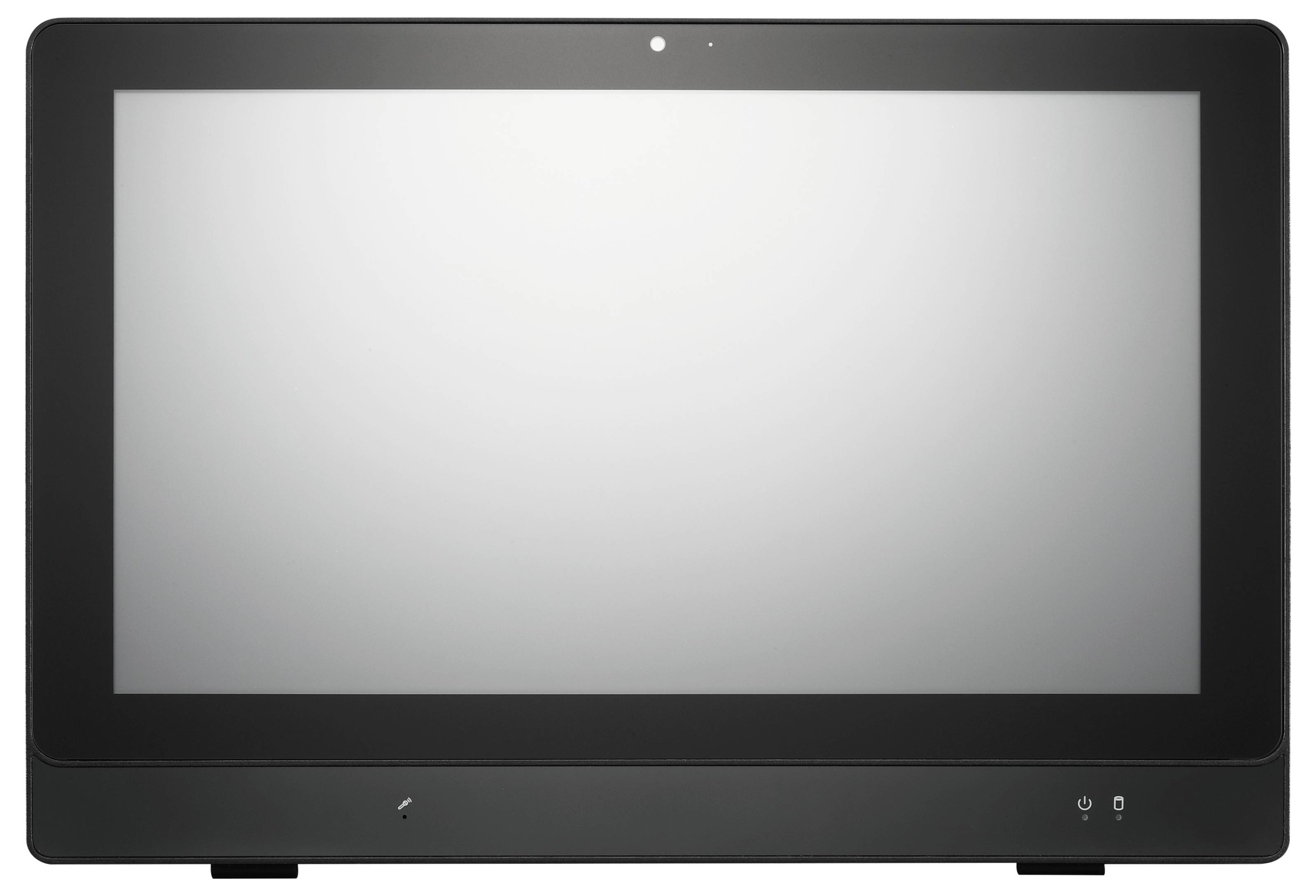

The Shuttle XPC all-in-one P25N with 11.6" multi-touch display is positioned as a space-saving POS system or as control unit for media playback or automation. The practical folding base allows for an individual adjustment of the tilt, but it can also be mounted on a VESA standing base or wall bracket. The front side is protected against dust and splash water according to the protection class IP54. A cable collection box on the back ensures order. Thanks to completely passive cooling, the system is practically silent, maintenance-free and suitable for 24/7-continuous operation.

This text is machine translated.
