Shuttle Barebone Barebone slim XH810 6.4 cm (2.5 inch) XH810
EAN:
Part number:
Item no:
Highlights & Details
Shuttle Barebone slim XH810 6.4 cm (2.5 inch) Barebone
- Display: 6.4 cm (2.5 inch)
- DDR5 RAM
Technical specifications
- Product type
Barebone
- Model
Barebone slim XH810
- Display (cm)
6.4 cm
- Screen size diagonal (inches)
2.5 inch
- CPU
- RAM type
DDR5 RAM
- No. of memory slots
2
- RAM / Max. upgrade
96 GB
- SSD connection
M.2 PCIe NVMe 4.0 x4
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Keyboard layout
Keyboard not included
- No. of DisplayPort
1 x
- No. of Gigabit LANs
2 x
- No. of HDMI ports
2 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- No. of USB 3.0 ports
1 x
- Factory colour
Black
- Width
238 mm
- Height
72.5 mm
- Depth
200 mm
- Weight
3.2 kg
- PSU power
120 W
- Features
w/o CPU
w/o HDD
Kensington lock
- Display size
- 23 inch
- Display
6.4 cm (2.5 inch)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737011 Shuttle Barebone Barebone slim XH810 6.4 cm (2.5 inch) XH810
Description

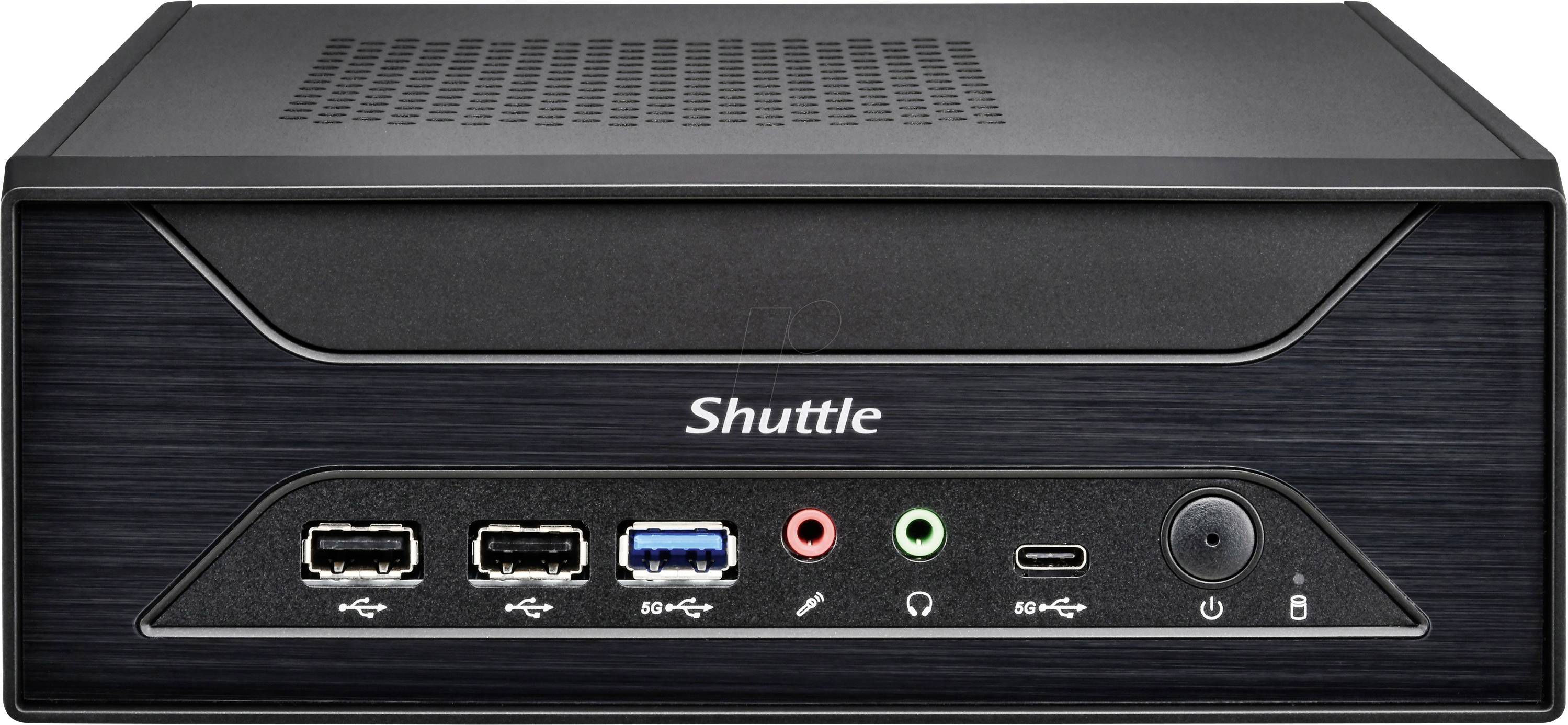

The Shuttle XPC XH810 Barebone is the ideal entry into the professional data processing system and is ideal for price-performance ratio in a compact 3.5-liter housing. As a cost-effective basic model this robust Barebone made of steel supports the latest Intel core ultra 200 processors (LGA1851) and up to 96 GB fast DDR5 memory. Its versatile storage options offer unbelievable price-performance ratio and enable the unique combination of a standard size 3.5-inch hard disk or two 2.5-inch drives along with two M.2-NVMe SSD drives for maximum flexibility at a limited budget.
Despite its favorable positioning, the XH810 makes no compromises in the connectivity. It offers support for three 4K/8K displays, two Intel LAN ports (2.5G + 1G) and up to six serial interfaces, WAS makes it a versatile choice for office tasks, digital signage or industrial control. An integrated heat pipe cooling system ensures stable 24/7-operation and offers professional reliability at an affordable price. The XH810 is the intelligent, economical alternative to bulky and expensive tower PCs.
This text is machine translated.
Despite its favorable positioning, the XH810 makes no compromises in the connectivity. It offers support for three 4K/8K displays, two Intel LAN ports (2.5G + 1G) and up to six serial interfaces, WAS makes it a versatile choice for office tasks, digital signage or industrial control. An integrated heat pipe cooling system ensures stable 24/7-operation and offers professional reliability at an affordable price. The XH810 is the intelligent, economical alternative to bulky and expensive tower PCs.
This text is machine translated.
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
