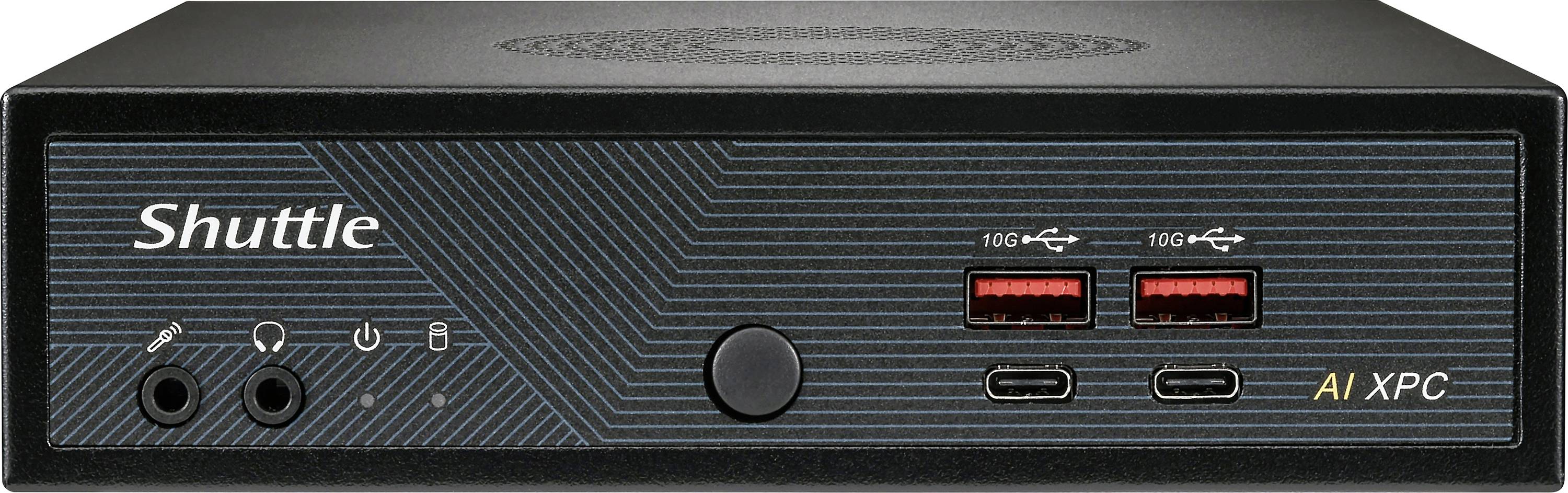

Name: Shuttle Barebone DN11H9 Intel® Core™ Ultra 9 185H DN11H9
Brand: Shuttle
SKU: 3413703

Highlights & Details

Shuttle DN11H9 2.5 cm (1 inch) Barebone

Display: 2.5 cm (1 inch) 3840 x 2160 Pixel
Intel® Core™ Ultra 9 185H 16 core(s) / max. 5.1 GHz
SO-DIMM
Intel Arc Graphics

Technical specifications

Intel Core Ultra 9 processor family
Intel core processor (1 series)
Supported memory: DDR5 SDRAM
SSD form factor M.2
Graphics card family: Intel
Built-in graphics card model: Intel arc graphics
HDMI version 2.1
Panel-mounting interface 75 x 75.100 x 100 mm
Product type: Mini PC Barebone
Motherboard Intel SoC

Product type: Barebone

Display (cm): 2.5 cm

Screen size diagonal (inches): 1 inch

Display resolution: 3840 x 2160 Pixel

CPU series: Intel® Core™ Ultra 9

CPU: Intel® Core™ Ultra 9 185H

Processor/type: 185H

Processor cores (No.): 16 x

CPU speed: 1.8 GHz

CPU turbo clock speed (max.): 5.1 GHz

CPU cache: 24 MB

RAM type: SO-DIMM

No. of memory slots: 2

RAM / Max. upgrade: 96 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

Onboard graphics card (version): Arc Graphics

SSD size (total): 0 GB

SSD: 0 GB

HDD capacity (total): 0 GB

Hard drive: 0 GB

HDD 1 type: Flash

Drive: w/o hard drive

Keyboard layout: Keyboard not included

No. of DisplayPort: 2 x

No. of HDMI ports: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 6 x

No. of USB 3.0 ports: 2 x

Interfaces: Gigabit LAN (1 Gbps)
USB A (USB 3.2 2nd gen)
DisplayPort
HDMI™
USB A (USB 3.2 2nd gen)

Factory colour: Black

Width: 190 mm

Height: 43 mm

Depth: 165 mm

Weight: 1.23 kg

PSU power: 120 W

Display size: - 23 inch

Display: 2.5 cm (1 inch)

No. of USB 3.2 2nd Gen (USB 3.1): 2 x

Cooling: Active

Wireless charging: Yes

Material (details): Metal

Operating voltage: 1.1 V

10/100/1000 Mbps ports: 4 x

Supported monitors: 4

Type: External AC adapter

Power supply (details): 100 - 240 V

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

AC adapter included: yes

Ethernet LAN: yes

Cable lock slot: yes

ECC: no

VESA mounting: yes

Number of memory slots: 2

Headphone outputs: 1

Microphone in: yes

DC-in jack: yes

Built-in speaker(s): no

NVMe: yes

Non-ECC: yes

Trusted Platform Module (TPM): yes

Quick start guide: yes

Power cord included: yes

Efficient cores: 8

Performance cores: 6

Performance-core base frequency: 2.3 GHz

Efficient-core Max Turbo Frequency: 3.8 GHz

Performance-core Max Turbo Frequency: 5.1 GHz

Low Power Efficient-cores: 2

Low Power Efficient-core Max Turbo Frequency: 2.5 GHz

Low Power Efficient-core Base Frequency: 1000 MHz

Number of power supply units: 1

Operating relative humidity (H-H): 10 - 90 %

Package weight: 2.46 kg

Built-in processor: yes

AC adapter output current: 6.32 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3413703 Shuttle Barebone DN11H9 Intel® Core™ Ultra 9 185H DN11H9

Description

The Shuttle AI-PC DN11H series is a 1.3-liter barebone PC with Intel® Core™ Ultra processor that offers significantly improved performance for everyday tasks and business applications. This AI/AI-focused platform integrates CPU, GPU, and special NPU to accelerate calculations in neural networks and provides total system performance of up to 34 TOPS to support complex AI/AI workloads. The DN11H is characterized by its extraordinary connectivity options, including four 2.5G LAN ports for high-bandwidth networks, eight fast USB C/USB A ports, four ports for UHD displays and three M.2-2280 slots for SSD cards, WAS makes it Ideal for data-intensive environments. The DN11H is ideal for various modern business and industrial applications such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control and more.

This text is machine translated.
