Name: Shuttle Barebone NT10H5 2.5 cm (1 inch) Intel® Core™ Ultra 5 125H 4.5 GHz NT10H5
Brand: Shuttle
SKU: 3410849

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

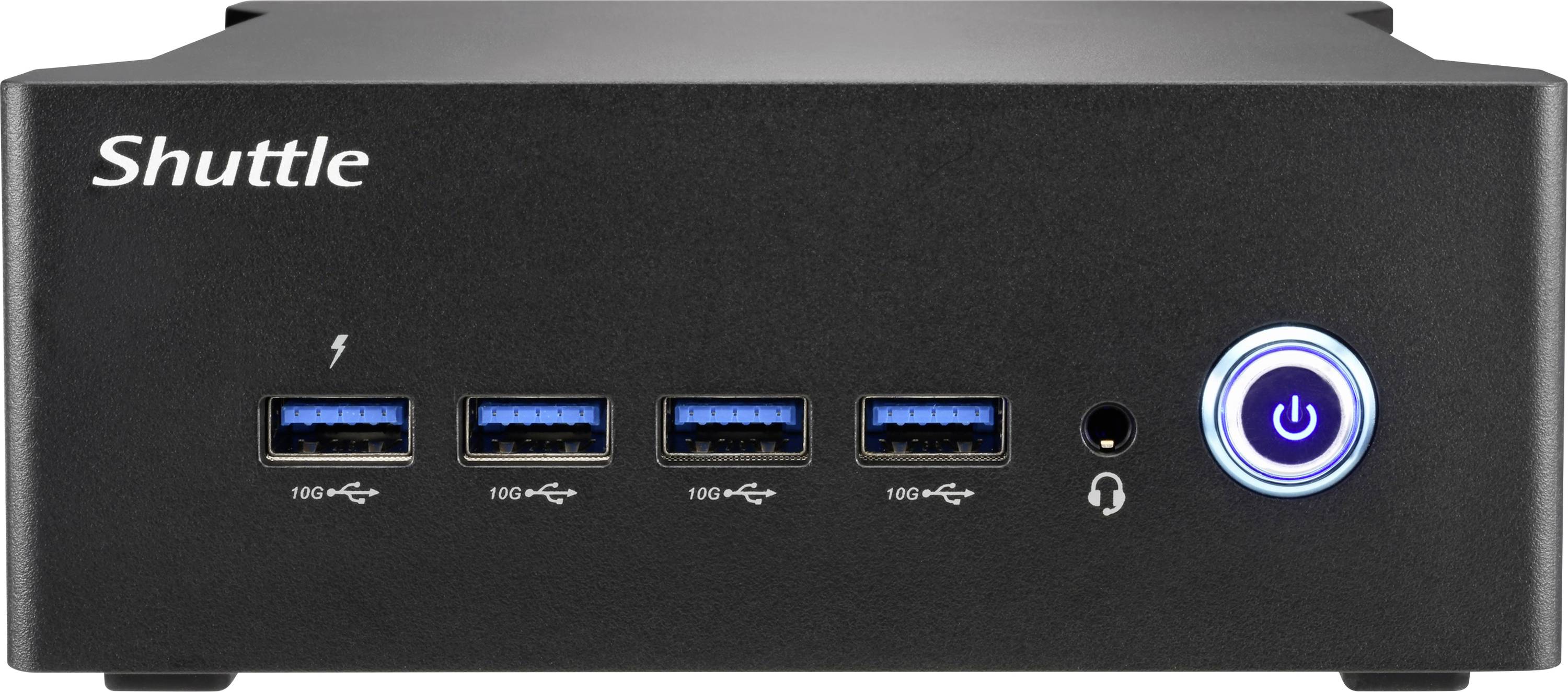

A black computer with the 'Shuttle' lettering on the left side, five USB ports, a headphone socket, and an illuminated power button.

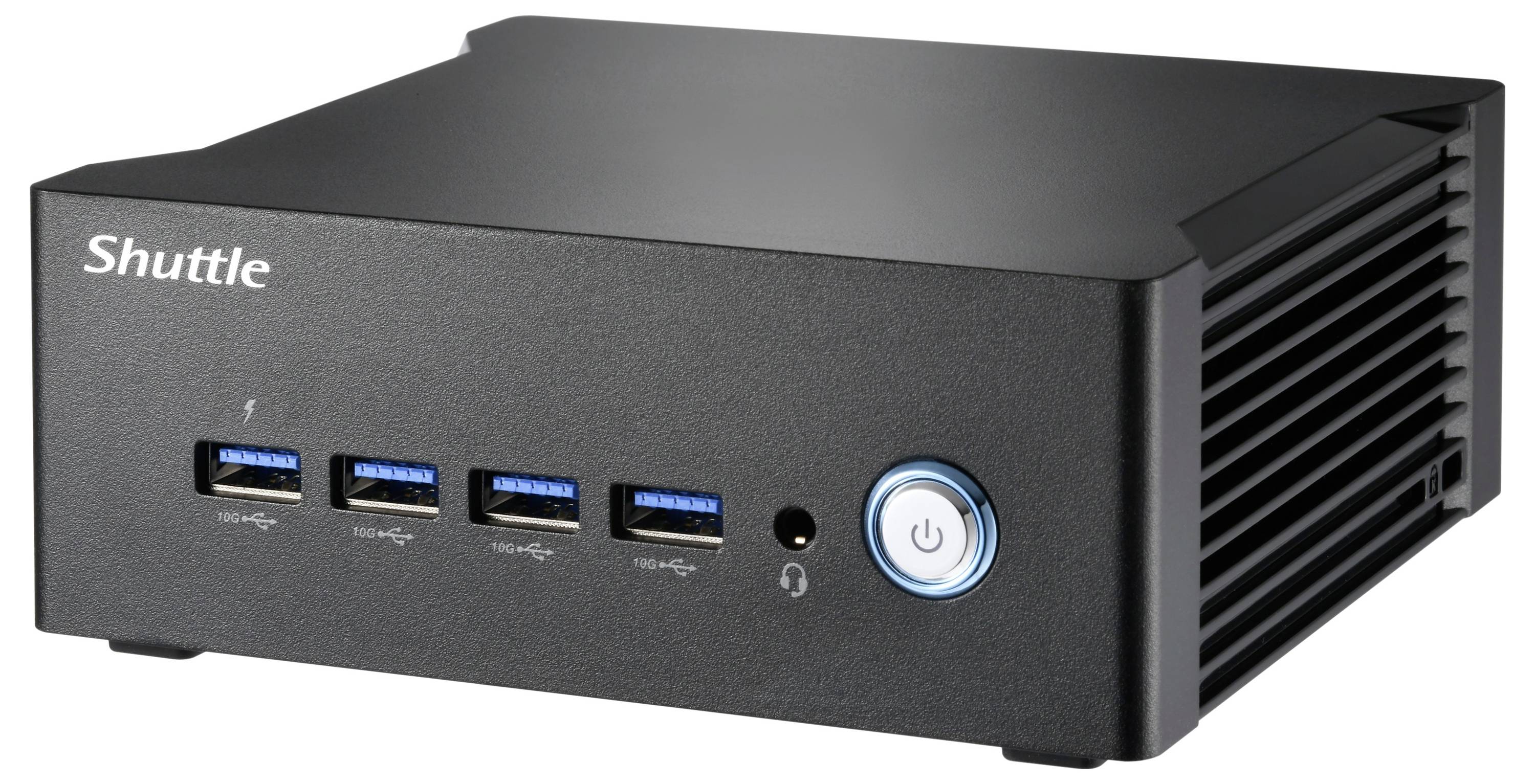

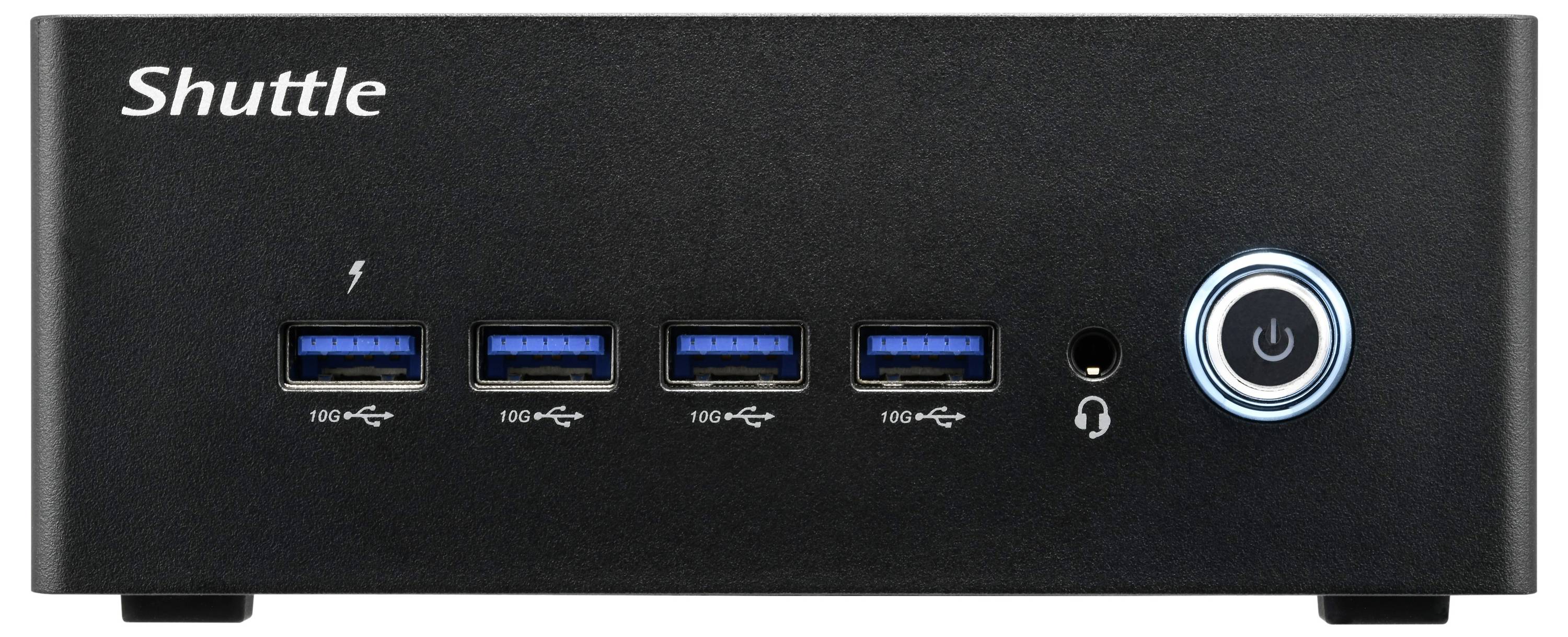

A black shuttle mini PC with four USB ports, headphone socket, and illuminated power switch on the front panel.

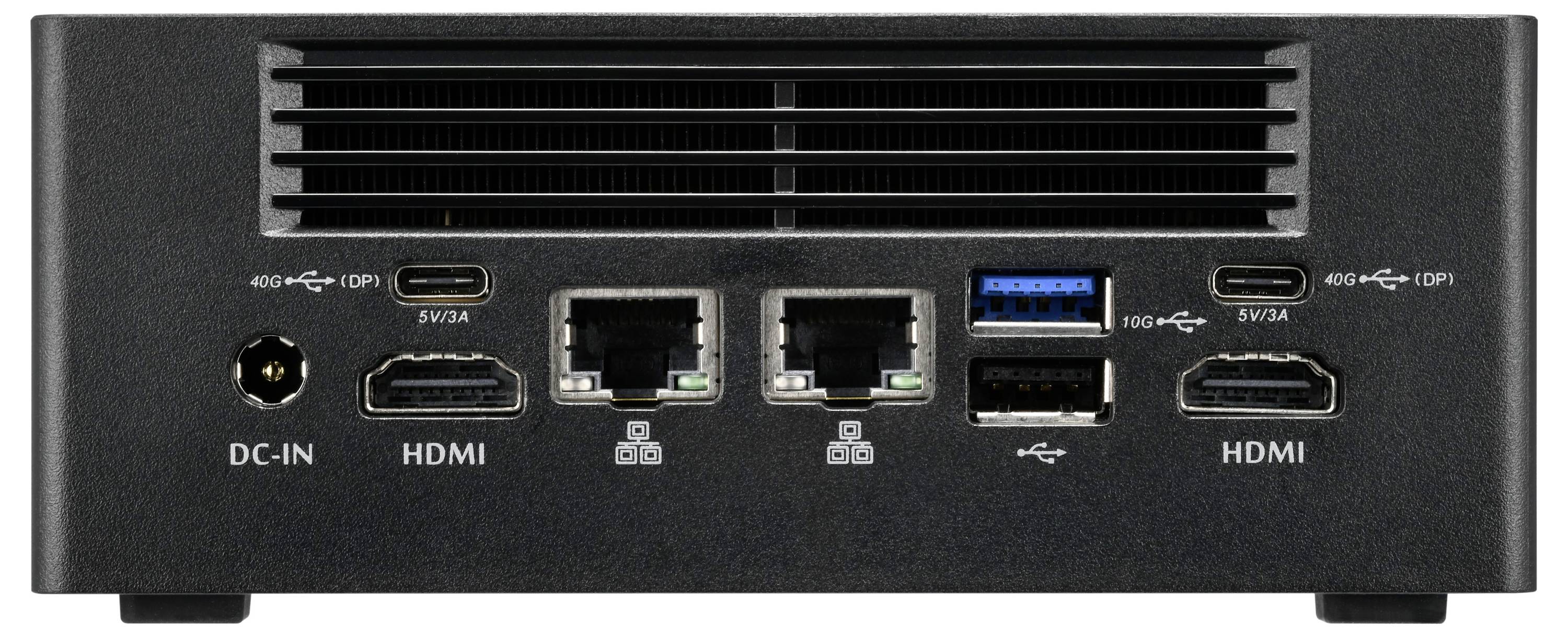

Rear view of a black device with connections: DC-IN, two HDMI, two USB, two LAN ports. Ventilation grille at the top.

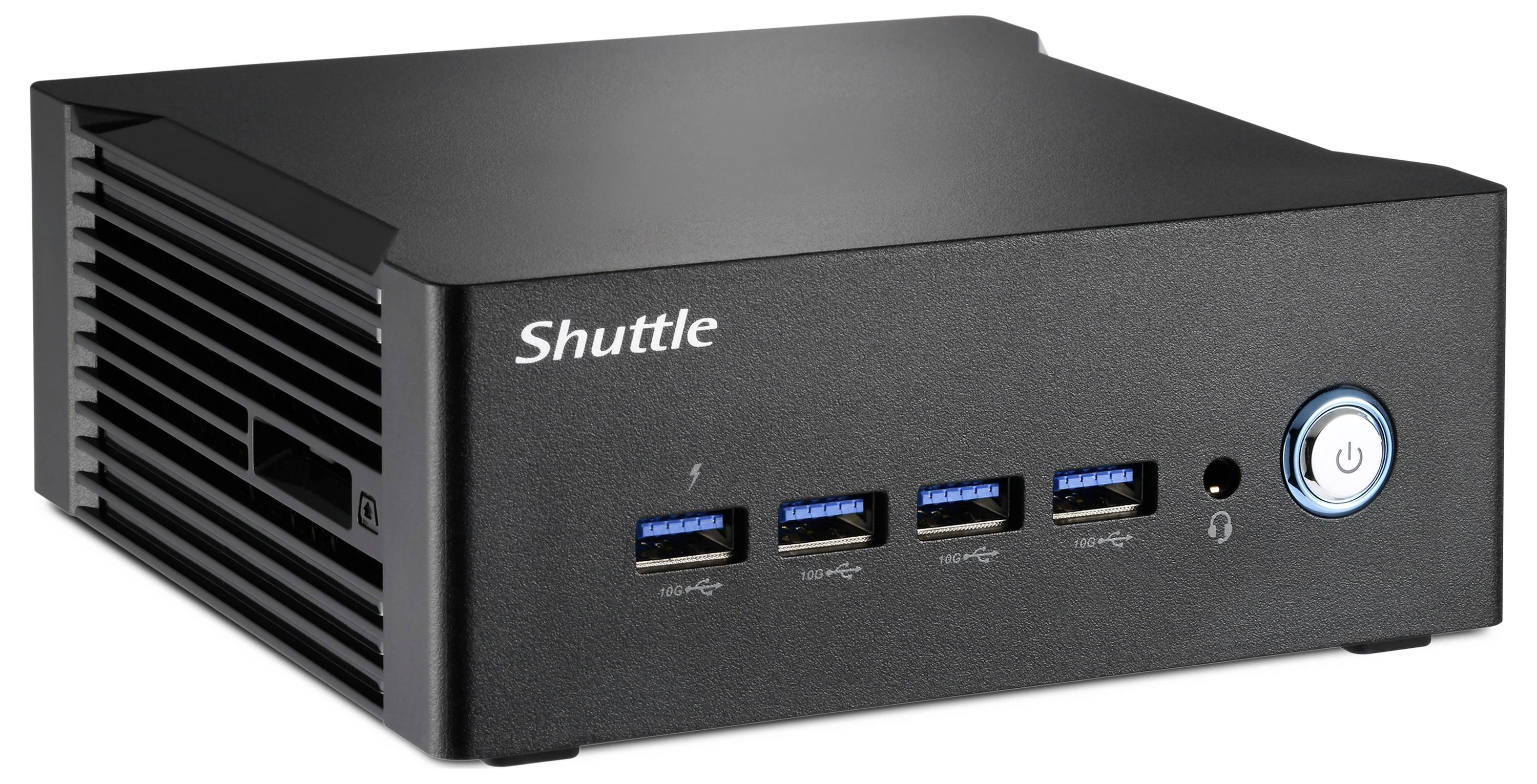

Black shuttle mini PC with four USB ports and a power switch on the front panel. Ventilation openings are visible on the sides.

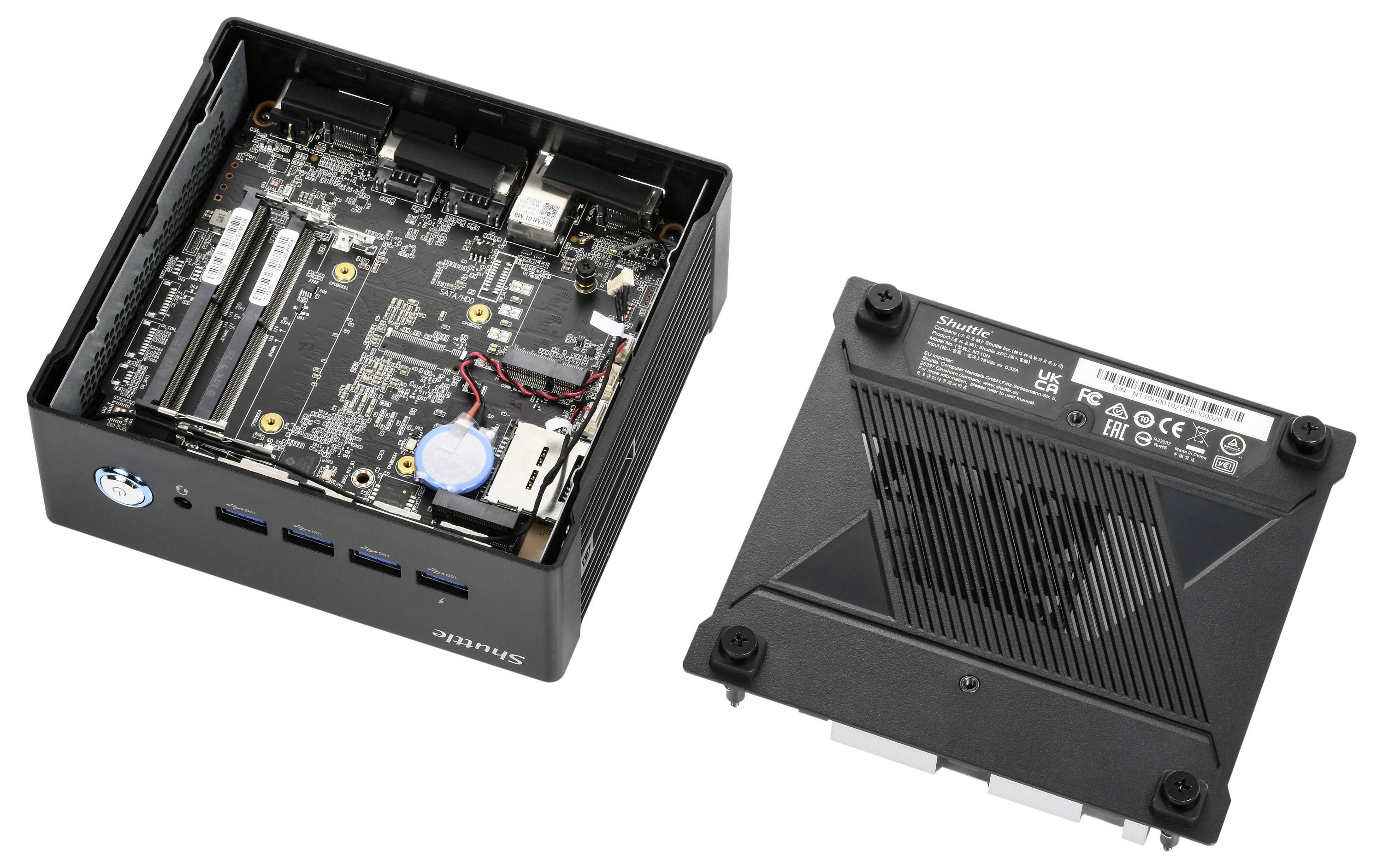

An opened mini-PC with visible hardware components such as a motherboard, memory slots, and connections. Alongside it is the removed case cover.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shuttle NT10H5 2.5 cm (1 inch) Barebone

Display: 2.5 cm (1 inch) 3840 x 2160 Pixel
Intel® Core™ Ultra 5 125H 14 core(s) / max. 4.5 GHz
DDR5 RAM
w/o OS

Technical specifications

Intel Core Ultra 5 processor family
Intel core processor (1 series)
Built-in graphics card model: Intel arc graphics
HDMI version 2.0
Panel-mounting interface 75 x 75.100 x 100 mm
Product type: Mini PC Barebone
Motherboard Intel SoC

Product type: Barebone

Display (cm): 2.5 cm

Screen size diagonal (inches): 1 inch

Display resolution: 3840 x 2160 Pixel

CPU series: Intel® Core™ Ultra 5

CPU: Intel® Core™ Ultra 5 125H

Processor/type: 125H

Processor cores (No.): 14 x

CPU turbo clock speed (max.): 4.5 GHz

CPU cache: 18 MB

RAM type: DDR5 RAM

RAM / Max. upgrade: 64 GB

Onboard graphics card: Yes

HDD capacity (total): 0 GB

Hard drive: 0 GB

HDD 1 type: Flash

Keyboard layout: Keyboard not included

No. of HDMI ports: 2 x

No. of USB A 2.0 ports: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 5 x

Interfaces: USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
HDMI™

Factory colour: Black

Width: 132 mm

Height: 55 mm

Depth: 143 mm

Weight: 800 g

PSU power: 120 W

Operating system (Version): w/o OS

Display size: - 23 inch

Display: 2.5 cm (1 inch)

Graphics card type: Intel Arc™ Graphics

No. of graphics cards: 1

GPU brand: Intel

Cooling: Active

Wireless charging: Yes

Operating voltage: 1.1 V

10/100/1000 Mbps ports: 2 x

Supported monitors: 4

Type: External AC adapter

Power supply (details): 100 - 240 V

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

AC adapter included: yes

Ethernet LAN: yes

Cable lock slot: yes

ECC: no

VESA mounting: yes

Number of memory slots: 2

DC-in jack: yes

Built-in speaker(s): no

NVMe: yes

Card reader integrated: yes

Non-ECC: yes

Trusted Platform Module (TPM): yes

Quick start guide: yes

Power cord included: yes

USB4 Gen 2x2 ports quantity: 2

Efficient cores: 8

Performance cores: 4

Efficient-core base frequency: 0.7 GHz

Performance-core base frequency: 1.2 GHz

Efficient-core Max Turbo Frequency: 3.6 GHz

Performance-core Max Turbo Frequency: 4.5 GHz

Low Power Efficient-core Max Turbo Frequency: 2.5 GHz

Low Power Efficient-core Base Frequency: 700 MHz

Number of power supply units: 1

On/off switch: yes

Operating relative humidity (H-H): 10 - 90 %

Package weight: 1.7 kg

Built-in processor: yes

AC adapter output current: 6.32 A

Combo headphone/mic port: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3410849 Shuttle Barebone NT10H5 2.5 cm (1 inch) Intel® Core™ Ultra 5 125H 4.5 GHz NT10H5

Description

The Shuttle nano PC Barebone of the NT10H series is a compact mini PC in a 1 liter nano design with extended functions and efficiency for multitasking and AI applications. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics accelerator and AI BOOST NPU, it effortlessly handles sophisticated graphics processing. It supports output to four 4K/UHD displays and offers a wide range of connectivity options including two USB4, Dual 2.5G Intel® network and a PCIe-4.0 SSD slot. This power pack is Ideal for gaming, AI software, image processing and the creation of multimedia content. It offers a strong performance at an affordable price and enables both everyday tasks and professional projects with excellent results.

This text is machine translated.
