Name: Shuttle Barebone SPCEL03 Intel® Atom® x6413E 3 GHz Intel FreeDOS SPCEL03
Brand: Shuttle
SKU: 3348190

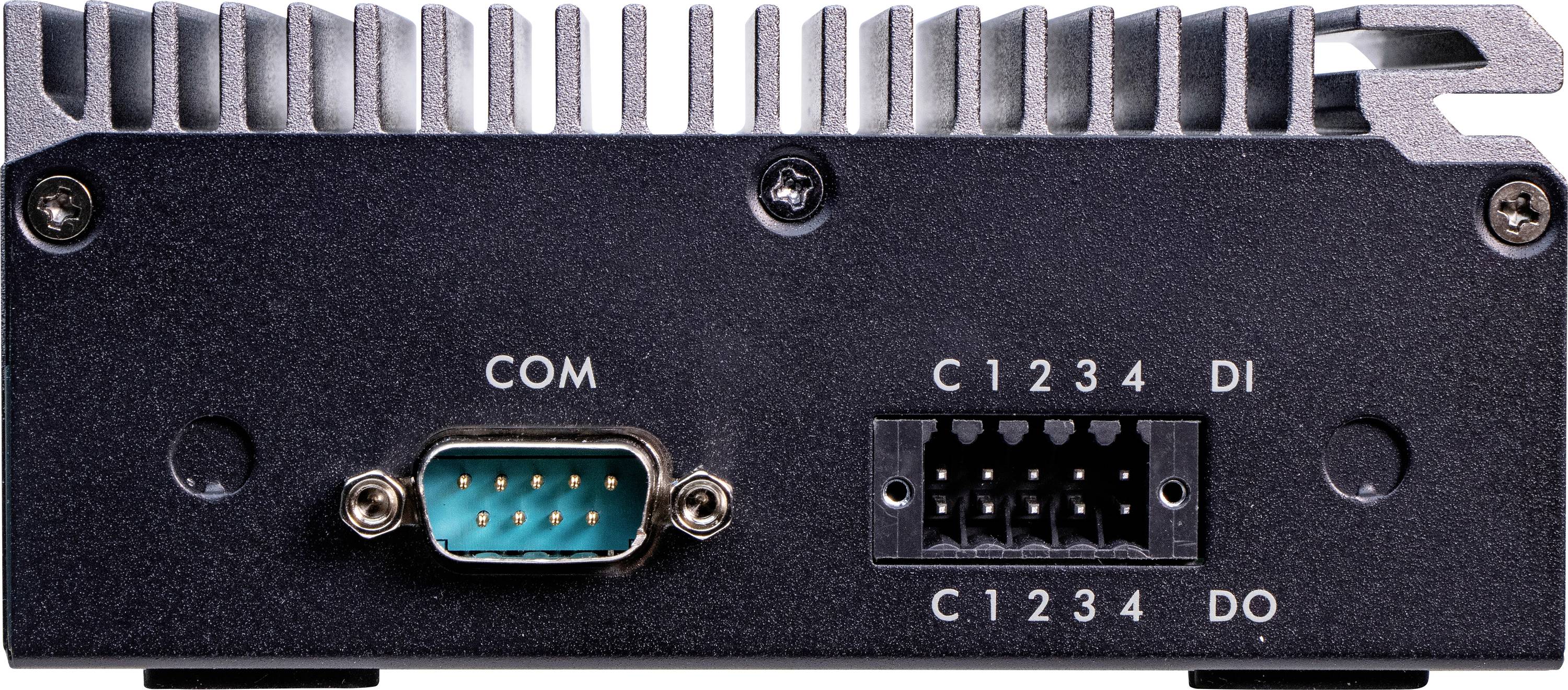

Rear view of an electronic device with COM port and other ports labelled 'C1-4', 'DI', 'DO'.

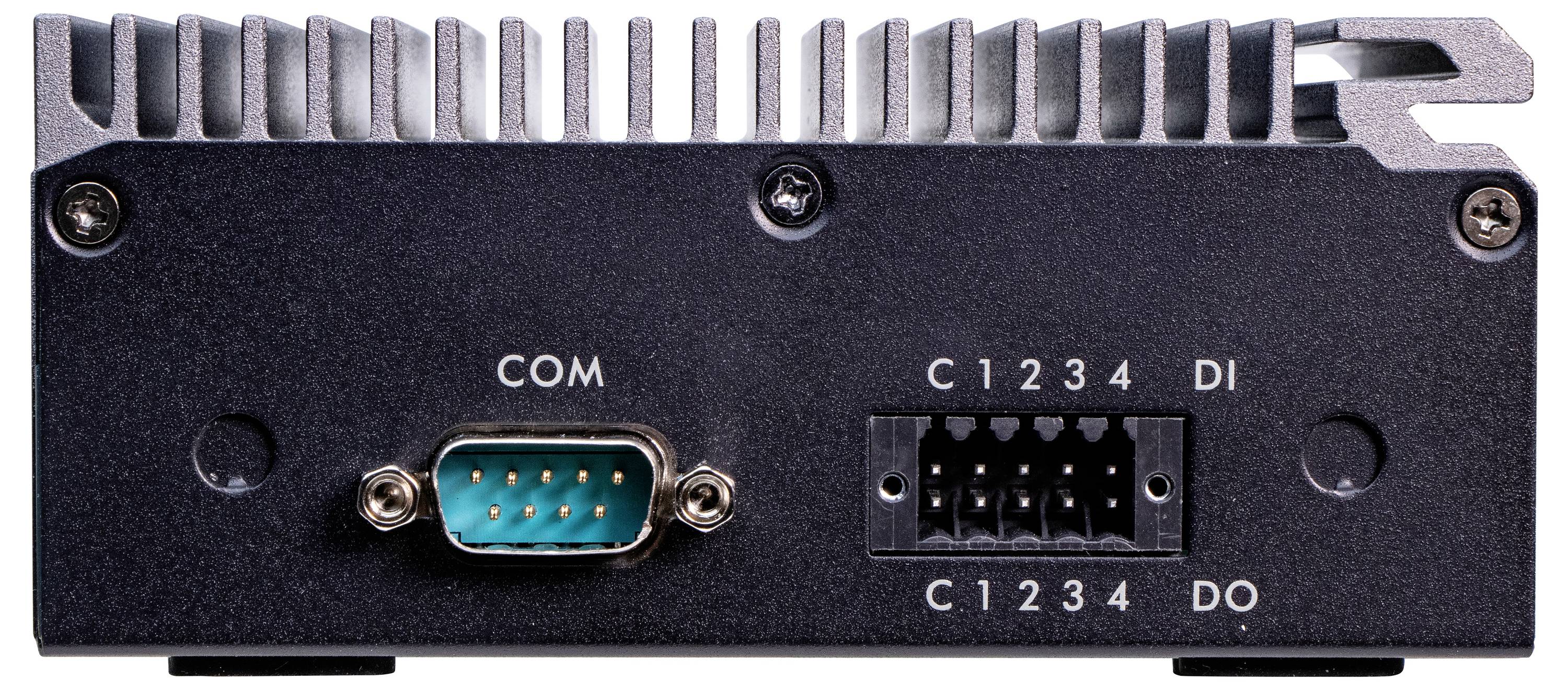

Back of an electronic device with a COM port and a digital I/O connector.

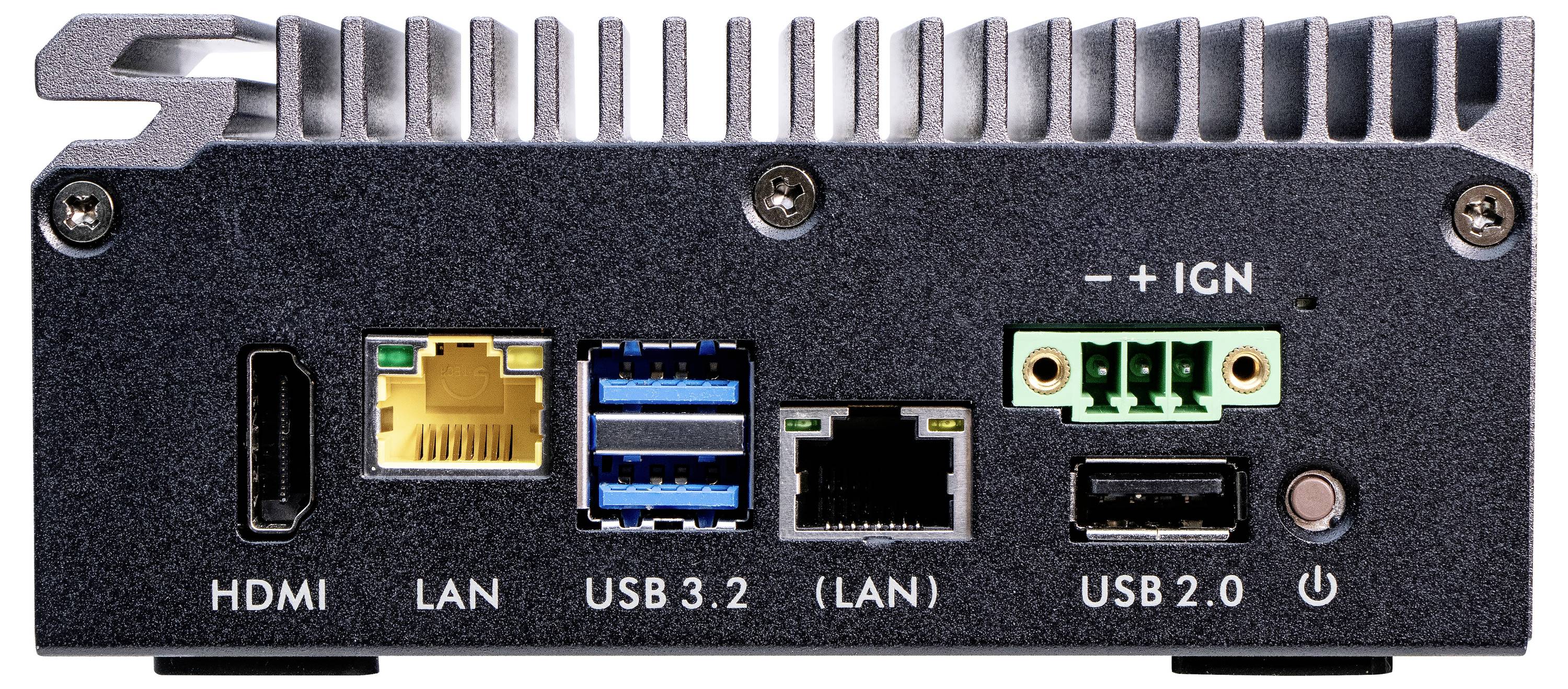

'Back of an electronic device with ports: HDMI, LAN, two USB 3.2, USB 2.0, and slots for additional power.'

A small electrical device with multiple connection ports. On the left is a COM port, and to the right is an area with five connections, labelled 'C1234', 'DI', 'DO'.

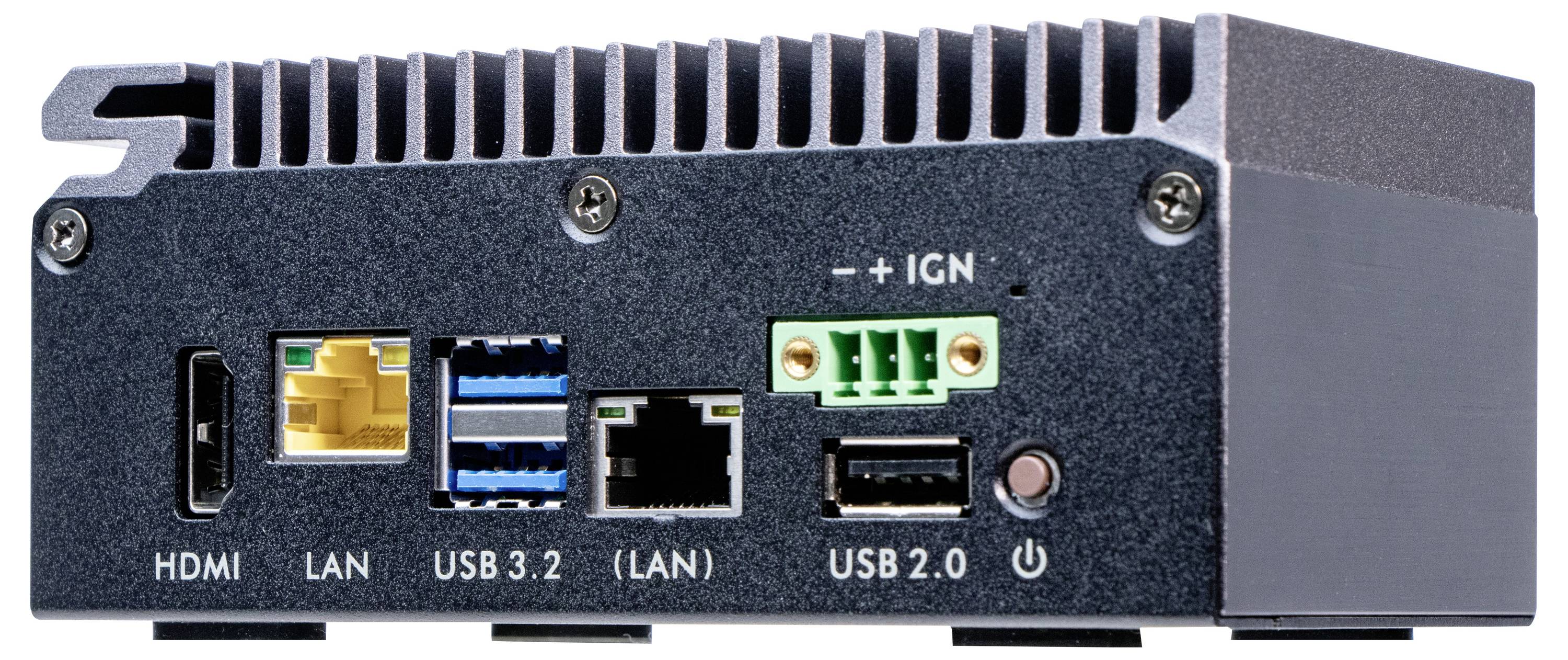

Compact computer with connections: HDMI, LAN, USB 3.2, LAN, USB 2.0. Ventilation slots visible on top, with power and volume +/- buttons.

A black mini PC with an aluminium heatsink shows connections for HDMI, LAN, USB 3.2, USB 2.0 and power (+ IGN).

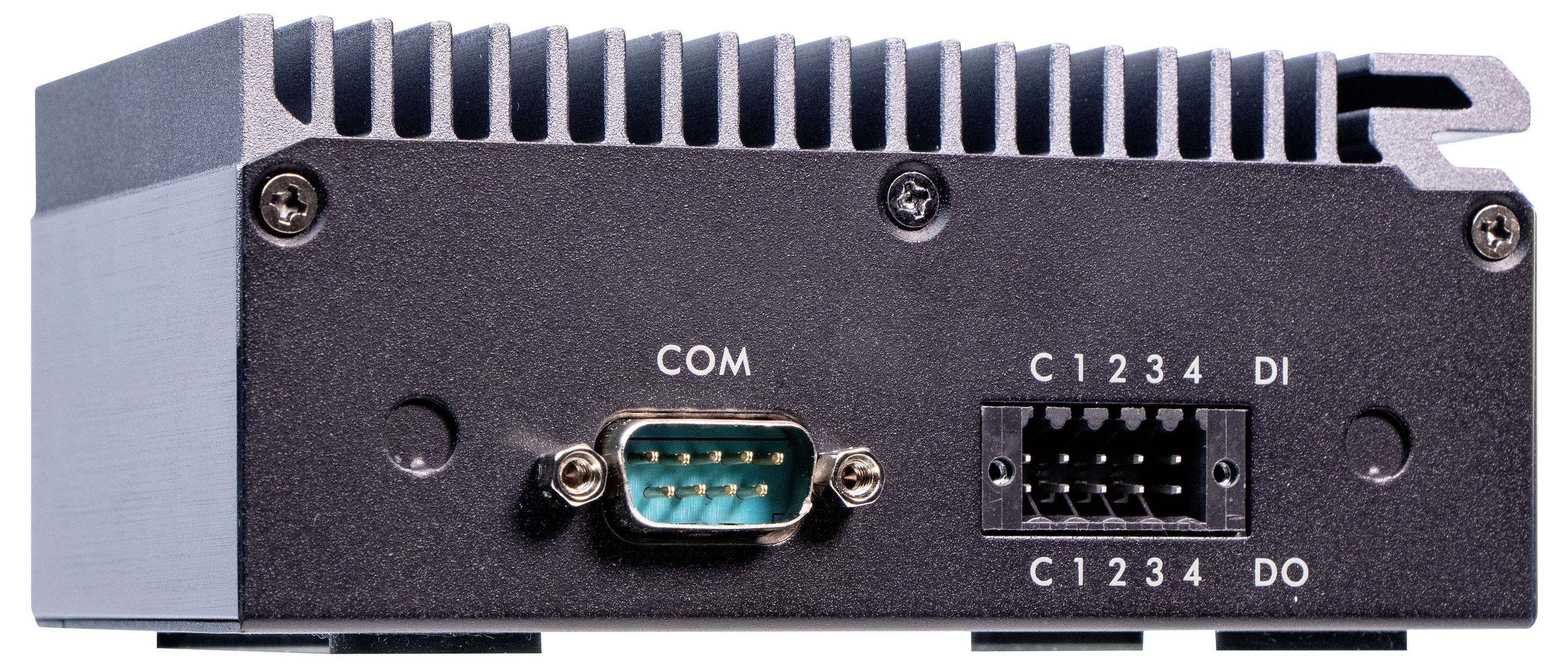

Back of an electronic device with a COM port and several numbered ports for digital input (DI) and output (DO).

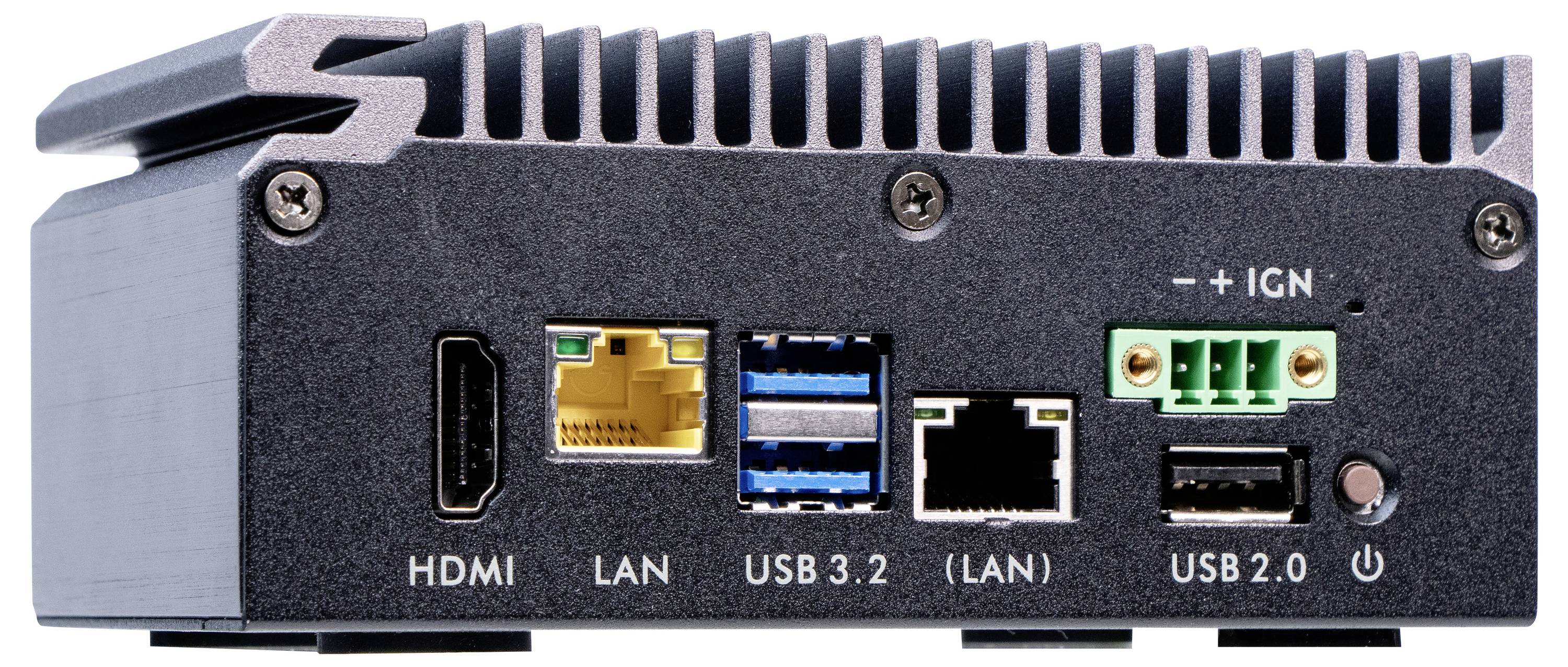

'A compact computer shows connections: HDMI, LAN, two USB 3.2 ports, LAN port, USB 2.0 and a power switch'

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shuttle SPCEL03 Barebone

Intel® Atom® x6413E 4 core(s) / max. 3 GHz
SO-DIMM
Intel
w/o OS

Technical specifications

Processor family: Intel ATOM®
Built-in graphics card model: Intel® UHD Graphics
HDMI version: 2.0b
Product type: Mini PC Barebone
Motherboard Intel SoC
Processor socket BGA 1493
Installed operating system: No.

Product type: Barebone

CPU series: Intel® Atom®

CPU: Intel® Atom® x6413E

Processor/type: x6413E

Processor cores (No.): 4 x

CPU speed: 1.5 GHz

CPU turbo clock speed (max.): 3 GHz

RAM type: SO-DIMM

No. of memory slots: 1

RAM / Max. upgrade: 32 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

HDD capacity (total): 0 GB

Hard drive: 0 GB

HDD 1 type: Flash

Keyboard layout: Keyboard not included

No. of HDMI ports: 1 x

No. of serial ports: 1 x

No. of USB A 2.0 ports: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 2 x

Interfaces: USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1 Gbps)
HDMI™

Factory colour: Black

Width: 120 mm

Height: 51 mm

Depth: 75 mm

Weight: 720 g

Operating system (Version): w/o OS

Control LEDs: Yes

Design height: 51 mm

No. of 10 Gb LAN ports: 2 x

No. of USB ports: 1 x

Form factor: M.2 Module

Cooling: Passive

Chipset: SoC

Power supply (LOV): mains-powered

Wireless charging: Yes

Power consumption (max.): 9 W

Operating voltage: 1.2 V

No. of HDMI connections: 1

10/100/1000 Mbps ports: 2 x

Type: External AC adapter

Built-in speakers: No

: 100 x 100 mm

Wall mounting option: 100 x 100 mm VESA standard

Wi-Fi: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3348190 Shuttle Barebone SPCEL03 Intel® Atom® x6413E 3 GHz Intel FreeDOS SPCEL03

Description

The Shuttle Edge PC SPCEL03 is a fan-less IPC barebones in the robust 450 ml metal housing. Mounting is possible with DIN-rail or VESA bracket. It has versatile uses and designed for reliable maintenance free continuous operation at up to 60 °C. Internally, there is a Intel atom "Elkhart Lake" processor with slots for RAM module, M.2-SSD card and WLAN card. The small housing offers an amazing variety of connections such as Dual network, COM port and digital I / O. The Shuttle SPCEL03 is intended for professional applications such as edge computing (IoT gateway), automation, control, digital signage, data acquisition and video surveillance.
