Name: Siemens 3NA7802 Fuse holder inset Fuse size = 000 2 A 500 V AC, 250 V DC 3 pc(s)
Brand: Siemens
SKU: 2262442

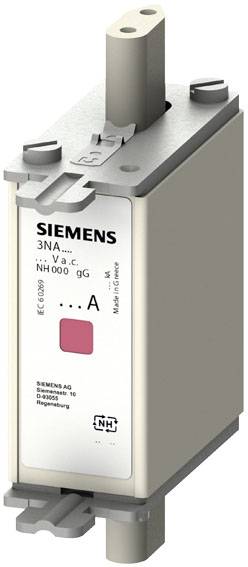

Siemens Industrial Fuse, Type 3NA NH 000 gG, suitable for electrical applications. Housing in grey with technical label.

Image similar

Product type

Fuse holder inset

Fuse size

000

Nominal current - rounded value

2 A

Type

With blade contacts

RoHS-compliant

Yes

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design of the indicator: Combination indicator
Design of the switching contact: Corrosion-free, silver-plated
Fastening method: Live grip lugs
Installation position: Any, preferably vertical
Protection class IP: IP20, with connected conductors
Ambient temperature / during operation / minimum: -5 °C.
Ambient temperature / during operation / maximum 40 °C.
Power loss / maximum 1.3 W.
Order of priority of size: 10

Type: With blade contacts

Product type: Fuse holder inset

Fuse size: 000

RoHS-compliant: Yes

Content: 3 pc(s)

Nominal current: 2 A

Nominal current - rounded value: 2 A

Duty class: gG

Nominal voltage: 500 V AC
250 V DC

Width: 21 mm

: AC/DC

: 2 A

: 500 V

: 120 A

: gL/gG (cable protection/equipment protection)

: Combination fuse status indicator

: 500

: 250

: 1.3

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Fuse size

Siemens 3NA7802 Fuse holder inset Fuse size = 000 2 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262442

Unavailable

Conrad Electronic

This article

2 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NA3120 Fuse holder inset Fuse size = 1 50 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262427

Fast track dispatch on Wed 4 Nov

3 Set(s)Conrad Electronic

50 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Siemens 3NA3142 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 1 224 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262428

Fast track dispatch on Wed 4 Nov

1 Set(s)Conrad Electronic

224 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Siemens 3NA3801 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 6 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262430

Fast track dispatch on Wed 4 Nov

6 Set(s)Conrad Electronic

6 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Siemens 3NA6804 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 4 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262432

Fast track dispatch on Wed 4 Nov

6 Set(s)Conrad Electronic

4 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Siemens 3NA68144 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 35 A 400 V AC 3 pc(s)

Item no:2262433

Fast track dispatch on Wed 4 Nov

2 Set(s)Conrad Electronic

35 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Siemens 3NA68247 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 00 80 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262435

Available soon

Conrad Electronic

80 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Siemens 3NA68304 Fuse holder inset Suitable for Fuse size 000 - 4 Fuse size = 000 100 A 400 V AC 3 pc(s)

Item no:2262436

Dispatches on Tue 10 Nov

Conrad Electronic

100 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

Siemens 3NA68307 Fuse holder inset Suitable for Fuse size 000 - 4 Fuse size = 00 100 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262438

Dispatches on Tue 10 Nov

Conrad Electronic

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Siemens 3NA7224 Fuse holder inset Fuse size = 2 80 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262439

Fast track dispatch on Wed 4 Nov

1 Set(s)Conrad Electronic

80 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Documents & Downloads

Datasheet

Datasheet 2262442 Siemens 3NA7802 Fuse holder inset Fuse size = 000 2 A 500 V AC, 250 V DC 3 pc(s)

User & Safety Instructions

User & Safety Instructions 2262442 Siemens 3NA7802 Fuse holder inset Fuse size = 000 2 A 500 V AC, 250 V DC 3 pc(s)

Description

NH-fuse link, NH000, in: 2 A, GG, UN AC: 500 V, UN DC: 250 V, combination indicator, live grip tabs NH-fuse system 3NA, 3ND for selective line and system protection. The NH-fuse system from Siemens as an important component of the SENTRON protective components for electrical installation offers effective personal, device and plant protection through safe shutdown in the event of an overload or short-circuit. In comparison to miniature circuit breakers, higher short-circuit currents can be realized with better current limitation at the same time. The NH fuse system is characterized above all by: 1. Combination detectors signal that the fuse is switched off by a clear color change from red to white. 2. More safety when changing through insulated grip lugs. 3. High selectivity at low cost. 4. Long-term and safe operation thanks to silver-plated contact blades. 5. Fuse links from 2 A to 1250 A and in sizes 000, 00, 0, 1, 2, 3, 4 and 4a available.
