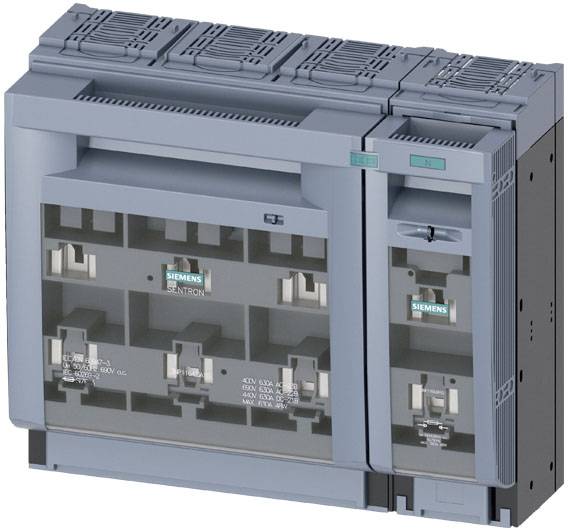

Siemens 3NP11641DA10 Switch disconnector fuse Fuse size = 3 630 A 690 V AC, 440 V DC 1 pc(s)
Product type
Switch disconnector fuse
Fuse size
3
Number of pins
4
Nominal current - rounded value
630 A
Type
Cover level 70 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design of the basic type: 3NP11
- Mounting method: Mounting plate
- Mounting position: Horizontal / vertical
- PROTECTION CLASS IP20, IP30, IP40
- Ambient temperature during operation: -25 °C - +55 °C
- Power loss max. 264 W.
- Design of electrical connection for main circuit: Rail connection
- Insulation voltage 690 V
- NH fuse system
- Surge voltage resistance: 8 kV
- Floor mounting: Yes
- Mechanical life (cycles) / typical: 1000
- Locking: Yes
- Lead-sealable: Yes
- Type
Cover level 70 mm
- Product type
Switch disconnector fuse
- Fuse size
3
- Number of pins
4
- RoHS-compliant
Yes

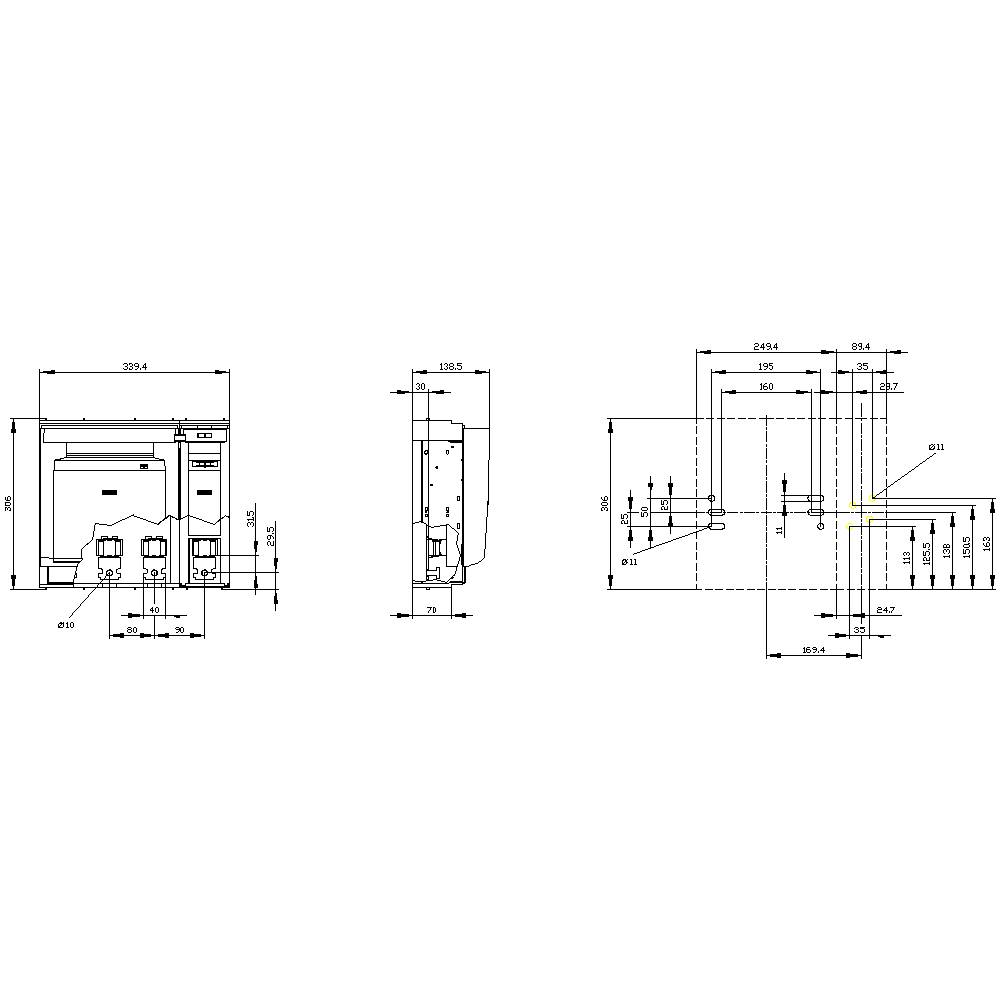

- Dim
(W x H x D) 339 x 306 x 138.5 mm
- Content
1 pc(s)
- Nominal current
630 A
- Nominal current - rounded value
630 A
- Nominal voltage
690 V AC
440 V DC
- Width
339 mm
- Height
306 mm
- Depth
138.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2864103 Siemens 3NP11641DA10 Switch disconnector fuse Fuse size = 3 630 A 690 V AC, 440 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2864103 Siemens 3NP11641DA10 Switch disconnector fuse Fuse size = 3 630 A 690 V AC, 440 V DC 1 pc(s)
Description
SENTRON, 3NP1 fuse disconnector, 4-pole, NH3, 630 A, for mounting and mounting on mounting plate, flat connection, cover level 70mm
