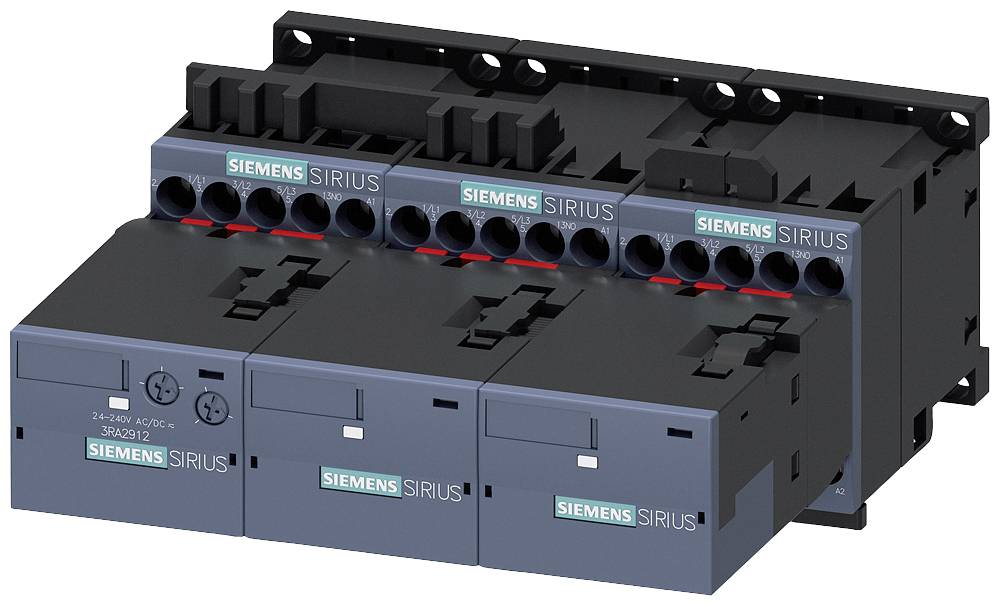

Siemens 3RA2416-8XF31-1AP6 Star-delta combo 7.5 kW + auxiliary contact 1 pc(s)

Star delta combination AC-3, 7.5 kW/400 V, AC 220 V 50 Hz / 240 V, 60 Hz, 3-pole size S00, screw connection electrical and mechanical interlocking 3 S integrated star triangle combination SIRIUS 3RA24 for gentle starting of synchronous motors.
The 3RA24 star-delta combination is a tested, factory-pre-assembled combination of three 3RT2 contactors, which are already wired and mechanically and electrically locked. The additionally included function module with integrated control logic and time setting replaces the complete wiring in the control circuit. They are climate-proof, globally approved (e.g. IEC and UL/CSA) and IE3/IE4 ready.
The 3RA24 star-delta combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring-type connection technology for mounting on DIN rail or screw mounting. In addition, variants for connecting to IO-Link or AS-Interface are available.
The accessories of the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations.
The 3RA24 star delta combinations replace the tried-and-tested 3RA14 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
