Name: Siemens 3RH2911-1HA03 Auxiliary switch 3 breakers pluggable Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 2862273

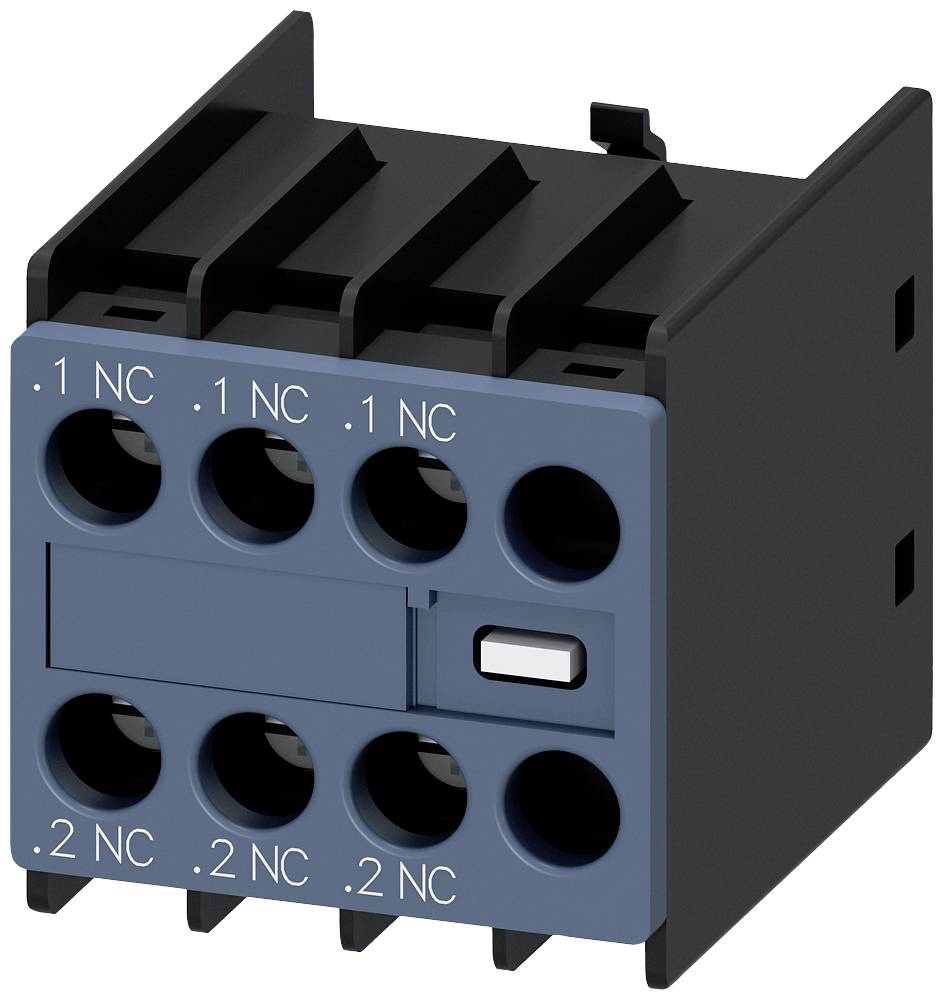

Black and blue electrical switching device with multiple connections, labelled '.1 NC' and '.2 NC'.<br><br>(Note: The translation maintains the technical description and uses standard British English terminology.)

An industrial control cabinet with an open door reveals complex wiring and control components. A rain-streaked window is visible in the background.

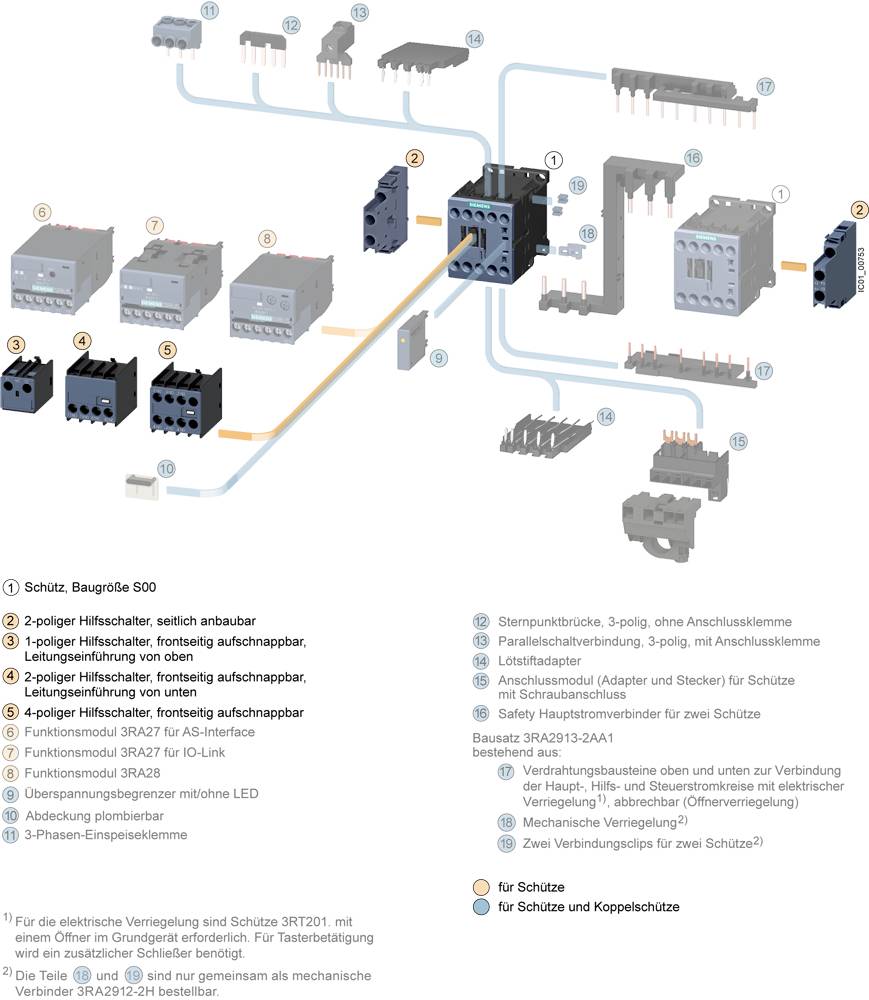

Image shows various components for the shooter, including auxiliary switches, functional modules, and connection plugs. Assembly illustrated.

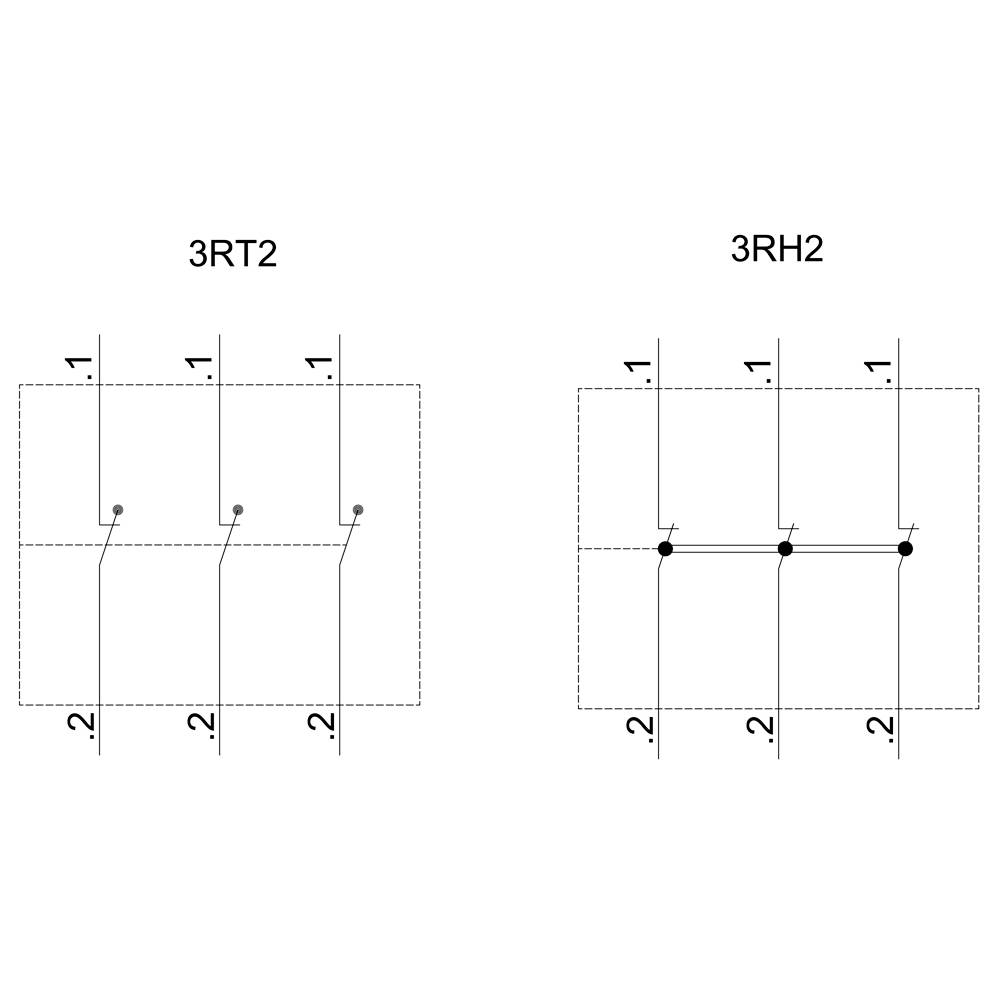

Circuit diagram with two diagrams. Left: 3RT2 with three vertical lines. Right: 3RH2 with parallel horizontal lines.

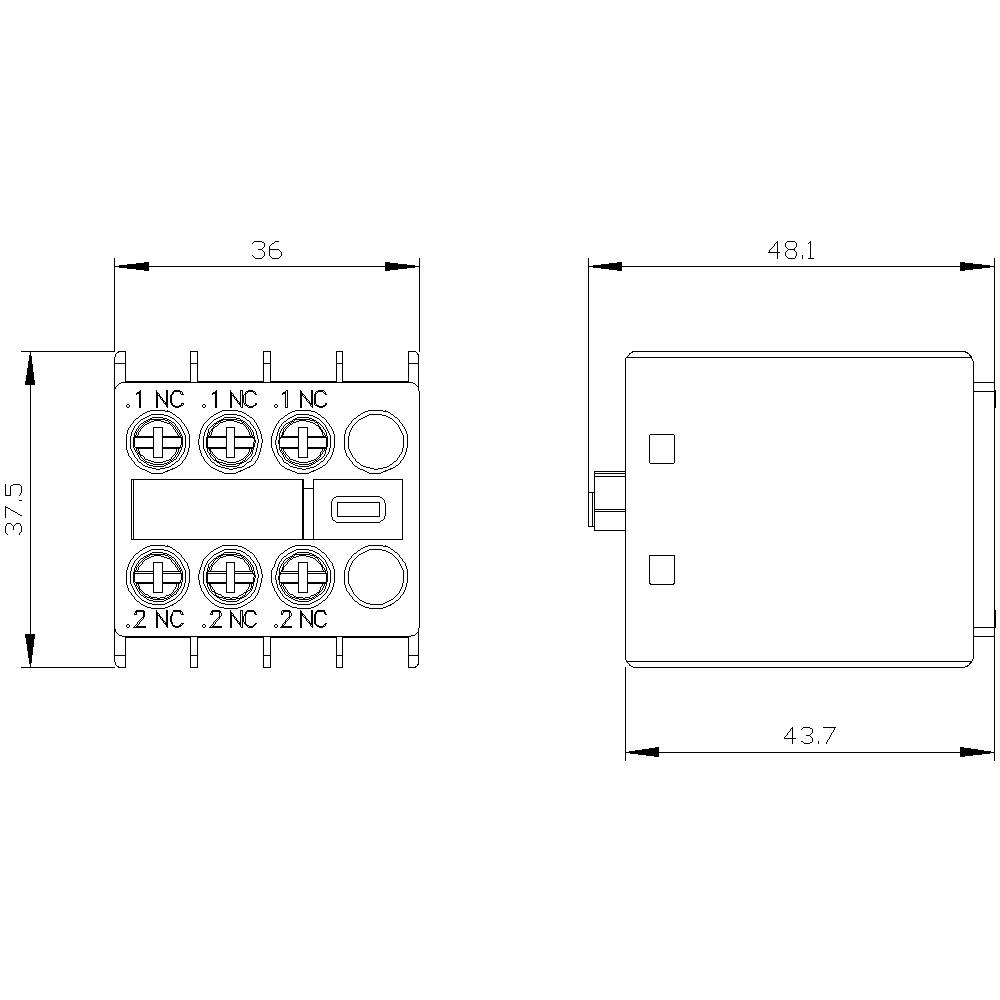

Technical drawing of an electrical relay with dimensions: Width 36 mm, Height 37.5 mm, Depth 48.1 mm. Shows connections and mounting points.

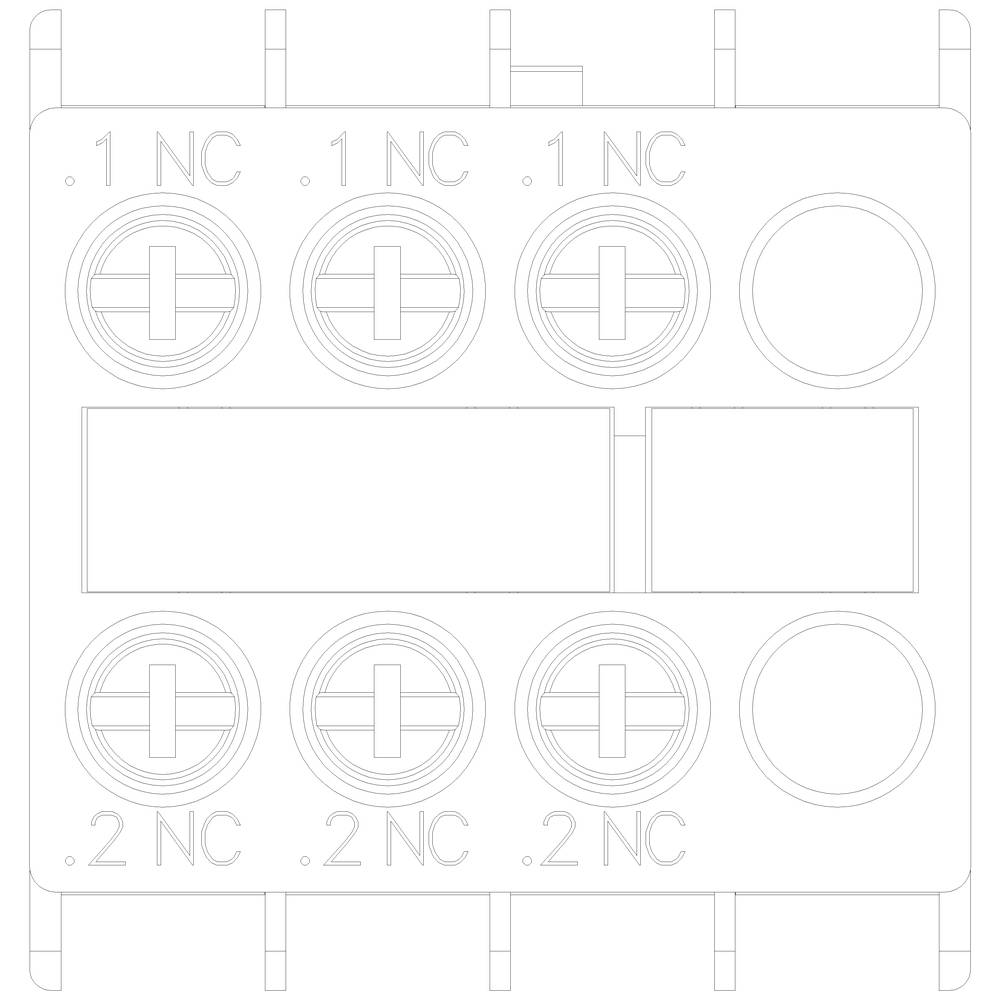

A circuit diagram shows an electrical terminal block with labels '.1 NC' and '.2 NC' for two rows, each with three round connections.

1/6

Image similar

Product type

Auxiliary switch

Connection

Screws

Type

3RH2911-1HA03

Type

S00

Contact type

3 breakers

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design of product: Snap-on frontProduct function / forced management: YesProduct function / forced guidance, note: With 3RH2Product function / mirror contact: YesProduct function / mirror contact, note: With 3RT2Application area: For expansion of auxiliary contacts in the control circuitSuitability for use: Auxiliary and power contactorSurge voltage resistance: 6 kVType of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 16), 2x (18 ... 14)Type of connectable conductor cross-sections / for auxiliary contacts / single-wire or multi-wired: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / with wire-end processing: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²

Product type: Auxiliary switch

Type: 3RH2911-1HA03

Type: S00
S0
S2
S3

Contact type: 3 breakers

Auxiliary contact type: 3 breakers

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: pluggable

Mounting type: Snap-in

Connection: Screws

Electrical lifespan: 200000

Durability: 10000000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 36 mm

Height: 37.5 mm

Depth: 43.7 mm

Dim: (W x H x D) 36 x 37.5 x 43.7 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2862273 Siemens 3RH2911-1HA03 Auxiliary switch 3 breakers pluggable Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2862273 Siemens 3RH2911-1HA03 Auxiliary switch 3 breakers pluggable Compatible with (relay brand): Siemens 1 pc(s)

Description

Auxiliary switch on the front, 3 NC, 1 N/O current, 1 NC, 1 O for 3RH2 and 3RT2 screw terminals .1/.2, .1/.2, .1/.2 SIRIUS 3RH29 auxiliary contacts for expansion of the auxiliary contacts in the control circuit.The 3RH29 front-side auxiliary switches can be mounted on the 3RT2 contactors and 3RH2 contactor relays without any size tools.The 3RH19/3RH29 auxiliary switches are available as front-side or side-mountable variants, with up to four instantaneous switching or up to two leading-edge closing contacts and NC contacts. The auxiliary switches can be designed as positively-driven contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT power contactors. They are available throughout with screw connection and spring connection.Simple, efficient, always up-to-date - the SIRIUS modular system.
