Name: Siemens 3RV2021-1DA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 2.2 - 3.2 A Switching voltage (max.): 690 V A
Brand: Siemens
SKU: 1750306
Availability: BackOrder

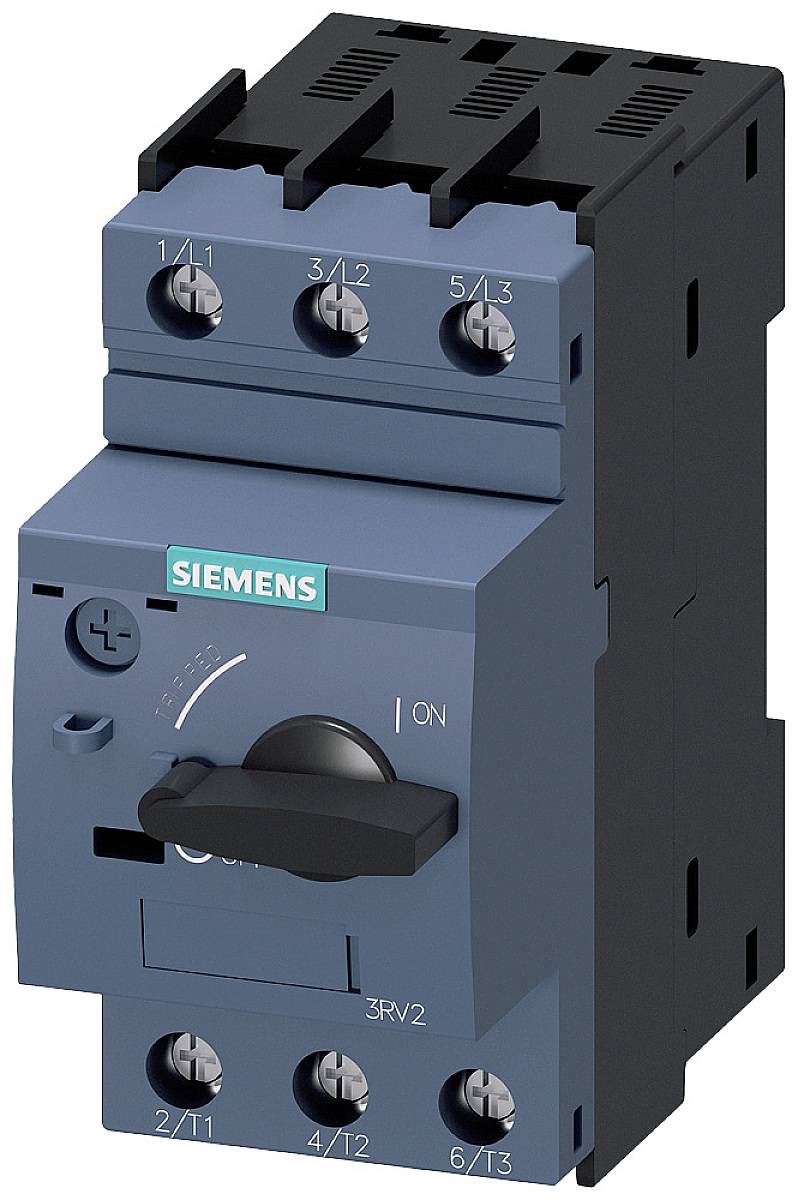

'A blue Siemens circuit breaker with a black rotary knob and six connection terminals, for electrical protection.'

An electrical control box with electronic components on the left, beside a rain-soaked window with a blurred view of an industrial facility.

'Mounting Accessories for Circuit Breakers': Graphical representation of various accessory parts with labels for use with circuit breakers.

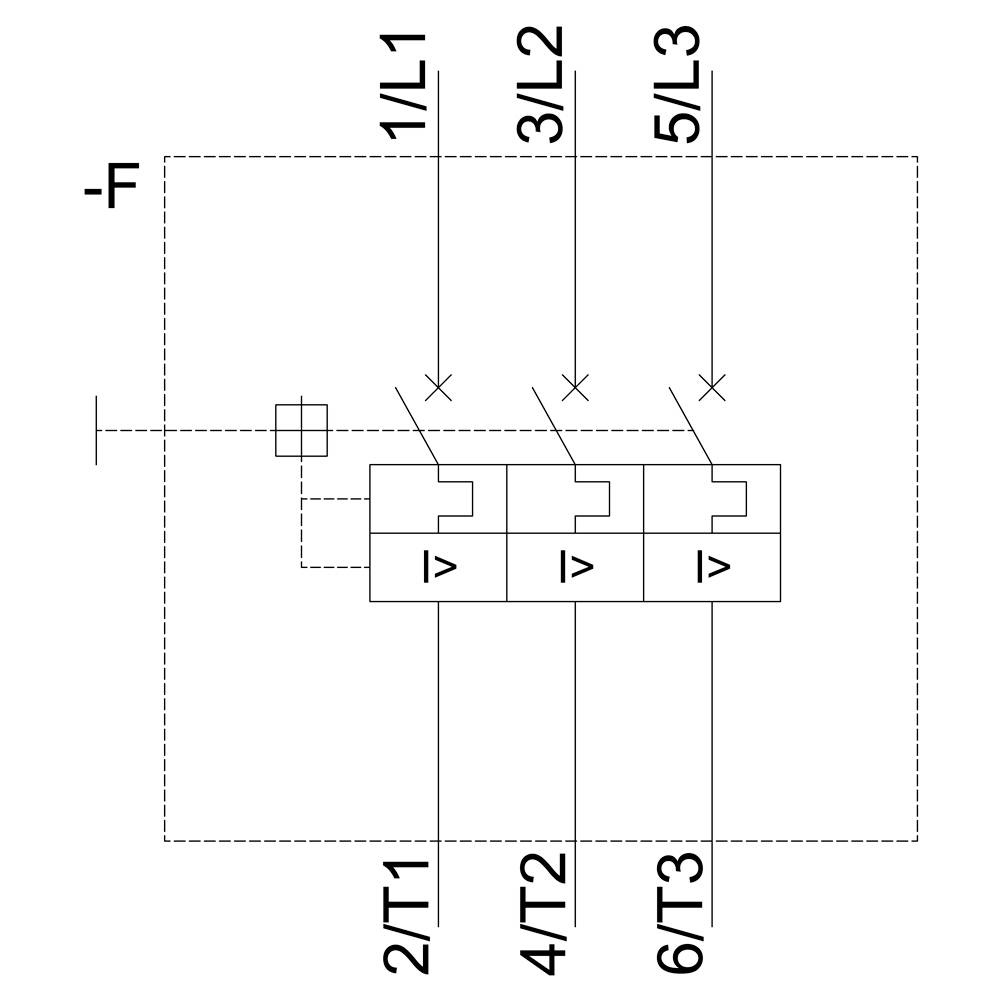

Circuit diagram of a three-phase main current circuit with three power circuit breakers (1/L1, 3/L2, 5/L3) and outputs (2/T1, 4/T2, 6/T3).

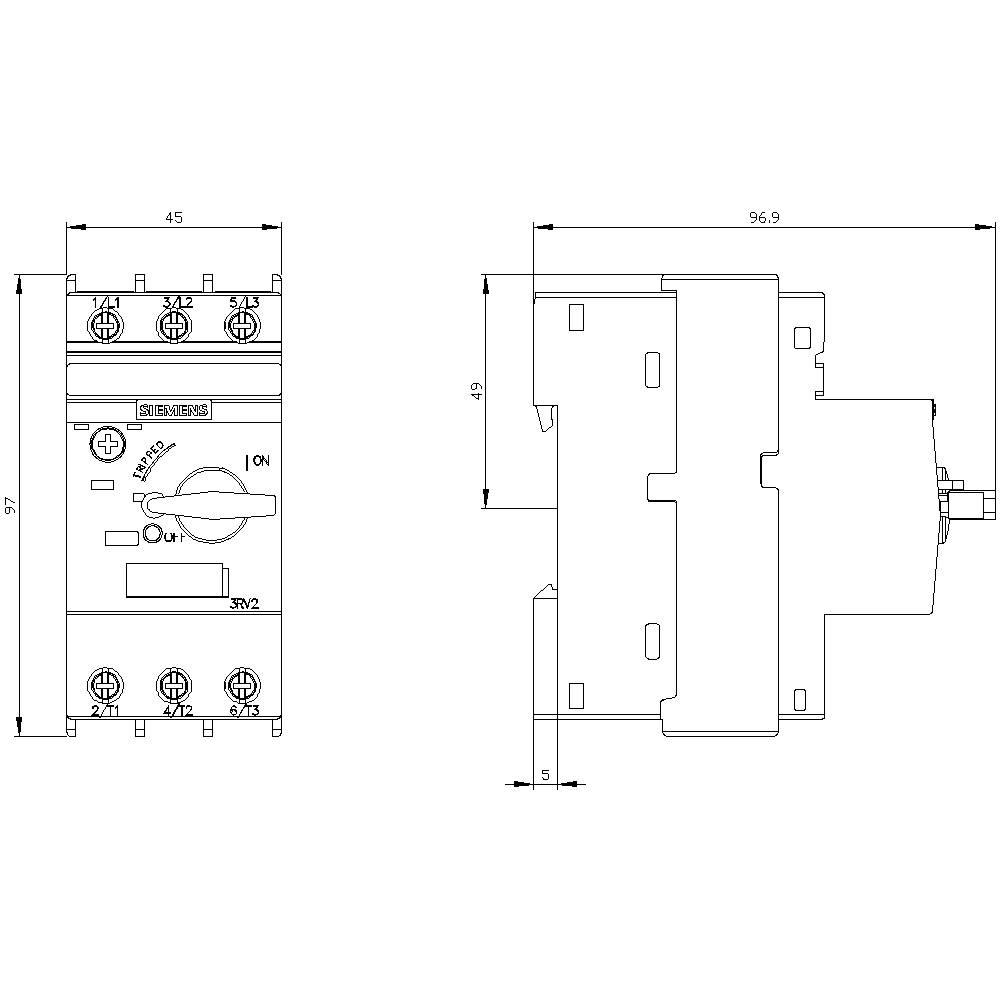

Circuit diagram of an electrical device with dimensions. Front and side view, measurements in millimetres.

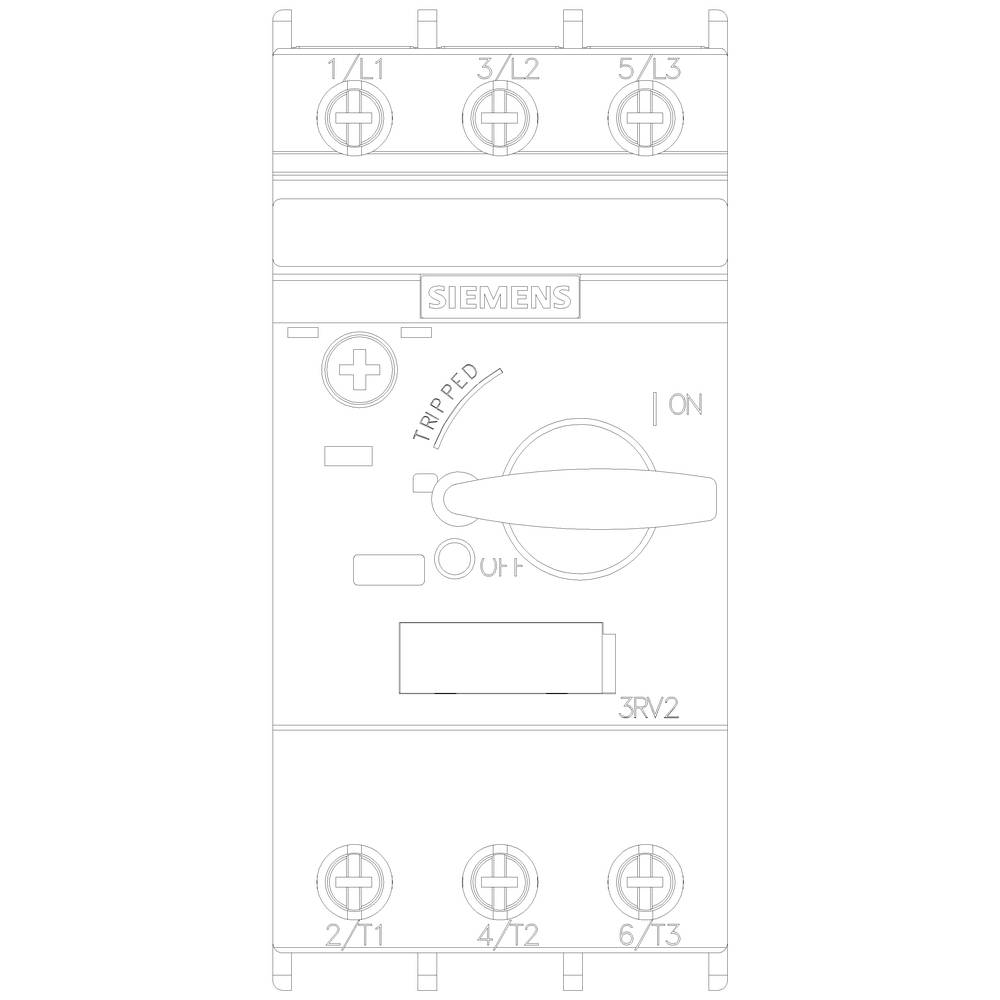

A Siemens circuit breaker. The switch is in the 'ON' position. Labels indicate connections and operating mode.

1/6

Image similar

Product type

Circuit breaker

Connection

Screws

Factory colour

Multicolour

Min. temperature

-20 °C

Max. temperature

+60 °C

Datasheet (PDF)

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 3.2 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Product type: Circuit breaker

Connection: Screws

Factory colour: Multicolour

Min. temperature: -20 °C

Max. temperature: +60 °C

: IP20

Width: 45 mm

Height: 97 mm

Content: 1 pc(s)

Type: 3RV2021-1DA10

Dim: (W x H x D) 45 x 97 x 97 mm

RoHS-compliant: Yes

Depth: 97 mm

Type: S0

Mounting type: Snap-in
Screw-fit

No. of pins: 3-pin

Amperage adjustment range (max.): 3.2 A

Amperage adjustment range (min.): 2.2 A

Switching voltage (max.): 690 V AC

: 45

: 97 mm

: 97 mm

: 1.1 kW

: FALSE

: 3.2 A

: FALSE

: 3

: 690-690 V

: 2.2-3.2 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0.6 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
