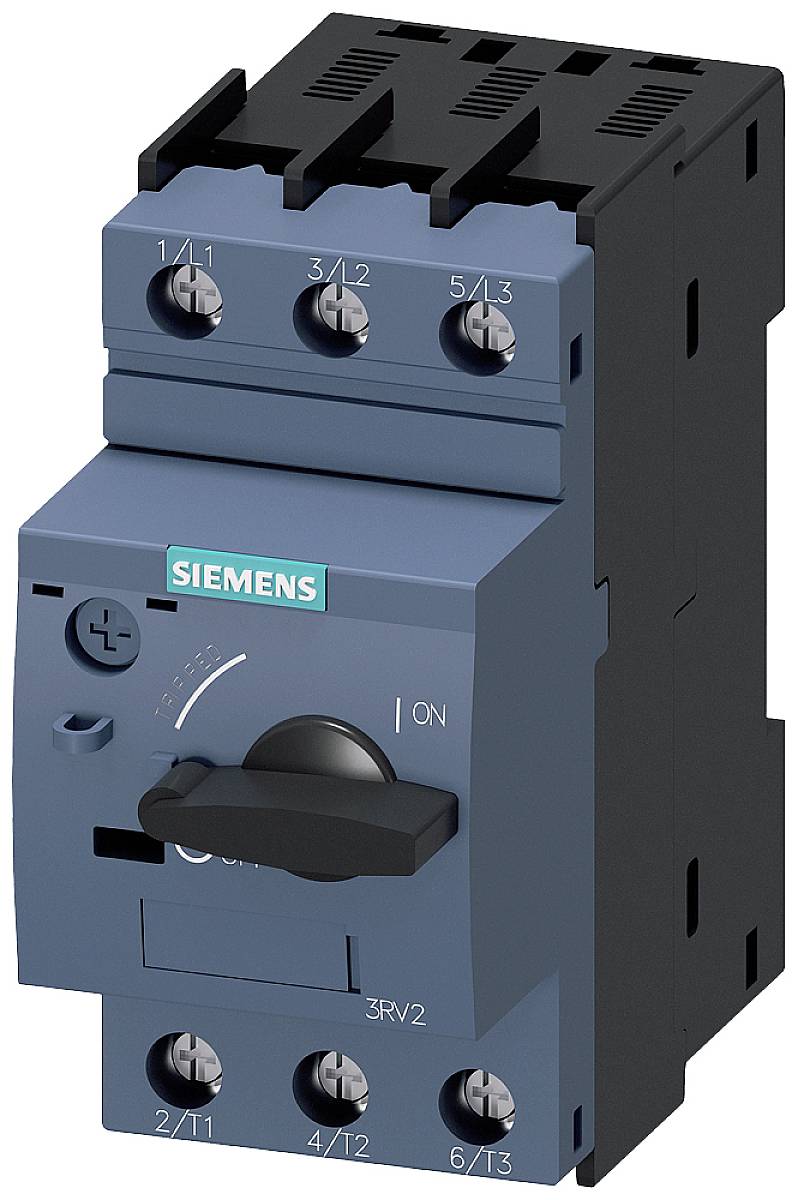

Name: Siemens 3RV2021-1KA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 9 - 12.5 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1745982
Availability: InStock

An open electrical cabinet with electronic components on the left. To the right, a rainy window with a blurred view of machinery.

'Mounting Accessories Diagram for Circuit Breakers.' The illustration shows various components, such as Transverse Auxiliary Switch and Signalling Switch, with connections between them.

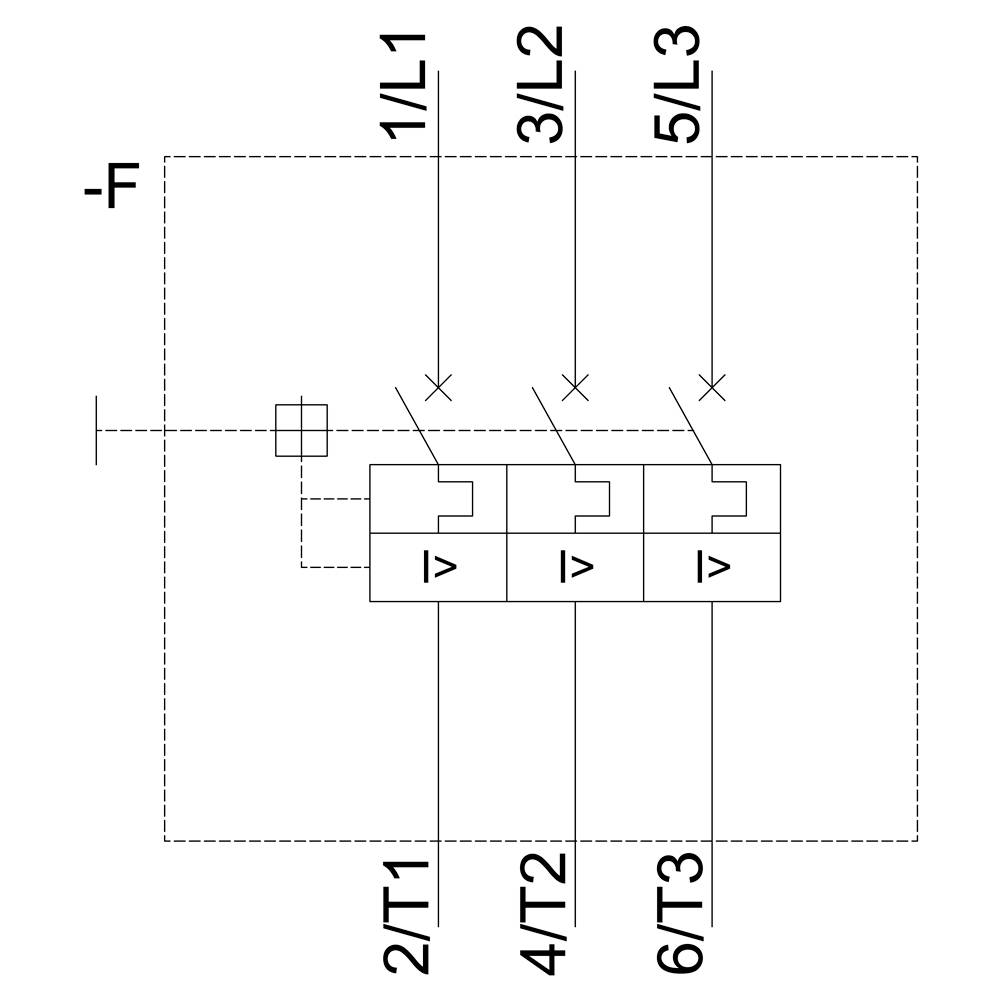

Circuit diagram of a three-pole power circuit breaker. Shows phases 1/L1, 3/L2, 5/L3 and outputs 2/T1, 4/T2, 6/T3.

Circuit diagram of the ABB fuse-load disconnector with dimensions: width 45 mm, height 97 mm, depth 96.9 mm. Shows the front and side view.

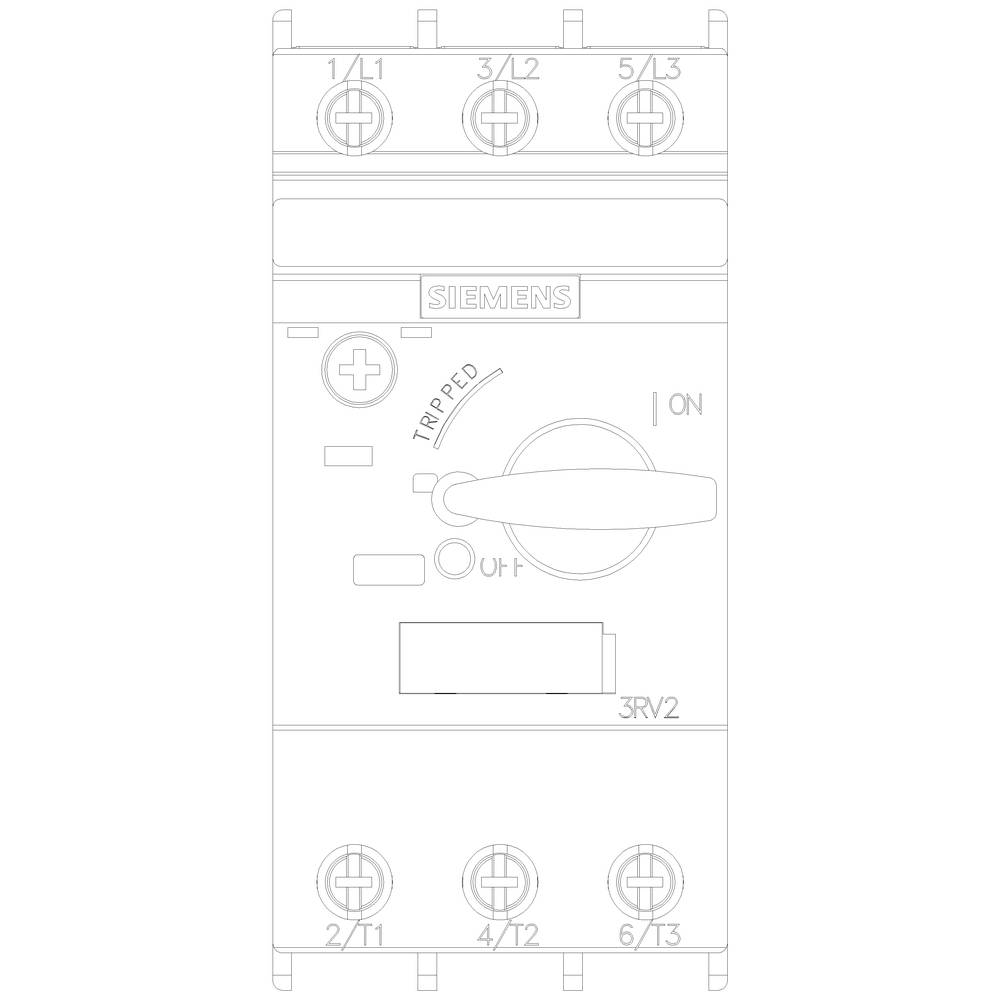

A Siemens switch with labels for 'On', 'Tripped', 'Off'. Six terminal screws at the top and bottom, numbered from 1/2 to 6/13.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

12.5 A

Connection

Screws

Packaging type

Piece

Type

3RV2021-1KA10

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 12.5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2021-1KA10

Type: S0

Amperage adjustment range (min.): 9 A

Amperage adjustment range (max.): 12.5 A

Adjustment range (amperage): 9 - 12.5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Factory colour: Multicolour

: 45

: 97 mm

: 97 mm

: 5.5 kW

: FALSE

: 12.5 A

: FALSE

: 3

: 690-690 V

: 9-12.5 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 3 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
